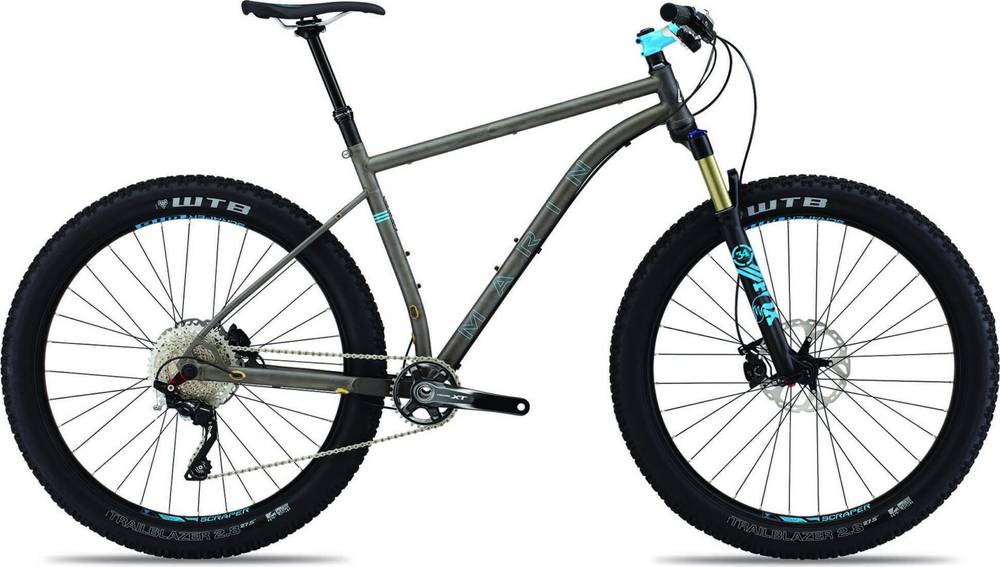

Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Steel -
Wheels 27.5" -
Fork Fox Float 34 -
Groupset XT -
Suspension Hardtail -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Columbus Thron Butted and Formed CrMo, 27.5+ Wheels, Boost 148x12mm Naild Locking Thru-Axle Dropouts
Suspension Fork
Fox Float 34 27.5+, 3 Position Lever, 110x15mm Thru-Axle
Drivetrain
Rear Derailleur
Shimano Deore XT Shadow Plus
Shift Levers
Shimano Deore XT 1x11-Speed
Cassette
Shimano Deore XT 11-Speed, 11-42T
Crank
Shimano Deore XT Hollowtech II, 32T
Bottom Bracket
Shimano Hollowtech II
Chain
KMC X11L
Wheels
Front Hub
Formula, 110x15mm, Sealed Cartridge Bearing, Centerlock Disc 28H
Rear Hub
Formula, 148x12mm, Alloy Axle, Quad Cartridge Sealed Bearing, Centerlock Disc, 32H
Rims
WTB Scraper, 45mm Inner, Tubeless Ready
Tires
WTB Trail Blazer, 27.5x2.8
Brakes
Brakes
Shimano SLX Hydraulic Disc, 180mm Rotor
Brake Levers
Shimano SLX Hydraulic
Cockpit
Stem
Marin 3D Forged Alloy
Handlebar
Marin Flat Top Riser
Grips
Marin Locking
Headset
FSA Orbit, Sealed Cartridge Bearing, 1 1/8
Seat
Saddle
WTB SLC XC
Seatpost
KS LEV Integra, 30.9mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.54 mm | 1.44 mm | 1.35 mm | 1.35 mm | 1.39 mm |
| Bottom Bracket Height | 311 mm | 311 mm | 311 mm | 311 mm | 311 mm |
| Front Center | 637 mm | 665 mm | 710 mm | 721 mm | 730 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 104 mm | 104 mm | 82 mm | 94 mm | 105 mm |
| Stack | 600 mm | 600 mm | 596 mm | 619 mm | 647 mm |
| Reach | 390 mm | 418 mm | 443 mm | 457 mm | 467 mm |
| Top Tube Length | 568 mm | 596 mm | 619 mm | 642 mm | 662 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 381 mm | 431 mm | 482 mm | 520 mm | 559 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 110 mm | 110 mm | 115 mm | 130 mm | 160 mm |
| Chainstay Length | 435 mm | 435 mm | 435 mm | 435 mm | 435 mm |
| Wheelbase | 1066 mm | 1094 mm | 1139 mm | 1150 mm | 1159 mm |
| Bottom Bracket Drop | 55 mm | 55 mm | 55 mm | 55 mm | 55 mm |
| Standover Height | 704 mm | 746 mm | 776 mm | 817 mm | 858 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" |
Model Overview
Pine Mountain 2 belongs to the Marin Pine model. Marin launched 21 bikes of this model so far. Take a sneak peek at all Marin Pine bikes models from 2016, by clicking here.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Crosscountry bikes average price
According to our math, the average price for a trustworthy Crosscountry bike is 1905$. However, you could also get a good Crosscountry bike even if you pay a lower amount than the average price. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Pine Mountain 2 components
Fork
The Pine Mountain 2 comes factory-installed with the Fox Float 34 fork. This has a travel range of mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels
When leaving the production line, the Pine Mountain 2 model has 27.5″ aluminum wheels. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
For your safety, it is important to have quality breaks on your bike. Marin Pine Mountain 2 has Hydraulic Disc brakes installed. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Dropper post
The Marin model is also equipped with a dropper post. Therefore, climbing or descending will be a breeze.
