Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Steel -
Wheels 27.5" -
Travel Front 120mm -
Fork RockShox Pike RC
-
Groupset XT -
Suspension Hardtail -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Columbus Thron Butted and Formed CrMo, 27.5+ Wheels, Boost 148x12mm, Naild 12-3-9 Locking Quick Release Thru-Axle
Suspension Fork
RockShox Pike RC 27.5+, 120mm Travel, Compression and Rebound Adjustment, Solo Air Spring, 110x15mm Boost Spacing, Maxle Stealth, 51mm Offset
Drivetrain
Rear Derailleur
Shimano Deore XT Shadow Plus 11-Speed
Front Derailleur
- - -
Shift Levers
Shimano Deore XT 1x11-Speed
Cassette
Shimano Deore XT 11-Speed, 11-46T
Crank
Shimano Deore XT Hollowtech II, 32T, Boost Spacing
Bottom Bracket
Shimano Hollowtech II
Chain
KMC X11L
Pedals
- - -
Wheels
Front Hub
Formula, 110x15mm, Sealed Cartridge Bearings, Centerlock Disc 32H
Rear Hub
Formula, 148x12mm, Alloy Axle, Quad Sealed Cartridge Bearings, Centerlock Disc, 32H
Rims
WTB i40 Scraper, 40mm Inner, TCS Technology, Tubeless Compatible
Spokes
14g Black Stainless Steel
Tires
WTB Ranger TCS Fast / Light, 27.5x2.8", Tubeless Compatible, Folding Bead
Brakes
Brakes
Shimano XT Hydraulic Disc, 180mm Rotor
Brake Levers
Shimano XT Hydraulic
Cockpit
Stem
Marin 3D Forged Alloy, 60mm
Handlebar
Marin Mini-Riser, 6061 Double Butted Aluminum, 15mm Rise, 780mm Width, 4º Up, 9º Back
Grips
Marin Locking
Headset
FSA Orbit CE, Sealed Cartridge Bearings, 1 1/8" x 1 1/2”
Seat
Saddle
WTB Volt Race
Seatpost
KS Lev Integra, Southpaw Lever, Size S 100mm Travel, All Other Sizes: 125mm Travel
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.6 mm | 1.49 mm | 1.43 mm | 1.41 mm | 1.44 mm |
| Bottom Bracket Height | 311 mm | 311 mm | 311 mm | 311 mm | 311 mm |
| Front Center | 660 mm | 687 mm | 711 mm | 734 mm | 754 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 82 mm | 82 mm | 82 mm | 82 mm | 82 mm |
| Stack | 628.1 mm | 628.1 mm | 632.8 mm | 646.8 mm | 674.8 mm |
| Reach | 392.3 mm | 420.3 mm | 441.6 mm | 459.5 mm | 469.4 mm |
| Top Tube Length | 577 mm | 605 mm | 628 mm | 651 mm | 671 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 390 mm | 440 mm | 482 mm | 525 mm | 570 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 110 mm | 110 mm | 115 mm | 130 mm | 160 mm |
| Chainstay Length | 444 mm | 444 mm | 444 mm | 444 mm | 444 mm |
| Wheelbase | 1097 mm | 1125 mm | 1148 mm | 1172 mm | 1192 mm |
| Bottom Bracket Drop | 55 mm | 55 mm | 55 mm | 55 mm | 55 mm |
| Standover Height | 713 mm | 755 mm | 785 mm | 826 mm | 867 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" |

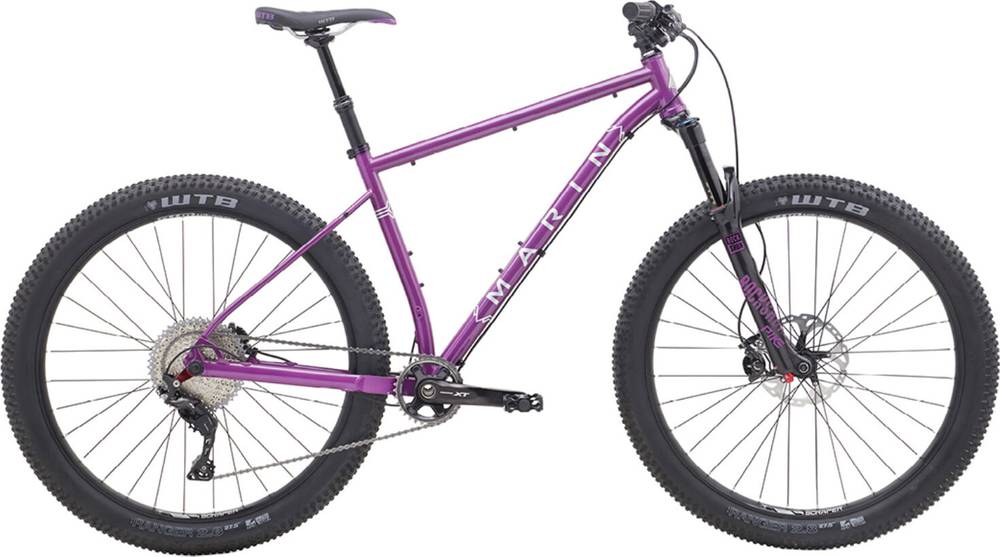

Model Overview
Pine Mountain 2 is part of the Marin Pine model. There are 21 bikes that carry this model name. You can get a glimpse at all models from 2018, by clicking on this link.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Trail bikes average price
If you want to purchase a solid Trail bike, it is important to know that the average cost is 2762$. However, even if your budget is less than the average, you might still be able to get a top-quality Trail bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Overview of components
Fork
The RockShox Pike RC is included from the factory. It has a travel distance of 120mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels size
When leaving the production line, the Pine Mountain 2 model has 27.5″ aluminum wheels. These wheels will provide you with more control over the bike. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Pine Mountain 2 comes with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
Dropper post
A dropper post is included with the Pine Mountain 2. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
