Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Steel -
Wheels 29" -
Travel Front 120mm -
Fork RockShox 35 Gold RL
-
Groupset SLX, FSA -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
160cm - 169cm
MD
166cm - 177cm
LG
174cm - 184cm
XL
181cm - 190cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Series 3 Double Butted and Heat Treated CrMo, 29" Wheels, Custom Cast Boost 148x12mm Dropouts, 148x12mm Thru-Axle, 73mm Threaded BB, Plentiful Gear Mounts
Suspension Fork
RockShox FS 35, 120mm Travel, DebonAir, Alloy Tapered Steerer, 110x15mm Boost Spacing, Maxle Lite, 44mm Offset
Drivetrain
Rear Derailleur
Shimano SLX 12-Speed
Front Derailleur
-
Shift Levers
Shimano SLX 12-Speed
Cassette
Shimano SLX M7100 Cassette, 12-Speed, 10-51T
Crank
FSA Grid, Modular 1x, 32T Direct Mount MegaTooth Chainring
Bottom Bracket
FSA Outboard Cartridge Bearings
Chain
KMC X12
Pedals
Nylon Platform
Wheels
Front Hub
Forged Alloy, 110x15mm, Sealed Cartridge Bearings, Centerlock Disc, 32H
Rear Hub
Shimano, Microspline 148x12mm, Centerlock Disc, 32H
Rims
Alloy Double-Wall, Offset Spoke, 32mm ID, Tubeless Compatible
Tires
Vee Tire Flow Snap, 29x2.6", Folding Bead, Tubeless Ready
Brakes
Brake Levers
Shimano MT500 Hydraulic
Cockpit
Stem
Marin 3D Forged Alloy, 35mm
Handlebar
Marin Bedroll Bar, 50mm Rise, 780 Width, 10? Backsweep, 6? Upsweep
Grips
Marin BearPaw Locking
Headset
FSA Orbit ITA, Sealed Cartridge Bearings, 1 1/8" x 1 1/2”
Seat
Saddle
Marin Pine Mountain Trail
Seatpost
TranzX Dropper Post, YSP23 w/ 1x Remote, Size S 150mm Travel, All Other Sizes: 170mm Travel, 30.9mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.53 mm | 1.47 mm | 1.4 mm | 1.33 mm |
| Bottom Bracket Height | 315 mm | 315 mm | 315 mm | 315 mm |
| Front Center | 714 mm | 736 mm | 763 mm | 797 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 107 mm | 107 mm | 107 mm | 107 mm |
| Stack | 624 mm | 628.6 mm | 633.2 mm | 642 mm |
| Reach | 408 mm | 428 mm | 453 mm | 483 mm |
| Top Tube Length | 570 mm | 591 mm | 617.3 mm | 649.6 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74.5 ° | 74.5 ° |
| Seat Tube Length | 381 mm | 431 mm | 482 mm | 520 mm |
| Head Tube Angle | 66.5 ° | 66.5 ° | 66.5 ° | 66.5 ° |
| Head Tube Length | 95 mm | 100 mm | 105 mm | 115 mm |
| Chainstay Length | 428 mm | 428 mm | 428 mm | 428 mm |
| Wheelbase | 1135 mm | 1157 mm | 1184 mm | 1218 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm |
| Standover Height | 692 mm | 738 mm | 782 mm | 815 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 160 cm | 166 cm | 174 cm | 181 cm |
| Rider Max Height | 169 cm | 177 cm | 184 cm | 190 cm |
About this model

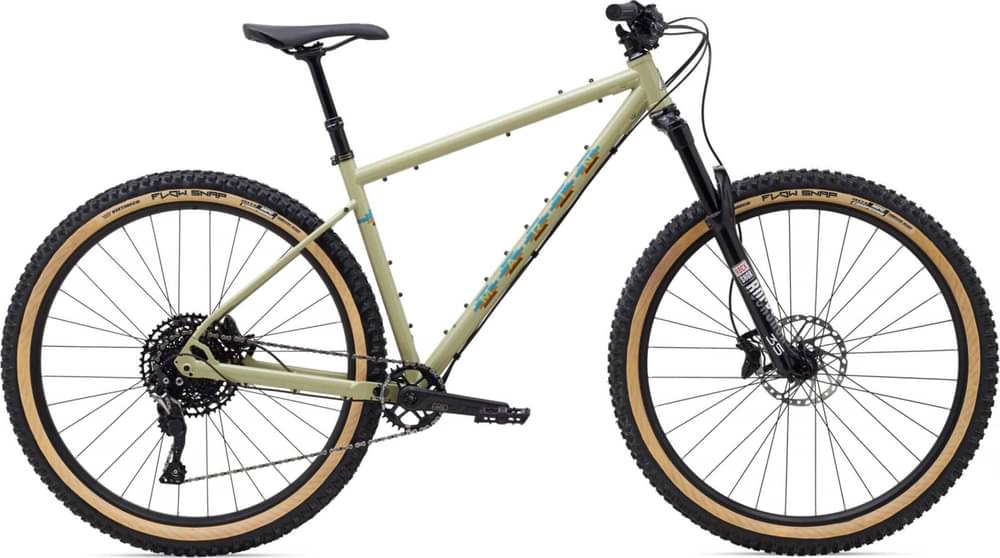

Pine Mountain 2 completes the Marin Pine model. There are 21 bikes that carry this model name. You can easily view all of the Marin Pine bikes models from 2021, here.
Model range prices
The most economical model, the Marin Pine Mountain 1 2021 has a starting price of 1449$. Marin Pine Mountain 2 2021 on the other hand is the most expensive at 2369$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Trail bikes average price
If you want an acceptable Trail bike you should know that the average price is 2762$. However, even though the average price of a Trail bike is lower, you might still be able to get a top-quality bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
At the moment of the release date, Marin Pine Mountain 2 price was 2369$. In conclusion, this bike price is 16.59% lower than the price of the average Trail bike.
Pine Mountain 2 components
Fork
The fork installed on this bike is the RockShox 35 Gold RL model. The travel on this model is 120mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Fork material
The fork on this bike is made out of aluminum, so there won’t be much extra weight added to the bike. However, they are not so stiff as carbon forks are.
Wheels
As for the wheels, Marin Pine Mountain 2 2021, has a 29″ aluminum model. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
Nothing is more important on a bike than its ability to brake properly. Marin Pine Mountain 2 is equipped with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Sizes
Pine Mountain 2 comes in 4 sizes, that range from 160 cm – 190 cm (5.25 ft – 6.23 ft). In conclusion, you won’t have a problem finding one that suits you.
Dropper post
Marin Pine Mountain 2 includes a dropper post. Therefore, climbing or descending will be a breeze.
