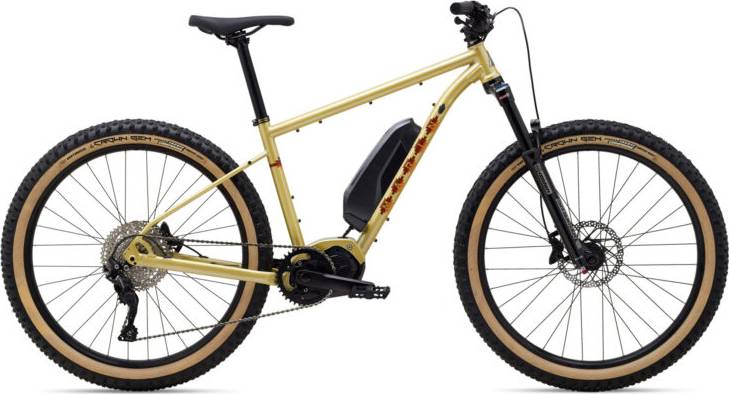

Marin Pine Mountain E1 2020
2020 E-bike
Estimate price |
3,359$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Steel -
Wheels 27.5" -
Travel Front 120mm -
Fork SunTour RAIDON
-
Groupset Deore -
Suspension Hardtail -
Motor Shimano 250W 60Nm mid-drive -
Battery Shimano E8010, 418Wh -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
162cm - 172cm
MD
169cm - 179cm
LG
176cm - 184cm
XL
181cm - 188cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Series 3 Double Butted & Heat Treated CrMo, 27.5+ Wheels, Cast Motor Mount, Custom Cast Boost 148x12mm Dropouts, 148x12mm Thru-Axle, 73mm Threaded BB, Plentiful Gear Mounts
Suspension Fork
SR Suntour Raidon Boost, 120mm Travel, Air Spring w/ Adjustable Damping, 15x110 Thru-Bolt, 44mm Offset
Drivetrain
Rear Derailleur
Shimano Deore Shadow Plus SGS 10-Speed
Front Derailleur
-
Shift Levers
Shimano Deore 1x10-Speed
Cassette
SunRace 10-Speed, 11-46T
Crank
Marin Forged Alloy, Steel Narrow-Wide 38T Chainring
Bottom Bracket
External Sealed Cartridge Bearings
Chain
KMC X10E
Pedals
Nylon Platform
Wheels
Front Hub
Forged Alloy, 110x15mm, Centerlock Disc, 32H
Rear Hub
Forged Alloy, 148x12mm, Centerlock Disc, 32H
Rims
Marin Aluminum Double Wall, 38mm Inner, Disc Specific, Tubeless Compatible
Spokes
14g Black Stainless Steel
Tires
Vee Tire Crown Gem, 27.5x2.8", Synthesis Sidewall, Tubeles Compatible
Brakes
Brakes
Shimano MT420, 4-Piston, Hydraulic Disc, 180mm Rotor
Brake Levers
Shimano MT400 Hydraulic
Cockpit
Stem
Marin 3D Forged Alloy, 35mm
Handlebar
Marin Pine Mountain Trail Bar, 50mm Rise, 780 Width, 10? Backsweep, 6? Upsweep
Grips
Marin BearPaw Locking
Headset
FSA Orbit, NO.42/ACB. C-40-ACB, Sealed Cartridge Bearings, 1 1/8" x 1 1/2”
Seat
Saddle
Marin Pine Mountain Trail
Seatpost
Marin Alloy, 30.9mm
Motor & Battery
Motor
Shimano STEPS E7000 System
Battery
Shimano E8010, 418Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.43 mm | 1.33 mm | 1.27 mm | 1.21 mm |
| Bottom Bracket Height | 315 mm | 315 mm | 315 mm | 315 mm |
| Front Center | 715 mm | 745 mm | 772 mm | 806 mm |
| Rake | 46 mm | 46 mm | 46 mm | 46 mm |
| Trail | 108 mm | 108 mm | 108 mm | 108 mm |
| Stack | 597.4 mm | 597.4 mm | 602 mm | 611.1 mm |
| Reach | 418 mm | 448 mm | 473 mm | 503 mm |
| Top Tube Length | 578.6 mm | 608.6 mm | 634.8 mm | 667.3 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 381 mm | 431 mm | 482 mm | 520 mm |
| Head Tube Angle | 66 ° | 66 ° | 66 ° | 66 ° |
| Head Tube Length | 100 mm | 100 mm | 105 mm | 115 mm |
| Chainstay Length | 448 mm | 448 mm | 448 mm | 448 mm |
| Wheelbase | 1157 mm | 1187 mm | 1214 mm | 1248 mm |
| Bottom Bracket Drop | 55 mm | 55 mm | 55 mm | 55 mm |
| Standover Height | 761 mm | 791 mm | 822 mm | 846 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 162 cm | 169 cm | 176 cm | 181 cm |
| Rider Max Height | 172 cm | 179 cm | 184 cm | 188 cm |
About this model
Pine Mountain E1 is part of the Marin E Pine model. Marin launched 6 e-bikes of this model so far. Take a sneak peek at all Marin E Pine e-bikes models from 2020, by clicking here.
Model range prices
Marin Pine Mountain E1 2020 is the cheapest e-bike model and costs 3359$. Marin Pine Mountain E2 2020 is the most expensive one and costs 4199$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Trail e-bikes average price
Our math shows that the average cost of a dependable Trail e-bike is 3365$. However, even if your budget is less than the average, you might still be able to get a top-quality Trail e-bike. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
At the moment of the release date, Marin Pine Mountain E1 price was 3359$. If we compare this with the average Trail e-bike cost we notice that the price is 0.18% lower.
Overview of components
Fork
The fork installed on this bike is the SunTour RAIDON model. The travel on this model is 120mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels size
The wheels on Pine Mountain E1 are the 27.5″ aluminum type. These wheels will provide you with more control over the e-bike. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
Nothing is more important on a bike than its ability to brake properly. Marin Pine Mountain E1 is equipped with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Sizes
Pine Mountain E1 comes in 4 sizes, that range from 162 cm – 188 cm (5.31 ft – 6.17 ft). In conclusion, you won’t have a problem finding one that suits you.
