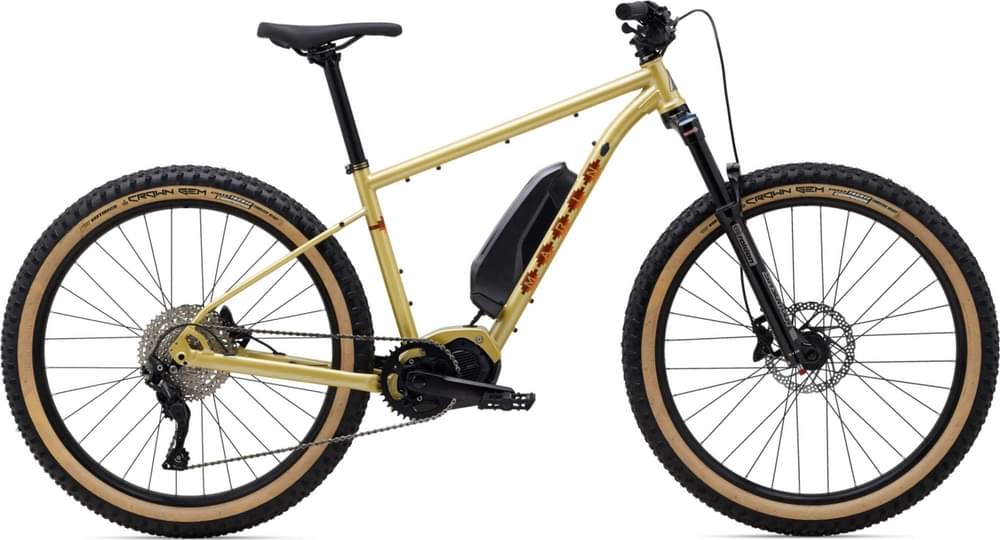

Marin Pine Mountain E1 2021
2021 E-bike
Estimate price |
3,359$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Steel -
Wheels 27.5" -
Travel Front 120mm -
Fork SunTour RAIDON
-
Groupset Deore -
Suspension Hardtail -
Motor Shimano 250W 60Nm mid-drive -
Battery Shimano E8010, 418Wh -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
160cm - 169cm
MD
166cm - 177cm
LG
174cm - 184cm
XL
181cm - 190cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Series 3 Double Butted and Heat Treated CrMo, 27.5+ Wheels, Cast Motor Mount, Custom Cast Boost 148x12mm Dropouts, 148x12mm Thru-Axle, 73mm Threaded BB, Plentiful Gear Mounts
Suspension Fork
SR Suntour Raidon Boost, 120mm Travel, Air Spring w/ Adjustable Damping, 15x110 Thru-Bolt, 44mm Offset
Drivetrain
Rear Derailleur
Shimano Deore Shadow Plus SGS 10-Speed
Front Derailleur
-
Shift Levers
Shimano Deore 11-Speed
Cassette
SunRace 10-Speed, 11-46T
Crank
Marin Forged Alloy, Steel Narrow Wide 38T Chainring
Bottom Bracket
External Sealed Cartridge Bearings
Chain
KMC X10E
Pedals
Nylon Platform
Wheels
Front Hub
Forged Alloy, 110x15mm, 32H
Rear Hub
Forged Alloy, 148x12mm, 32H
Rims
Marin Aluminum Double Wall, 38mm Inner, Disc Specific, Tubeless Compatible
Tires
Vee Tire Crown Gem, 27.5x2.8", Synthesis Sidewall, Tubeless Compatible
Brakes
Brake Levers
Shimano MT400 Hydraulic
Cockpit
Stem
Marin 3D Forged Alloy, 35mm
Handlebar
Marin Bedroll Bar, 50mm Rise, 780 Width, 10? Backsweep, 6? Upsweep
Grips
Marin BearPaw Locking
Headset
FSA Orbit, NO.42/ACB. C-40-ACB, Sealed Cartridge Bearings, 1 1/8" x 1 1/2”
Seat
Saddle
Marin Pine Mountain Trail
Seatpost
Marin Alloy, 30.9mm
Motor & Battery
Motor
Shimano STEPS E7000 System
Battery
Shimano E8010, 418Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.43 mm | 1.33 mm | 1.27 mm | 1.21 mm |
| Bottom Bracket Height | 315 mm | 315 mm | 315 mm | 315 mm |
| Front Center | 715 mm | 745 mm | 772 mm | 806 mm |
| Rake | 46 mm | 46 mm | 46 mm | 46 mm |
| Trail | 108 mm | 108 mm | 108 mm | 108 mm |
| Stack | 597.4 mm | 597.4 mm | 602 mm | 611.1 mm |
| Reach | 418 mm | 448 mm | 473 mm | 503 mm |
| Top Tube Length | 578.6 mm | 608.6 mm | 634.8 mm | 667.3 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 381 mm | 431 mm | 482 mm | 520 mm |
| Head Tube Angle | 66 ° | 66 ° | 66 ° | 66 ° |
| Head Tube Length | 100 mm | 100 mm | 105 mm | 115 mm |
| Chainstay Length | 448 mm | 448 mm | 448 mm | 448 mm |
| Wheelbase | 1157 mm | 1187 mm | 1214 mm | 1248 mm |
| Bottom Bracket Drop | 55 mm | 55 mm | 55 mm | 55 mm |
| Standover Height | 761 mm | 791 mm | 822 mm | 846 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 160 cm | 166 cm | 174 cm | 181 cm |
| Rider Max Height | 169 cm | 177 cm | 184 cm | 190 cm |
About this model
Pine Mountain E1 belongs to the Marin E Pine model. There are 6 e-bikes that carry this model name. Check out the entire range from 2021 of this model, by clicking this link.
Model range prices
The most economical model, the Marin Pine Mountain E1 2021 has a starting price of 3359$. Marin Pine Mountain E2 2021 on the other hand is the most expensive at 4199$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Trail e-bikes average price
Our math shows that the average cost of a dependable Trail e-bike is 3365$. However, you could also get a good Trail e-bike even if you pay a lower amount than the average price. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
Furthermore, this bike was made available in 2021 for 3359$. If we compare this with the average Trail e-bike cost we notice that the price is 0.18% lower.
Pine Mountain E1 components
Fork
The fork installed on this bike is the SunTour RAIDON model. The travel on this model is 120mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels
As for the wheels, Marin Pine Mountain E1 2021, has a 27.5″ aluminum model. The 27.5″ wheels are a great choice for smaller riders. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
When you want to stop the bike in time, the brakes are vital. The Pine Mountain E1 has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
Pine Mountain E1 comes in 4 sizes, that range from 160 cm – 190 cm (5.25 ft – 6.23 ft). In conclusion, finding one for you shouldn’t be a problem.
