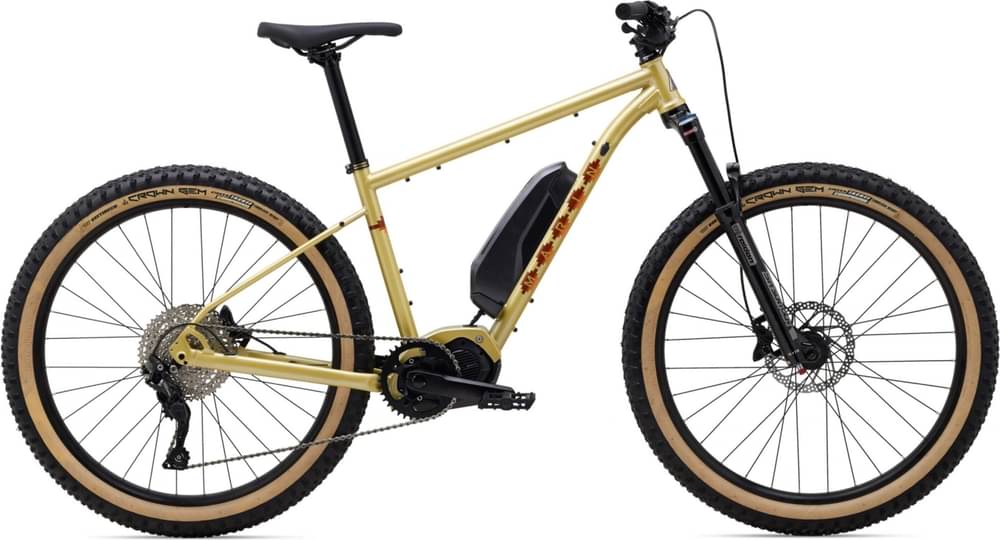

Marin Pine Mountain E1 2022
2022 E-bike
Estimate price |
3,359$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Steel -
Wheels 27.5" -
Travel Front 120mm -
Fork SunTour RAIDON
-
Groupset Deore -
Suspension Hardtail -
Motor Shimano 250W 60Nm mid-drive -
Battery Shimano E8010, 418Wh -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
160cm - 169cm
MD
166cm - 177cm
LG
174cm - 184cm
XL
181cm - 190cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Series 3 Double Butted and Heat Treated CrMo, 27.5+ Wheels, Cast Motor Mount, Custom Cast Boost 148x12mm Dropouts, 148x12mm Thru-Axle, 73mm Threaded BB, Plentiful Gear Mounts
Suspension Fork
SR Suntour Raidon Boost, 120mm Travel, Air Spring w/ Adjustable Damping, 15x110 Thru-Bolt, 44mm Offset
Drivetrain
Rear Derailleur
Shimano Deore Shadow Plus SGS 10-Speed
Front Derailleur
-
Shift Levers
Shimano Deore 11-Speed
Cassette
SunRace 10-Speed, 11-46T
Crank
Marin Forged Alloy, Steel Narrow Wide 38T Chainring
Bottom Bracket
External Sealed Cartridge Bearings
Chain
KMC X10E
Pedals
Nylon Platform
Wheels
Front Hub
Forged Alloy, 110x15mm, 32H
Rear Hub
Forged Alloy, 148x12mm, 32H
Rims
Marin Aluminum Double Wall, 38mm Inner, Disc Specific, Tubeless Compatible
Tires
Vee Tire Crown Gem, 27.5x2.8", Synthesis Sidewall, Tubeless Compatible
Brakes
Brake Levers
Shimano MT400 Hydraulic
Cockpit
Stem
Marin 3D Forged Alloy, 35mm
Handlebar
Marin Bedroll Bar, 50mm Rise, 780 Width, 10? Backsweep, 6? Upsweep
Grips
Marin BearPaw Locking
Headset
FSA Orbit, NO.42/ACB. C-40-ACB, Sealed Cartridge Bearings, 1 1/8" x 1 1/2”
Seat
Saddle
Marin Pine Mountain Trail
Seatpost
Marin Alloy, 30.9mm
Motor & Battery
Motor
Shimano STEPS E7000 System
Battery
Shimano E8010, 418Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.43 mm | 1.33 mm | 1.27 mm | 1.21 mm |
| Bottom Bracket Height | 315 mm | 315 mm | 315 mm | 315 mm |
| Front Center | 715 mm | 745 mm | 772 mm | 806 mm |
| Rake | 46 mm | 46 mm | 46 mm | 46 mm |
| Trail | 108 mm | 108 mm | 108 mm | 108 mm |
| Stack | 597.4 mm | 597.4 mm | 602 mm | 611.1 mm |
| Reach | 418 mm | 448 mm | 473 mm | 503 mm |
| Top Tube Length | 578.6 mm | 608.6 mm | 634.8 mm | 667.3 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 381 mm | 431 mm | 482 mm | 520 mm |
| Head Tube Angle | 66 ° | 66 ° | 66 ° | 66 ° |
| Head Tube Length | 100 mm | 100 mm | 105 mm | 115 mm |
| Chainstay Length | 448 mm | 448 mm | 448 mm | 448 mm |
| Wheelbase | 1157 mm | 1187 mm | 1214 mm | 1248 mm |
| Bottom Bracket Drop | 55 mm | 55 mm | 55 mm | 55 mm |
| Standover Height | 761 mm | 791 mm | 822 mm | 846 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 160 cm | 166 cm | 174 cm | 181 cm |
| Rider Max Height | 169 cm | 177 cm | 184 cm | 190 cm |
Model Overview
Pine Mountain E1 completes the Marin E Pine model. 6 e-bikes variations carry this model name so far. Check out the entire range from 2022 of this model, by clicking this link.
Model range prices
Marin Pine Mountain E1 2022 is the most affordable e-bike of this model and has a price of 3359$. On the other hand, Marin Pine Mountain E2 2022, is the most expensive and costs 4199$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Trail e-bikes average price
According to our math, the average price for a trustworthy Trail e-bike is 3365$. However, you could also get a good Trail e-bike even if you pay a lower amount than the average price. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 3359$. If we compare this with the average Trail e-bike cost we notice that the price is 0.18% lower.
Pine Mountain E1 components
Fork
The fork installed on this bike is the SunTour RAIDON model. The travel on this model is 120mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels size
When it comes to wheels, the Pine Mountain E1 e-bike is equipped with the 27.5″ aluminum model. These wheels will provide you with more control over the e-bike. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
Nothing is more important on a bike than its ability to brake properly. Marin Pine Mountain E1 is equipped with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Sizes
This e-bike is available in 4 sizes. They vary from 160 cm – 190 cm (5.25 ft – 6.23 ft). In short, it won’t be difficult to find the right one for you.
