Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 700c -
Groupset Altus, microSHIFT -
Suspension Rigid -
Drivetrain 1 × 8 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
149cm - 156cm
SM
153cm - 167cm
MD
164cm - 177cm
LG
174cm - 187cm
XL
184cm - 190cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Series 1 Fitness, 6061 Aluminum, 700C Wheels, Disc Brake, Internal Cable Routing, Fender and Rack Mounts
Suspension Fork
Cr-Mo Steel, Straight Blade, Disc Mount, Fender and Rack Eyelets
Drivetrain
Rear Derailleur
Shimano Altus
Front Derailleur
-
Shift Levers
MicroSHIFT TS39, 8-Speed, Thumb-Tap
Cassette
Sunrace 8-Speed 11/34T
Crank
Forged Alloy, 38T, Ring Guard
Bottom Bracket
Sealed Cartridge Bearings, Square Taper
Chain
KMC Z8
Pedals
Commute Platform
Wheels
Front Hub
Forged Aluminum Alloy, Disc, 32H
Rear Hub
Forged Aluminum Alloy, Disc, 32H
Rims
Marin Aluminum Double Wall, Disc Specific
Tires
Marin Fitness 700Cx35mm
Brakes
Brake Levers
Tektro Hydraulic
Cockpit
Stem
Marin Alloy
Handlebar
Marin Alloy Flat
Grips
Marin Commute
Headset
FSA No.8B
Seat
Saddle
Marin Fitness Plush
Seatpost
Marin Alloy, 27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.45 mm | 1.47 mm | 1.48 mm | 1.5 mm | 1.52 mm |
| Bottom Bracket Height | 280 mm | 280 mm | 280 mm | 280 mm | 280 mm |
| Front Center | 591 mm | 606 mm | 621 mm | 636 mm | 656 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 63 mm | 63 mm | 63 mm | 63 mm | 63 mm |
| Stack | 555.89 mm | 574.97 mm | 594.04 mm | 613.11 mm | 641.73 mm |
| Reach | 382.74 mm | 392.09 mm | 401.44 mm | 409.94 mm | 421.19 mm |
| Top Tube Length | 548 mm | 563 mm | 578 mm | 598 mm | 618 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73 ° | 73 ° |
| Seat Tube Length | 381 mm | 431.8 mm | 482.6 mm | 520.7 mm | 558.8 mm |
| Head Tube Angle | 72.5 ° | 72.5 ° | 72.5 ° | 72.5 ° | 72.5 ° |
| Head Tube Length | 135 mm | 155 mm | 175 mm | 195 mm | 225 mm |
| Chainstay Length | 433 mm | 433 mm | 433 mm | 433 mm | 433 mm |
| Wheelbase | 1015 mm | 1030 mm | 1046 mm | 1060 mm | 1081 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm | 65 mm | 65 mm |
| Standover Height | 657 mm | 703 mm | 748 mm | 781 mm | 817 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 149 cm | 153 cm | 164 cm | 174 cm | 184 cm |
| Rider Max Height | 156 cm | 167 cm | 177 cm | 187 cm | 190 cm |

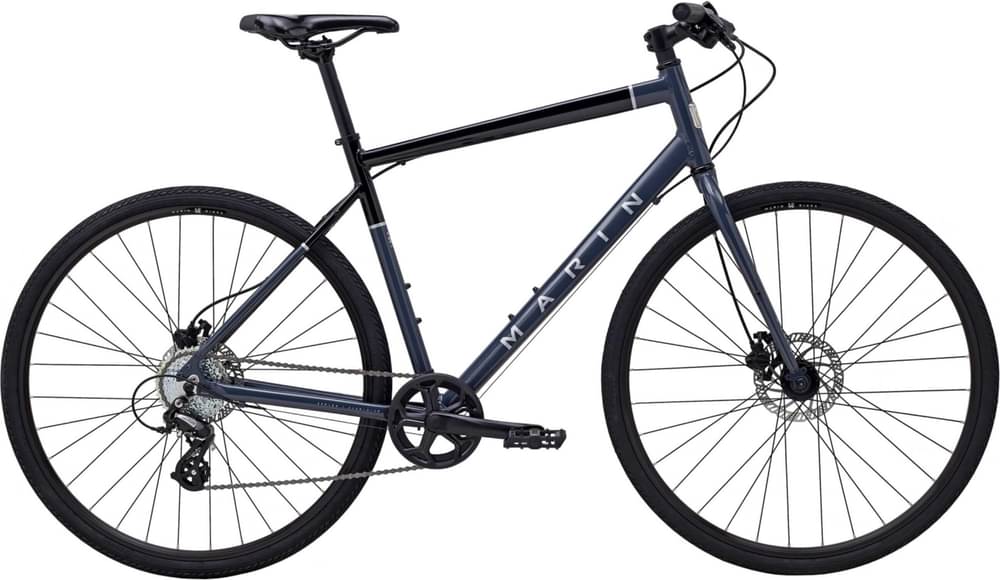

Model Overview
Presidio 1 is a Marin Presidio model. Marin released 18 bikes variations of this model so far. You can easily view all of the Marin Presidio bikes models from 2022, here.
Model range prices
Marin Presidio 1 2022 is the cheapest bike model and costs 639$. Marin Presidio 3 2022 is the most expensive one and costs 1199$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for General Urban bikes
Our math shows that the average cost of a dependable General Urban bike is 499$. However, even if your budget is less than the average, you might still be able to get a top-quality General Urban bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Furthermore, this bike was made available in 2022 for 639$. Comparing the average cost of a General Urban bike to this one, you will see that Presidio 1 price is 28.06% more expensive.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
Overview of components
Fork material
When it comes to the fork, this bike has a steel one, which tends to be more flexible than carbon forks in general. However, a carbon fork is considerably lighter.
Wheels
The wheels on Presidio 1 are the 700c aluminum type. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
When you want to stop the bike in time, the brakes are vital. The Presidio 1 has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Sizes
This bike is available in 5 sizes. They vary from 149 cm – 190 cm (4.89 ft – 6.23 ft). In short, you can easily find one that suits you.
