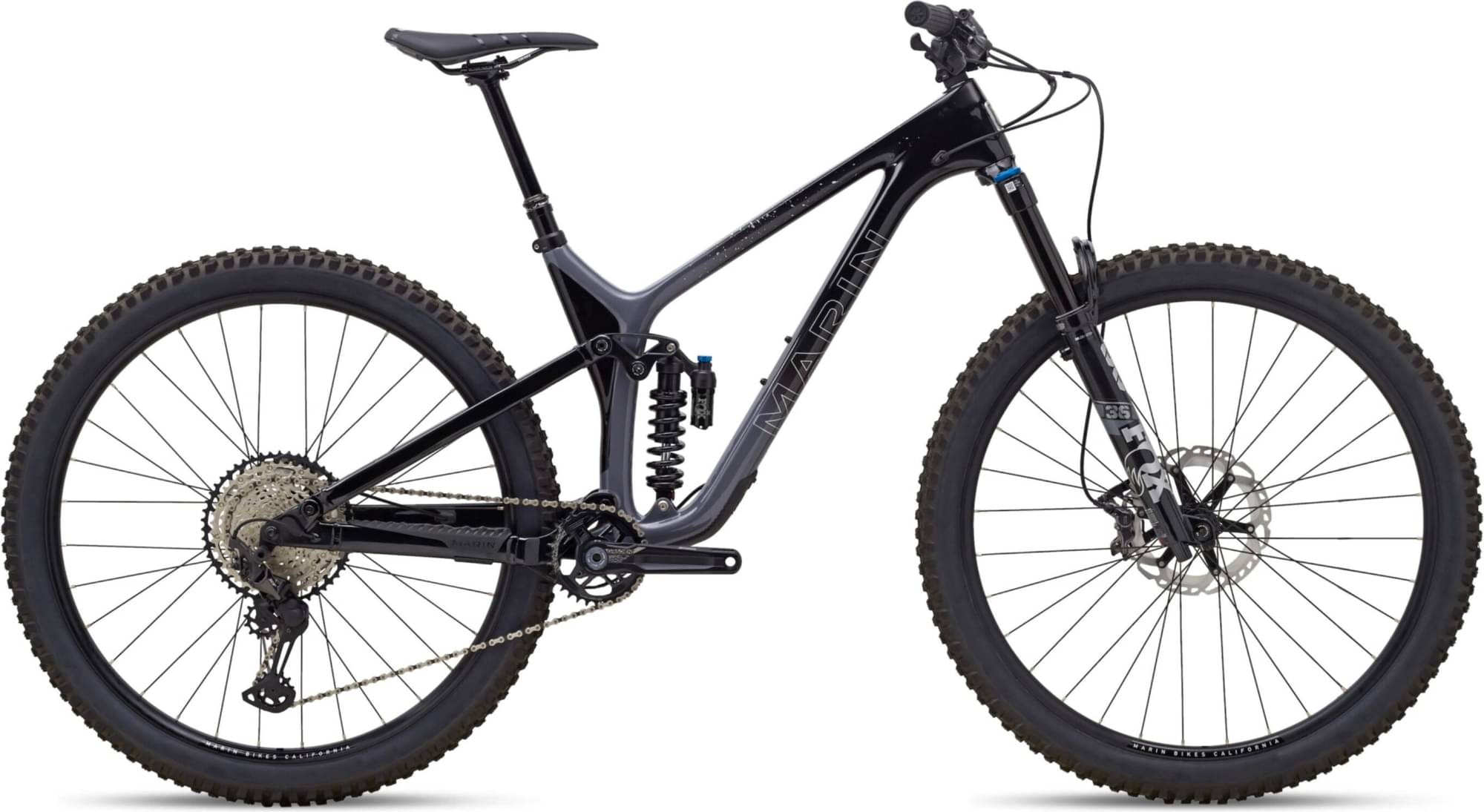

Marin Rift Zone 29 Carbon XR 2022
2022 Mountain
Estimate price |
4,859$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 140mm -
Travel Rear 125mm -
Fork Fox Performance Elite Float 36
-
Groupset XT, SLX -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
160cm - 169cm
MD
166cm - 179cm
LG
176cm - 187cm
XL
184cm - 193cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Unidirectional Carbon Fiber Front Triangle, Series 4 Alloy Rear End, 29” Wheels, 125mm Travel, MultiTrac Suspension Platform, 148x12mm Boost Thru-Axle, 73mm Threaded BB w/ ISCG05 Tabs
Suspension Fork
Fox Performance Elite Float 36, 140mm Travel, GRIP 2 Damper, 110x15mm Kabolt Axle, 44mm Offset
Drivetrain
Rear Derailleur
Shimano XT, 12-Speed, SGS
Front Derailleur
-
Shift Levers
Shimano SLX 12-Speed, I-Spec EV
Cassette
Shimano SLX M7100, 12-Speed, 10-51T
Crank
FSA Gradient, Modular 1x, 32T Direct Mount Chainring, MegaTooth Technology, Mego EXO Spindle, Boost Spacing
Bottom Bracket
MEGAEVO BB, 73mm BSA Threaded
Chain
KMC X-12 Silver and Black
Pedals
-
Wheels
Front Hub
Shimano, 110x15mm, Disc, 32H
Rear Hub
Shimano, Microspline 148x12mm, Disc, 32H
Rims
Marin Aluminum Double Wall, 29mm Inner, Welded Joint, Disc Specific, Tubeless Compatible
Tires
Vee Tire Co Attack HPL, 29x2.5", Top 40 Tubeless Compatible
Brakes
Brakes
hydraulicDisc
Brake Levers
Shimano XT Hydraulic, I-Spec EV
Cockpit
Stem
Marin CNC Stem, 35mm Length, 35mm Bar Bore
Handlebar
Marin 35mm 7000 Alloy Bar, 780mm Length, 5 Degree Up, 8 Degree Back
Grips
All New Marin Single Clamp Locking
Headset
FSA No 42/47, Sealed Cartridge Bearings, 1 1/8" x 1 1/2”
Seat
Saddle
Marin Trail Speed Concept Pro
Seatpost
TranzX, YSP23JL, 1x Remote, Size S 125mm Travel, Size M and L 150mm Travel, Size XL 170mm Travel, 30.9mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.42 mm | 1.35 mm | 1.29 mm | 1.21 mm |
| Bottom Bracket Height | 347 mm | 347 mm | 347 mm | 347 mm |
| Front Center | 742 mm | 769 mm | 796 mm | 836 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 125 mm | 125 mm | 125 mm | 123 mm |
| Stack | 612.64 mm | 617.32 mm | 621.92 mm | 626.6 mm |
| Reach | 432.72 mm | 457.74 mm | 482.84 mm | 517.97 mm |
| Top Tube Length | 583.72 mm | 609.91 mm | 636.16 mm | 672.44 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 390 mm | 400 mm | 425 mm | 430 mm |
| Head Tube Angle | 65.1 ° | 65.1 ° | 65.1 ° | 65.1 ° |
| Head Tube Length | 100 mm | 105 mm | 110 mm | 115 mm |
| Chainstay Length | 432 mm | 432 mm | 432 mm | 432 mm |
| Wheelbase | 1171 mm | 1198 mm | 1226 mm | 1266 mm |
| Bottom Bracket Drop | 31 mm | 31 mm | 31 mm | 31 mm |
| Standover Height | 655 mm | 662 mm | 671 mm | 674 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 160 cm | 166 cm | 176 cm | 184 cm |
| Rider Max Height | 169 cm | 179 cm | 187 cm | 193 cm |
Model Overview
Rift Zone 29 Carbon XR is part of the Marin Rift model. 72 bikes variations carry this model name so far. You can get a glimpse at all models from 2022, by clicking on this link.
Model range prices
Marin Rift Zone 29 1 2022 is the most affordable bike of this model and has a price of 1899$. On the other hand, Marin Rift Zone 29 Carbon XR 2022, is the most expensive and costs 4859$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Trail bikes average price
Our math shows that the average cost of a dependable Trail bike is 2762$. However, even if your budget is less than the average, you might still be able to get a top-quality Trail bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 4859$. In conclusion, this bike price is 75.92% more expensive than the price of the average Trail bike.
Rift Zone 29 Carbon XR components
Fork
The fork installed on this bike is the Fox Performance Elite Float 36 model. The travel on this model is 140mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Rear Shock
Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels
The wheels on Rift Zone 29 Carbon XR are the 29″ aluminum type. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Sizes
This bike is available in 4 sizes. They vary from 160 cm – 193 cm (5.25 ft – 6.33 ft). In conclusion, finding one for you shouldn’t be a problem.
Dropper post
Marin Rift Zone 29 Carbon XR includes a dropper post. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
