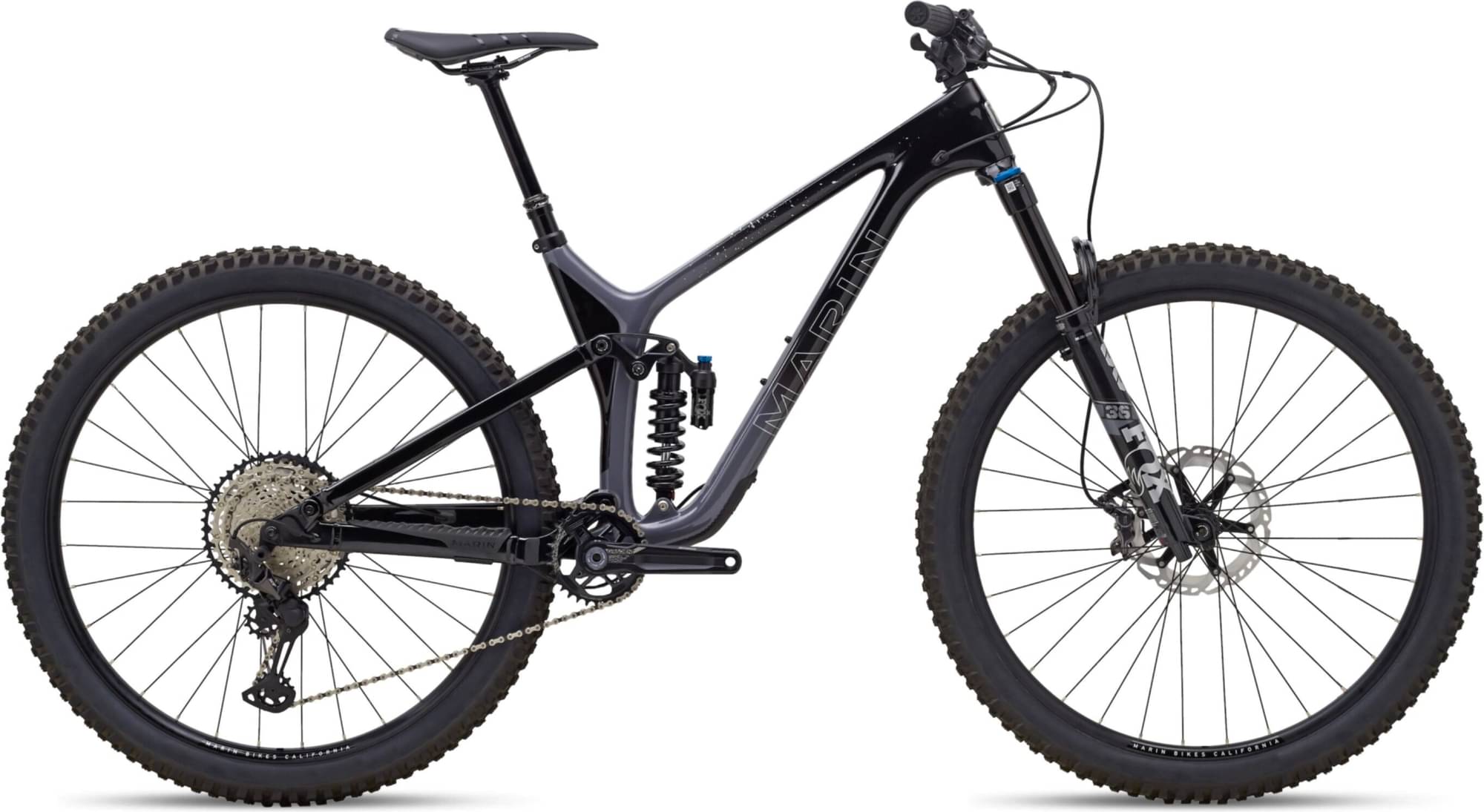

Marin Rift Zone 29″ Carbon XR 2023
2023 Mountain
Estimate price |
4,859$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 140mm -
Travel Rear 125mm -
Fork Fox Performance Elite Float 36
-
Groupset XT, SLX -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
160cm - 169cm
MD
166cm - 179cm
LG
176cm - 187cm
XL
184cm - 193cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Unidirectional Carbon Fiber Front Triangle, Series 4 Alloy Rear End, 29” Wheels, 125mm Travel, MultiTrac Suspension Platform, 148x12mm Boost Thru-Axle, 73mm Threaded BB w/ ISCG05 Tabs
Suspension Fork
Fox 36 Performance Elite Float, 140mm Travel, GRIP 2 Damper, 110x15mm Kabolt Axle, 44mm Offset
Drivetrain
Rear Derailleur
Shimano XT, 12-Speed, SGS
Front Derailleur
-
Shift Levers
Shimano SLX, 12-Speed, SL-7100R
Cassette
Shimano Deore M6100, 12-Speed, 10-51T
Crank
FSA Gradient, Modular 1x, 32T Direct Mount Chainring, MegaTooth Technology, MegaExo Spindle, Boost Spacing
Bottom Bracket
MEGAEVO BB, 73mm BSA Threaded
Chain
KMC X-12 Silver and Black
Pedals
-
Wheels
Front Hub
Forged Alloy, 148x12mm,Disc, 32H, MS Freehub Body
Rear Hub
Forged Alloy, 148x12mm,Disc, 32H, MS Freehub Body
Rims
Marin Aluminum Double Wall, 29mm Inner, Welded Joint, Disc Specific, Tubeless Compatible
Tires
Maxxis Assegai 29x2.5”, 3C MaxxGrip, EXO+, Tubeless Compatible
Brakes
Brakes
Hydraulic Disc
Brake Levers
Shimano XT Hydraulic, I-Spec EV
Cockpit
Stem
Marin CNC, 35mm Length, 35mm Bar Bore
Handlebar
Marin Trail, 35mm Clamp, 7000 Alloy Bar, 800mm Length, 20mm Rise, 5 Degree Up, 8 Degree Back
Grips
Marin Grizzly Lock On
Headset
FSA No 42/47, Sealed Cartridge Bearings, 1 1/8" x 1 1/2”
Seat
Saddle
Marin Trail Speed Concept Pro
Seatpost
X-Fusion Manic, 1x Composite Remote, Size S 125mm Travel, Size M and L 150mm Travel, Size XL 170mm Travel, 30.9mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.42 mm | 1.35 mm | 1.29 mm | 1.21 mm |
| Bottom Bracket Height | 347 mm | 347 mm | 347 mm | 347 mm |
| Front Center | 742 mm | 769 mm | 796 mm | 836 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 125 mm | 125 mm | 125 mm | 123 mm |
| Stack | 612.64 mm | 617.32 mm | 621.92 mm | 626.6 mm |
| Reach | 432.72 mm | 457.74 mm | 482.84 mm | 517.97 mm |
| Top Tube Length | 583.72 mm | 609.91 mm | 636.16 mm | 672.44 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 390 mm | 400 mm | 425 mm | 430 mm |
| Head Tube Angle | 65.1 ° | 65.1 ° | 65.1 ° | 65.1 ° |
| Head Tube Length | 100 mm | 105 mm | 110 mm | 115 mm |
| Chainstay Length | 432 mm | 432 mm | 432 mm | 432 mm |
| Wheelbase | 1171 mm | 1198 mm | 1226 mm | 1266 mm |
| Bottom Bracket Drop | 31 mm | 31 mm | 31 mm | 31 mm |
| Standover Height | 655 mm | 662 mm | 671 mm | 674 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 160 cm | 166 cm | 176 cm | 184 cm |
| Rider Max Height | 169 cm | 179 cm | 187 cm | 193 cm |
Model Overview
Rift Zone 29″ Carbon XR completes the Marin Rift model. Marin released 72 bikes variations of this model so far. Check out the entire range from 2023 of this model, by clicking this link.
Model range prices
Marin Rift Zone Jr 26″ 2023 is the most economical model, with a starting price of 1699$. Marin Rift Zone 29″ Carbon XR 2023 on the other hand costs 4859$, and is the most expensive model.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Trail bikes average price
If you want an acceptable Trail bike you should know that the average price is 2762$. However, even though the average price of a Trail bike is lower, you might still be able to get a top-quality bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Furthermore, this bike was made available in 2023 for 4859$. In conclusion, this bike price is 75.92% more expensive than the price of the average Trail bike.
Rift Zone 29″ Carbon XR components
Fork
This bike has the Fox Performance Elite Float 36 fork installed. The fork’s travel is 140mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In conclusion, always look for a fork with decent travel when you buy a bike.
Rear Shock
Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. To sum up, always consider getting a bike that has a rear shock as well.
Wheels size
When it comes to wheels, the Rift Zone 29″ Carbon XR bike is equipped with the 29″ aluminum model. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, the 29″ wheels will add a little more weight to the bike itself.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Sizes
This bike is available in 4 sizes. They vary from 160 cm – 193 cm (5.25 ft – 6.33 ft). In short, you can easily find one that suits you.
Dropper post
Marin Rift Zone 29″ Carbon XR comes with a dropper post. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
