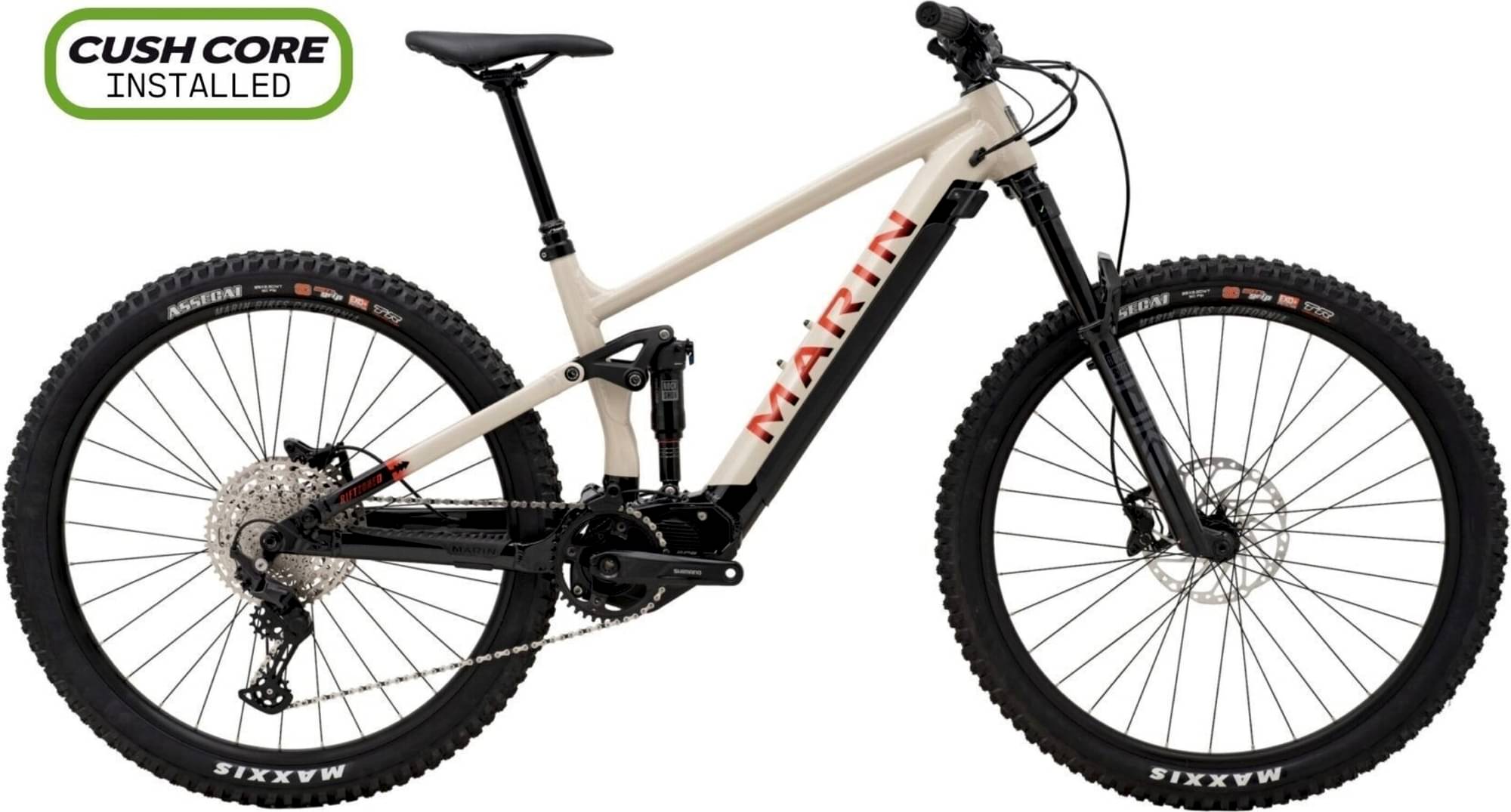

Marin Rift Zone E1 (EU version) 2024
2024 E-bike
Estimate price |
6,470$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 140mm -
Travel Rear 140mm -
Fork RockShox Pike
-
Groupset Deore, Shimano -
Suspension Full -
Motor Shimano 250W 85Nm mid-drive -
Battery Shimano BT-EN806, Internal 630Wh -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
160cm - 169cm
MD
166cm - 179cm
LG
176cm - 187cm
XL
184cm - 193cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
All New Series 4 Alloy Frame, 140mm MultiTrac Suspension, Integrated Battery/Charging Port, 148mm Rear Thru-Axle, Built-in Rear Speed Sensor
Suspension Fork
RockShock Pike Base 29", Motion Control Damper, 140mm Travel, Maxle Stealth Axle, 42mm Offset
Rear Shock
RockShox Deluxe Select+, Compreson and Rebound Adjustment, 210x50, 25xM8 Lower and Upper Mount
Drivetrain
Rear Derailleur
Shimano Deore, Direct Attachment, 11-Speed, SGS
Shift Levers
Shimano Deore, 11-Speed, I-Spec EV
Cassette
SunRace 11-Speed, 11-51T
Crank
Shimano EM600, 160mm Length, 38t Chainring
Chain
KMC X-10E, Silver
Pedals
Marin MTB Plastic
Wheels
Front Hub
Shimano FH-TC500, 110x15mm, Centerlock, 32H
Rear Hub
Shimano HB-TC500, 148x12mm, Centerlock, Standard Freehub Body
Rims
Marin Aluminum Double Wall, 29" Diameter, 29mm Inner Rim Width, Pinned Joint, Disc Specific, Tubeless Compatible
Spokes
14g Black Stainless Steel
Tires
Vee Tire Co Attack HPL, 29x2.5", Top 40 Tubeless Compatible, Override E-Specific Casing
Brakes
Brakes
Tektro Slate EVO, 4-Piston Hydraulic Disc, Resin Pads, 203mm Rotor, w/ Bolt on Speed Sensor
Brake Levers
Tektro Slate EVO Hydraulic Lever, I-Spec EV Compatible
Cockpit
Stem
Marin 3D Forged Alloy, 35mm
Handlebar
Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm Rise, 5º Up, 9º Back
Grips
Marin Grizzly Lock On
Headset
FSA No 57E, Sealed Cartridge Bearings, 1 1/8" x 1 1/2”
Seat
Saddle
Marin eMTB Saddle
Seatpost
TranzX, YSP23JL, 1x Remote, Size S 150mm Travel, Size M and L 170mm Travel, Size XL 200mm Travel, 30.9mm
Motor & Battery
Motor
Shimano Steps EP6 Drive Unit, 250W, 85Nm
Battery
Shimano BT-EN806, Internal 630Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.364 mm | 1.321 mm | 1.289 mm | 1.231 mm |
| Bottom Bracket Height | 348.5 mm | 348.5 mm | 348.5 mm | 348.5 mm |
| Front Center | 760 mm | 784 mm | 809 mm | 843 mm |
| Rake | 42 mm | 42 mm | 42 mm | 42 mm |
| Trail | 128 mm | 127 mm | 128 mm | 128 mm |
| Stack | 606.98 mm | 614.04 mm | 625.1 mm | 634.16 mm |
| Reach | 445 mm | 465 mm | 485 mm | 515 mm |
| Top Tube Length | 585.13 mm | 607.22 mm | 629.32 mm | 661.41 mm |
| Seat Tube Angle | 77 ° | 77 ° | 77 ° | 77 ° |
| Seat Tube Length | 390 mm | 400 mm | 425 mm | 435 mm |
| Head Tube Angle | 65 ° | 65 ° | 65 ° | 65 ° |
| Head Tube Length | 100 mm | 110 mm | 120 mm | 130 mm |
| Chainstay Length | 440 mm | 440 mm | 440 mm | 440 mm |
| Wheelbase | 1198 mm | 1222 mm | 1246 mm | 1280 mm |
| Bottom Bracket Drop | 32 mm | 32 mm | 32 mm | 32 mm |
| Standover Height | 693 mm | 696 mm | 709 mm | 719 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 160 cm | 166 cm | 176 cm | 184 cm |
| Rider Max Height | 169 cm | 179 cm | 187 cm | 193 cm |
About this model
Rift Zone E1 (EU version) is a Marin E Rift model. Marin launched 12 e-bikes of this model so far. You can get a glimpse at all models from 2024, by clicking on this link.
Model range prices
Marin Rift Zone E 2024 is the most economical model, with a starting price of 4499$. Marin Rift Zone E2 2024 on the other hand costs 6199$, and is the most expensive model.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Trail e-bikes average price
According to our calculations, the average cost of a Trail e-bike that is reliable is 3365$. However, you could also get a good Trail e-bike even if you pay a lower amount than the average price. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, this bike was made available in 2024 for 5888$. Comparing this to the average Trail e-bike price, we see that the price is 74.98% higher.
Overview of components
Fork
This e-bike has the RockShox Pike fork installed. The fork’s travel is 140mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Rear Shock
The shock that’s installed on this e-bike is RockShox Deluxe Select+, with a travel distance of 140mm. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels
When it comes to wheels, the Rift Zone E1 (EU version) e-bike is equipped with the 29″ aluminum model. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, these wheels are not ideal for smaller people.
Brakes
When you want to stop the bike in time, the brakes are vital. The Rift Zone E1 (EU version) has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Sizes
Marin Rift Zone E1 (EU version) e-bike has 4 sizes, in the range of 160 cm – 193 cm (5.25 ft – 6.33 ft). In conclusion, you won’t have a problem finding one that suits you.
Dropper post
Marin Rift Zone E1 (EU version) includes a dropper post. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
