Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 700c -
Fork SunTour -
Groupset Alfine, Shimano -
Suspension Hardtail -
Motor Shimano 250W 50Nm mid-drive -
Drivetrain Internally Geared Hub -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Series 3 E 6061 Aluminum, 700C wheels, Post Mount Disc Specific Forged Dropouts, Fender, Rack and Integrated Kickstand Mounts
Suspension Fork
SR Suntour NCXE LOR, Remote Hydraulic Lockout, Adjustable Damping, 63mm Travel
Drivetrain
Shift Levers
Shimano Alfine 11-Speed
Cassette
Shimano Alfine, 18T
Crank
Shimano STEPS E6000
Bottom Bracket
STEPS, press-fit
Chain
Shimano HG-93
Pedals
Dual Sport Platform
Wheels
Front Hub
Forged Aluminum Alloy, 6-Bolt Disc, 32H
Rear Hub
Shimano Alfine 11-Speed Internally Geared Hub
Rims
Marin Aluminum Double Wall, 30mm Tall, 21mm ID, Disc Specific
Spokes
14g Black Stainless Steel
Tires
Schwalbe Marathon Supreme HD, 700Cx40, Speed Guard Puncture Protection
Brakes
Brakes
Shimano BR-M446 Hydraulic Disc, 160mm Rotor
Brake Levers
Shimano Hydraulic
Cockpit
Stem
Marin 3D Forged Alloy
Handlebar
Marin Flat Top Riser
Grips
Ergon GS1-L Ergonomic
Headset
FSA Orbit CE No. 8D
Seat
Saddle
Ergon SM30 Comp
Seatpost
Marin Carbon
Motor & Battery
Motor
Shimano STEPS E6000, 44T Chainring
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.72 mm | 1.72 mm | 1.75 mm |
| Bottom Bracket Height | 295 mm | 295 mm | 295 mm |
| Front Center | 641 mm | 648 mm | 659 mm |
| Rake | 44 mm | 44 mm | 44 mm |
| Trail | 79 mm | 75 mm | 75 mm |
| Stack | 633 mm | 645 mm | 664 mm |
| Reach | 367 mm | 376 mm | 380 mm |
| Top Tube Length | 563 mm | 576 mm | 585 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 460 mm | 500 mm | 540 mm |
| Head Tube Angle | 69.5 ° | 70 ° | 70 ° |
| Head Tube Length | 160 mm | 170 mm | 190 mm |
| Chainstay Length | 472 mm | 472 mm | 472 mm |
| Wheelbase | 1105 mm | 1112 mm | 1123 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm |
| Standover Height | 526 mm | 523 mm | 537 mm |
| Wheels | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |

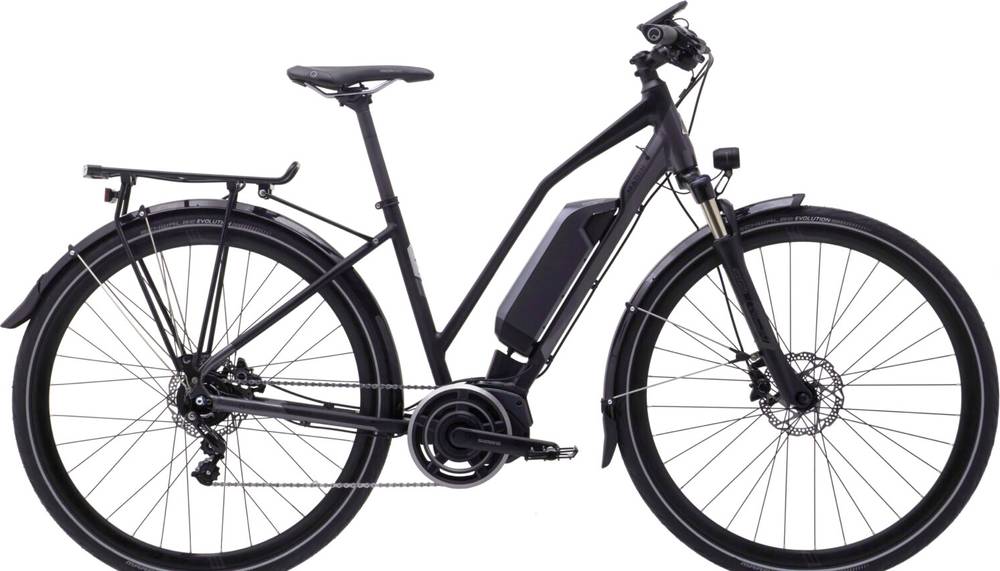

Model Overview
San Anselmo DS-E belongs to the Marin E San Anselmo model. 5 e-bikes variations carry this model name so far. You can easily view all of the Marin E San Anselmo e-bikes models from 2018, here.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
General Road e-bikes average price
If you want an acceptable General Road e-bike you should know that the average price is 2631$. However, paying less money than this amount doesn’t mean that you couldn’t get a great General Road e-bike. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
Overview of components
Fork
The SunTour is included from the factory. It has a travel distance of mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, you should always ensure you have a good fork when purchasing a bike.
Fork material
The fork on this e-bike is made out of carbon, so, it’s a great addition to the e-bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels
When leaving the production line, the San Anselmo DS-E model has 700c aluminum wheels. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
When you want to stop the bike in time, the brakes are vital. The San Anselmo DS-E has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Sizes
This e-bike is available in 3 sizes. They vary from 158 cm – 187 cm (5.18 ft – 6.14 ft). In conclusion, it won’t take much to find one that’s right for you.
