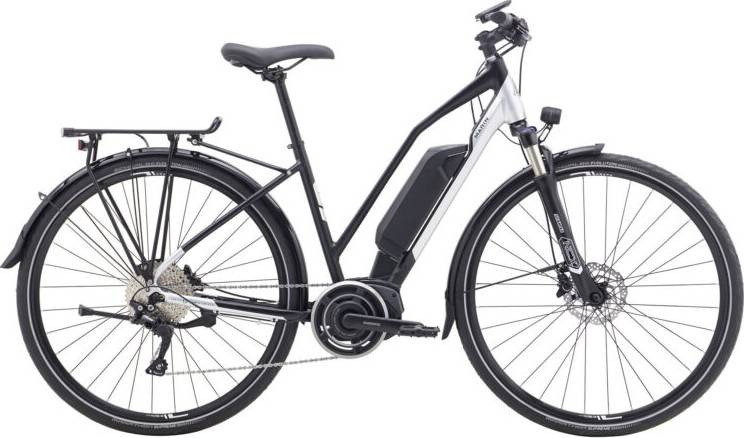

Marin San Anselmo DS-E Deore 2019
2019 E-bike
Estimate price |
2,849$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 63mm -
Fork SunTour
-
Groupset Deore, Shimano -
Suspension Hardtail -
Motor Shimano 250W 50Nm mid-drive -
Battery Shimano Steps, 36V, 418 Wh -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Series 3 E 6061 Aluminum, 700C wheels, Post Mount Disc Specific Forged Dropouts, Fender, Rack and Integrated Kickstand Mounts
Suspension Fork
SR Suntour NCXE LOR, Remote Hydraulic Lockout, Adjustable Damping, 63mm Travel
Drivetrain
Rear Derailleur
Shimano Deore 10-Speed
Shift Levers
Shimano Deore
Cassette
Sunrace 10-Speed 11-42t
Crank
Shimano STEPS E6000
Bottom Bracket
STEPS, press-fit
Chain
Shimano Deore
Pedals
Dual Sport Platform
Wheels
Front Hub
Forged Aluminum Alloy, 6-Bolt Disc, 32H
Rear Hub
Forged Aluminum Alloy, 6-Bolt Disc, 32H
Rims
Marin Aluminum Double Wall, Disc Specific
Spokes
14g Black Stainless Steel
Tires
Continental, E-Contact, 700Cx42, Reflective Sidewall, Puncture Protection
Brakes
Brakes
Shimano BR-M365 Hydraulic Disc, 160mm Rotor
Brake Levers
Shimano Hydraulic
Cockpit
Stem
Marin 3D Forged Alloy
Handlebar
Marin Flat Top Riser
Grips
Marin Locking Ergonomic
Headset
FSA Orbit CE No. 8D
Seat
Saddle
Marin City + Sport Plush
Seatpost
Marin Alloy
Motor & Battery
Motor
Shimano STEPS E6000, 44T Chainring
Battery
Shimano Steps, 36V, 418 Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.72 mm | 1.72 mm | 1.75 mm |
| Bottom Bracket Height | 295 mm | 295 mm | 295 mm |
| Front Center | 641 mm | 648 mm | 659 mm |
| Rake | 44 mm | 44 mm | 44 mm |
| Trail | 84 mm | 80 mm | 80 mm |
| Stack | 633 mm | 645 mm | 664 mm |
| Reach | 367 mm | 376 mm | 380 mm |
| Top Tube Length | 563 mm | 576 mm | 585 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 460 mm | 500 mm | 540 mm |
| Head Tube Angle | 69.5 ° | 70 ° | 70 ° |
| Head Tube Length | 160 mm | 170 mm | 190 mm |
| Chainstay Length | 472 mm | 472 mm | 472 mm |
| Wheelbase | 1105 mm | 1112 mm | 1123 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm |
| Standover Height | 526 mm | 523 mm | 537 mm |
| Wheels | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
Model Overview
San Anselmo DS-E Deore is part of the Marin E San Anselmo model. 5 e-bikes variations carry this model name so far. You can get a glimpse at all models from 2019, by clicking on this link.
Model range prices
Marin San Anselmo DS-E Deore 2019 is the most economical model, with a starting price of 2849$. Marin San Anselmo DS-E 2019 on the other hand costs 3199$, and is the most expensive model.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Commuter e-bikes average price
Our math shows that the average cost of a dependable Commuter e-bike is 2569$. However, you could also get a good Commuter e-bike even if you pay a lower amount than the average price. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
At the moment of the release date, Marin San Anselmo DS-E Deore price was 2849$. If we compare this with the average Commuter e-bike cost we notice that the price is 10.9% more expensive.
Overview of components
Fork
The San Anselmo DS-E Deore comes factory-installed with the SunTour fork. This has a travel range of 63mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels
When leaving the production line, the San Anselmo DS-E Deore model has 700c aluminum wheels. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
When you want to stop the bike in time, the brakes are vital. The San Anselmo DS-E Deore has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Sizes
This e-bike is available in 3 sizes. They vary from 158 cm – 187 cm (5.18 ft – 6.14 ft). In conclusion, it won’t take much to find one that’s right for you.
