Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 700c -
Fork SunTour NEX -
Groupset Altus, Tourney -
Suspension Hardtail -
Drivetrain 3 × 8 -
Brakes Rim
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Series 2 6061 Aluminum, 700C Wheels, Women's Fit Geometry, Step Through Design, Internal Cable Routing
Suspension Fork
SR Suntour NEX, Preload Adjustment, 63mm Travel
Drivetrain
Rear Derailleur
Shimano Altus
Front Derailleur
Shimano FD-TY710
Shift Levers
Shimano EF500 8-Speed
Cassette
Sunrace 8-Speed, 11-32T
Crank
Shimano TY301, 42/34/24, Ring Guard
Bottom Bracket
Sealed Cartridge Bearings, Square Taper
Chain
KMC Z8
Pedals
Dual Sport Platform
Wheels
Front Hub
Forged Aluminum Alloy, 32H
Rear Hub
Forged Aluminum Alloy, 32H
Rims
Marin Aluminum Double Wall, Machined Sidewall
Tires
Kenda Kahn, 700Cx40
Brakes
Brakes
Forged Alloy Linear Pull w/ Power Modulator
Brake Levers
Shimano w/ Integrated Shifters
Cockpit
Stem
Marin Alloy
Handlebar
Marin Riser
Grips
Dual Density Ergonomic
Headset
FSA No.10-P
Seat
Saddle
Marin Women's Fitness Plush
Seatpost
Marin Alloy
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.54 mm | 1.59 mm | 1.58 mm | 1.56 mm |
| Bottom Bracket Height | 291 mm | 291 mm | 291 mm | 291 mm |
| Front Center | 616 mm | 615 mm | 625 mm | 645 mm |
| Rake | 41 mm | 41 mm | 41 mm | 41 mm |
| Trail | 75 mm | 75 mm | 75 mm | 75 mm |
| Stack | 586.99 mm | 596.41 mm | 605.85 mm | 619.99 mm |
| Reach | 380.43 mm | 375.94 mm | 382.26 mm | 398.04 mm |
| Top Tube Length | 554.9 mm | 558.9 mm | 568.1 mm | 588.2 mm |
| Seat Tube Angle | 73.5 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 381 mm | 431 mm | 482.6 mm | 520.7 mm |
| Head Tube Angle | 70.5 ° | 70.5 ° | 70.5 ° | 70.5 ° |
| Head Tube Length | 100 mm | 110 mm | 120 mm | 135 mm |
| Chainstay Length | 443 mm | 443 mm | 443 mm | 443 mm |
| Wheelbase | 1052 mm | 1051 mm | 1060 mm | 1081 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm |
| Standover Height | 622 mm | 668 mm | 713 mm | 746 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview

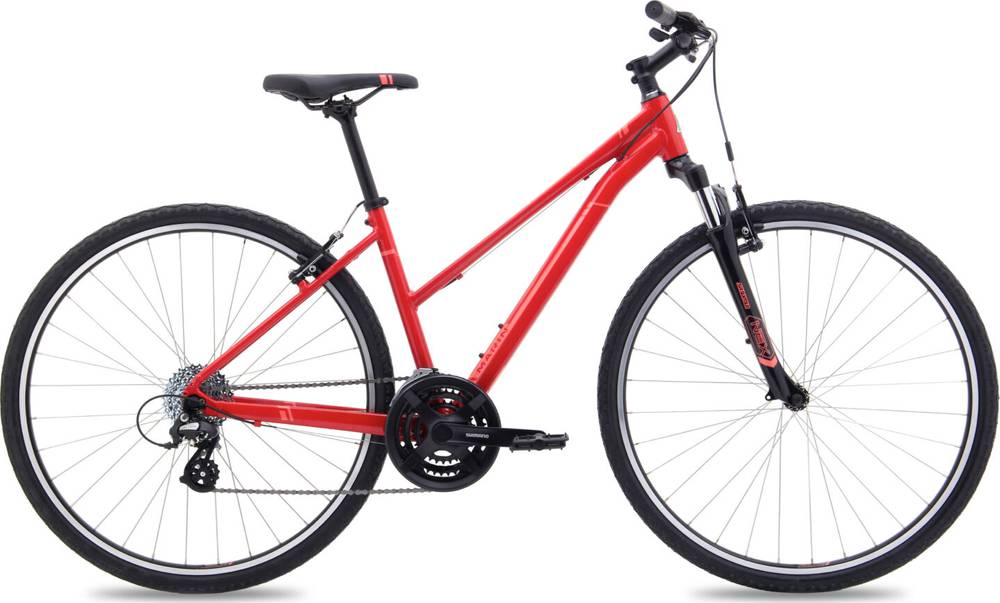

San Anselmo DS1 is part of the Marin San Anselmo model. Marin launched 27 bikes of this model so far. Check out the entire range from 2017 of this model, by clicking this link.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
General Road bikes average price
Our math shows that the average cost of a dependable General Road bike is 1915$. However, paying less money than this amount doesn’t mean that you couldn’t get a great General Road bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
Overview of components
Fork
This bike has the SunTour NEX fork installed. The fork’s travel is mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels size
As for the wheels, Marin San Anselmo DS1 2017, has a 700c aluminum model. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
For your safety, it is important to have quality breaks on your bike. Marin San Anselmo DS1 has Rim brakes installed. Slightly lighter than hydraulic brakes, rim brakes are a budget choice. However, they have problems in wet conditions.
Sizes
San Anselmo DS1 comes in 4 sizes, that range from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, finding one for you shouldn’t be a problem.
