Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 63mm -
Fork SunTour NEX
-
Groupset Tourney, Shimano -
Suspension Hardtail -
Drivetrain 2 × 7 -
Brakes Mechanical Disc
Sizing
Recommended size guide.
SM
149cm - 157cm
MD
160cm - 169cm
LG
166cm - 177cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Series 2 Dual Sport, 6061 Aluminum, 700C Wheels, Women's Fit Geometry, Step Through Design, Disc Brake
Suspension Fork
SR Suntour NEX, 63mm Travel, Preload Adjustment
Drivetrain
Rear Derailleur
Shimano Tourney, 7-Speed
Front Derailleur
Shimano TY710
Shift Levers
Shimano EF500 Shifter/Brake Lever Combo, 2x7-Speed
Cassette
SunRace 7-Speed, 11-34T
Crank
Forged Alloy Crank, 46/30T, Ring Guard
Bottom Bracket
Sealed Cartridge Bearings, Square Taper
Chain
KMC Z-8.3
Pedals
Dual Sport Platform
Wheels
Front Hub
Forged Aluminum Alloy, 32H
Rear Hub
Forged Aluminum Alloy, 32H
Rims
Marin Aluminum Double Wall
Tires
Kenda Kahn, 700Cx40mm
Brakes
Brake Levers
Shimano w/ Integrated Shifters
Cockpit
Stem
Marin Alloy, 31.8mm Clamp
Handlebar
Marin Alloy Riser
Grips
Dual Density Ergonomic
Headset
FSA No.10-P
Seat
Saddle
Marin Women's Fitness Plush
Seatpost
Marin Alloy, 27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.54 mm | 1.59 mm | 1.58 mm |
| Bottom Bracket Height | 291 mm | 291 mm | 291 mm |
| Front Center | 616 mm | 615 mm | 625 mm |
| Rake | 41 mm | 41 mm | 41 mm |
| Trail | 80 mm | 80 mm | 80 mm |
| Stack | 586.99 mm | 596.41 mm | 605.85 mm |
| Reach | 380.43 mm | 375.94 mm | 382.26 mm |
| Top Tube Length | 554.9 mm | 558.9 mm | 568.1 mm |
| Seat Tube Angle | 73.5 ° | 73 ° | 73 ° |
| Seat Tube Length | 381 mm | 431.8 mm | 482.6 mm |
| Head Tube Angle | 70.5 ° | 70.5 ° | 70.5 ° |
| Head Tube Length | 100 mm | 110 mm | 120 mm |
| Chainstay Length | 443 mm | 443 mm | 443 mm |
| Wheelbase | 1052 mm | 1051 mm | 1060 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm |
| Standover Height | 622 mm | 668 mm | 713 mm |
| Wheels | 700 | 700 | 700 |
| Rider Min Height | 149 cm | 160 cm | 166 cm |
| Rider Max Height | 157 cm | 169 cm | 177 cm |
About this model

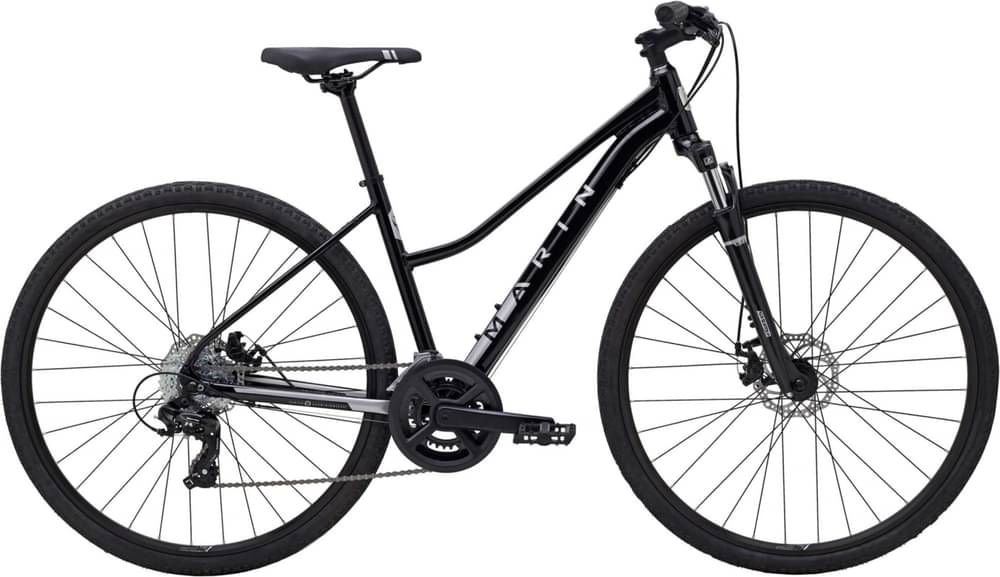

San Anselmo DS1 belongs to the Marin San Anselmo model. Marin released 27 bikes variations of this model so far. Take a sneak peek at all Marin San Anselmo bikes models from 2022, by clicking here.
Model range prices
Marin San Anselmo DS1 2022 is the most economical model, with a starting price of 689$. Marin San Anselmo DS2 2022 on the other hand costs 799$, and is the most expensive model.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Hybrid bikes
Our math shows that the average cost of a dependable Hybrid bike is 562$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Hybrid bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
At the moment of the release date, Marin San Anselmo DS1 price was 689$. Comparing the average cost of a Hybrid bike to this one, you will see that San Anselmo DS1 price is 22.6% higher.
San Anselmo DS1 components
Fork
The SunTour NEX is included from the factory. It has a travel distance of 63mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels size
The San Anselmo DS1 2022 bike is equipped with 700c aluminum wheels when leaving the factory. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
For your safety, it is important to have quality breaks on your bike. Marin San Anselmo DS1 has Mechanical Disc brakes installed. These brakes are also very popular, and a lot cheaper than hydraulic disk brakes. However, they don’t have the stopping power of hydraulic brakes.
Sizes
San Anselmo DS1 comes in 3 sizes, that range from 149 cm – 177 cm (4.89 ft – 5.81 ft). In conclusion, you won’t have a problem finding one that suits you.
