Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 700c -
Fork SunTour NEX -
Groupset Acera, Tourney -
Suspension Hardtail -
Drivetrain 3 × 8 -
Brakes Mechanical Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Series 3 6061 Aluminum w/ SHOT Tech, 700C Wheels, Women's Fit Geometry, Relieved Head Tube and BB, Internal Cable Routing, Post Mount Disc Specific Forged Dropouts
Suspension Fork
SR Suntour NEX Disc HLO, Hydraulic Lockout, Preload Adjustment, 63mm Travel
Drivetrain
Rear Derailleur
Shimano Acera Shadow
Front Derailleur
Shimano FD-TY710
Shift Levers
Shimano EF500 8-Speed
Cassette
Sunrace 8-Speed, 11-32T
Crank
Shimano TY301, 42/34/24, Ring Guard
Bottom Bracket
Sealed Cartridge Bearings, Square Taper
Chain
KMC Z8
Pedals
Dual Sport Platform
Wheels
Front Hub
Forged Aluminum Alloy, 6-Bolt Disc, 32H
Rear Hub
Forged Aluminum Alloy, 6-Bolt Disc, 32H
Rims
Marin Aluminum Double Wall, Disc Specific
Tires
Schwalbe Smart Sam, 700Cx40, Kevlar Puncture Protection
Brakes
Brakes
Promax DSK-300 Mechanical Disc, 160mm Rotor
Brake Levers
Shimano w/ Integrated Shifters
Cockpit
Stem
Marin Alloy
Handlebar
Marin Riser
Grips
Marin Ergonomic Locking
Headset
FSA No.10-P
Seat
Saddle
Marin Women's Fitness Plush
Seatpost
Marin Alloy
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.54 mm | 1.59 mm | 1.58 mm | 1.56 mm |
| Bottom Bracket Height | 291 mm | 291 mm | 291 mm | 291 mm |
| Front Center | 616 mm | 615 mm | 625 mm | 645 mm |
| Rake | 41 mm | 41 mm | 41 mm | 41 mm |
| Trail | 75 mm | 75 mm | 75 mm | 75 mm |
| Stack | 586.99 mm | 596.41 mm | 605.85 mm | 619.99 mm |
| Reach | 380.43 mm | 375.94 mm | 382.26 mm | 398.04 mm |
| Top Tube Length | 554.9 mm | 558.9 mm | 568.1 mm | 588.2 mm |
| Seat Tube Angle | 73.5 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 381 mm | 431.8 mm | 482.6 mm | 520.7 mm |
| Head Tube Angle | 70.5 ° | 70.5 ° | 70.5 ° | 70.5 ° |
| Head Tube Length | 100 mm | 110 mm | 120 mm | 135 mm |
| Chainstay Length | 443 mm | 443 mm | 443 mm | 443 mm |
| Wheelbase | 1052 mm | 1051 mm | 1060 mm | 1081 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm |
| Standover Height | 622 mm | 668 mm | 713 mm | 746 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |

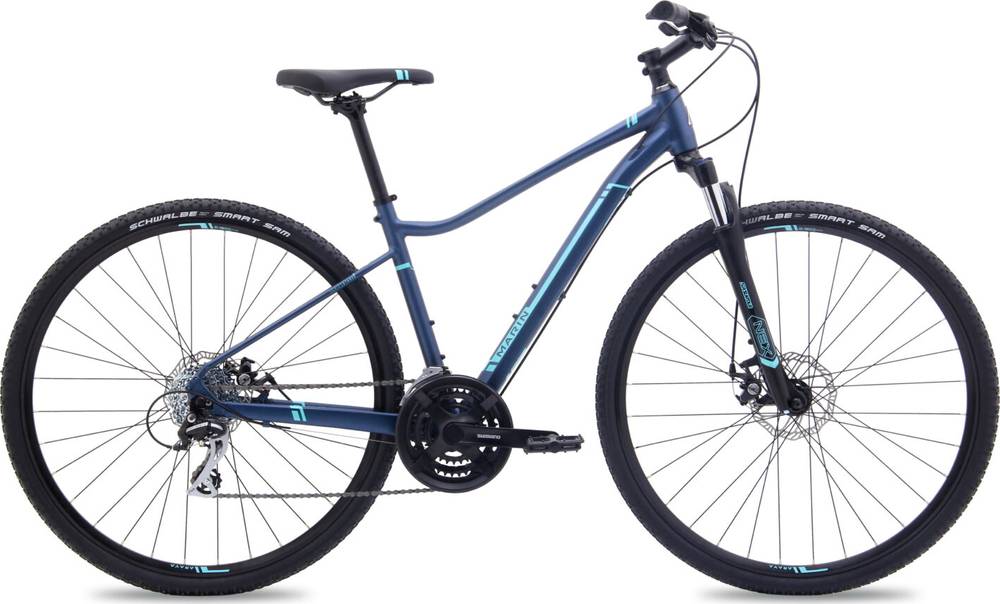

About this model
San Anselmo DS2 completes the Marin San Anselmo model. Marin launched 27 bikes of this model so far. You can easily view all of the Marin San Anselmo bikes models from 2017, here.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for General Road bikes
According to our math, the average price for a trustworthy General Road bike is 1915$. However, even if your budget is less than the average, you might still be able to get a top-quality General Road bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
San Anselmo DS2 components
Fork
The fork installed on this bike is the SunTour NEX model. The travel on this model is mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels
The wheels on San Anselmo DS2 are the 700c aluminum type. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Nothing is more important on a bike than its ability to brake properly. Marin San Anselmo DS2 is equipped with Mechanical Disc brakes. They deliver good performance and cost less than hydraulic disk brakes. However, performance-wise there is room for improvement.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, finding one for you shouldn’t be a problem.
