Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 700c -
Travel Front 63mm -
Fork SunTour NEX
-
Groupset Altus, Tourney -
Suspension Hardtail -
Drivetrain 3 × 8 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Series 2 Dual Sport, 6061 Aluminum, 700C Wheels, Women's Fit Geometry, Step Through Design, Disc Brake
Suspension Fork
SR Suntour NEX Disc HLO, 63mm Travel, Hydraulic Lockout, Preload Adjustment
Drivetrain
Rear Derailleur
Shimano Altus 8-Speed
Front Derailleur
Shimano FD-TY710
Shift Levers
Shimano EF505 3x8-Speed
Cassette
SunRace 8-Speed, 11-32T
Crank
Shimano FC-TY301, 48/38/28T, Ring Guard
Bottom Bracket
Sealed Cartridge Bearings, Square Taper
Chain
KMC Z7
Pedals
Dual Sport Platform
Wheels
Front Hub
Forged Aluminum Alloy, Centerlock Disc, 32H
Rear Hub
Forged Aluminum Alloy, Centerlock Disc, 32H
Rims
Marin Aluminum Double Wall, Disc Specific
Spokes
14g Black Stainless Steel
Tires
Vee Tire, Rail, 700x40, Wire Bead
Brakes
Brakes
Shimano BR-M315 Hydraulic Disc, 160mm Rotor
Brake Levers
Shimano EF-505 Hydraulic
Cockpit
Stem
Marin Alloy
Handlebar
Marin Alloy Riser
Grips
Marin Ergonomic Locking
Headset
FSA No.10-P
Seat
Saddle
Marin Women's Fitness Plush
Seatpost
Marin Alloy
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.54 mm | 1.59 mm | 1.58 mm | 1.56 mm |
| Bottom Bracket Height | 291 mm | 291 mm | 291 mm | 291 mm |
| Front Center | 616 mm | 615 mm | 625 mm | 645 mm |
| Rake | 41 mm | 41 mm | 41 mm | 41 mm |
| Trail | 89 mm | 89 mm | 89 mm | 89 mm |
| Stack | 586.99 mm | 596.41 mm | 605.85 mm | 619.99 mm |
| Reach | 380.43 mm | 375.94 mm | 382.26 mm | 398.04 mm |
| Top Tube Length | 554.9 mm | 558.9 mm | 568.1 mm | 588.2 mm |
| Seat Tube Angle | 73.5 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 381 mm | 431.8 mm | 482.6 mm | 520.7 mm |
| Head Tube Angle | 70.5 ° | 70.5 ° | 70.5 ° | 70.5 ° |
| Head Tube Length | 100 mm | 110 mm | 120 mm | 135 mm |
| Chainstay Length | 443 mm | 443 mm | 443 mm | 443 mm |
| Wheelbase | 1052 mm | 1051 mm | 1060 mm | 1081 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm |
| Standover Height | 622 mm | 668 mm | 713 mm | 746 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model

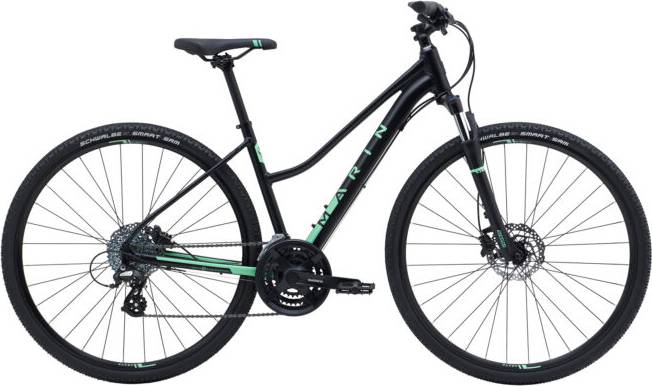

San Anselmo DS2 is a Marin San Anselmo model. 27 bikes variations carry this model name so far. Take a sneak peek at all Marin San Anselmo bikes models from 2019, by clicking here.
Model range prices
Marin San Anselmo DS1 2019 is the most economical model, with a starting price of 489$. Marin San Anselmo DS3 2019 on the other hand costs 709$, and is the most expensive model.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Crosscountry bikes
Our math shows that the average cost of a dependable Crosscountry bike is 1905$. However, you could also get a good Crosscountry bike even if you pay a lower amount than the average price. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 599$. Comparing the average cost of a Crosscountry bike to this one, you will see that San Anselmo DS2 price is 218.03% lower.
San Anselmo DS2 components
Fork
The San Anselmo DS2 comes factory-installed with the SunTour NEX fork. This has a travel range of 63mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels size
The wheels on San Anselmo DS2 are the 700c aluminum type. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
When you want to stop the bike in time, the brakes are vital. The San Anselmo DS2 has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Sizes
This bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, you won’t have a problem finding one that suits you.
