Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 63mm -
Fork Suntour NEX
-
Groupset Acera, Tourney -
Suspension Hardtail -
Drivetrain 2 × 8 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
149cm - 157cm
MD
160cm - 169cm
LG
166cm - 179cm
XL
176cm - 185cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame

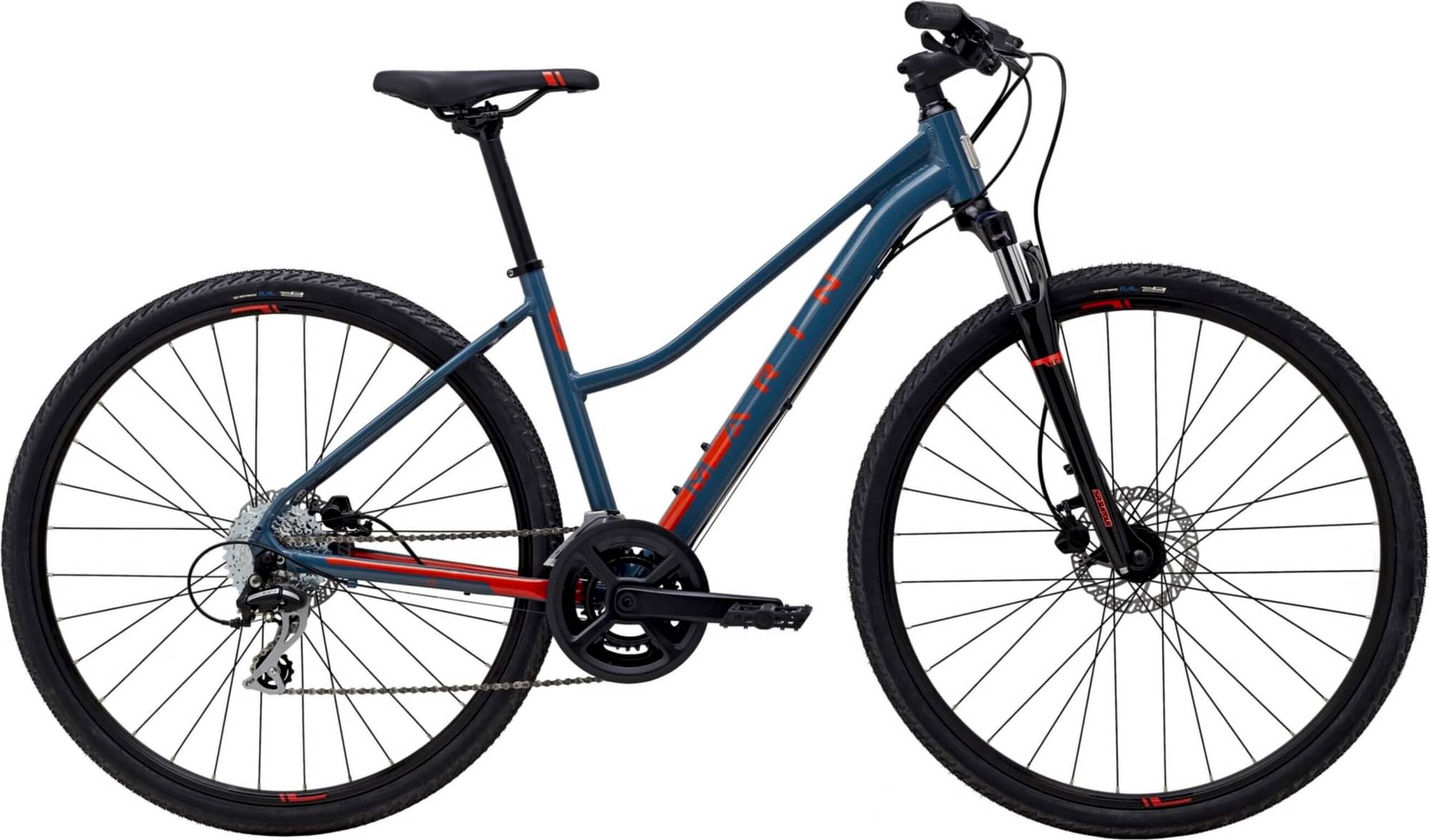

Series 2 Dual Sport, 6061 Aluminum, 700C Wheels, Women's Fit Geometry, Step Through Design, Disc Brake
Suspension Fork
SR/Suntour NEX Disc HLO, 63mm Travel, Hydraulic Lockout, Preload Adjustment
Drivetrain
Rear Derailleur
Shimano Acera 8-Speed
Front Derailleur
Shimano FD-TY710
Shift Levers
Shimano Altus SL-M315, 8-Speed
Cassette
SunRace 8-Speed, 11-34T
Crank
Forged Alloy Crank, 46/30T, Ring Guard
Bottom Bracket
Sealed Cartridge Bearings, Square Taper
Chain
KMC Z8
Pedals
Dual Sport Platform
Wheels
Front Hub
Forged Aluminum Alloy, Disc, 32H
Rear Hub
Forged Aluminum Alloy, Disc, 32H
Rims
Marin Aluminum Double Wall, Disc Specific
Tires
Vee Tire Co. Rail, 700cx40mm, Wire Bead
Brakes
Brakes
Hydraulic Disc
Brake Levers
Clark's Clout Hydraulic
Cockpit
Stem
Marin Alloy, 31.8mm Clamp
Handlebar
Marin Alloy Riser
Grips
Marin Ergonomic Locking
Headset
FSA No.10-P
Seat
Saddle
Marin Women's Fitness Plush
Seatpost
Marin Alloy, 27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.54 mm | 1.583 mm | 1.582 mm | 1.555 mm |
| Bottom Bracket Height | 291 mm | 291 mm | 291 mm | 291 mm |
| Front Center | 616 mm | 615 mm | 625 mm | 645 mm |
| Rake | 41 mm | 41 mm | 41 mm | 41 mm |
| Trail | 80 mm | 80 mm | 80 mm | 80 mm |
| Stack | 588.99 mm | 598.41 mm | 607.85 mm | 621.99 mm |
| Reach | 382.43 mm | 377.94 mm | 384.26 mm | 400.04 mm |
| Top Tube Length | 556.9 mm | 560.9 mm | 570.1 mm | 590.2 mm |
| Seat Tube Angle | 73.5 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 381 mm | 431.8 mm | 482.6 mm | 520.7 mm |
| Head Tube Angle | 70.5 ° | 70.5 ° | 70.5 ° | 70.5 ° |
| Head Tube Length | 100 mm | 110 mm | 120 mm | 135 mm |
| Chainstay Length | 445 mm | 445 mm | 445 mm | 445 mm |
| Wheelbase | 1054 mm | 1053 mm | 1062 mm | 1083 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm |
| Standover Height | 624 mm | 670 mm | 715 mm | 725 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 149 cm | 160 cm | 166 cm | 176 cm |
| Rider Max Height | 157 cm | 169 cm | 179 cm | 185 cm |
About this model
San Anselmo DS2 belongs to the Marin San Anselmo model. Marin launched 29 bikes of this model so far. You can get a glimpse at all models from 2024, by clicking on this link.
Model range prices
Marin San Anselmo DS1 2024 is the most economical model, with a starting price of 599$. Marin San Anselmo DS2 2024 on the other hand costs 699$, and is the most expensive model.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Hybrid bikes
If you want an acceptable Hybrid bike you should know that the average price is 562$. However, this doesn’t mean that if you spend less money on a Hybrid bike, you couldn’t get a decent one. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
This bike was released in 2024 and its price was 699$. Doing a quick comparison, we notice that San Anselmo DS2 price is 24.38% higher than the average cost of a Hybrid bike.
San Anselmo DS2 components
Fork
The San Anselmo DS2 comes factory-installed with the Suntour NEX fork. This has a travel range of 63mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels
The wheels on San Anselmo DS2 are the 700c aluminum type. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Nothing is more important on a bike than its ability to brake properly. Marin San Anselmo DS2 is equipped with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 149 cm – 185 cm (4.89 ft – 6.07 ft). In conclusion, it won’t take much to find one that’s right for you.
