Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 140mm -
Fork RockShox 35 Silver
-
Groupset Deore -
Suspension Hardtail -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
157cm - 167cm
MD
164cm - 174cm
LG
171cm - 182cm
XL
179cm - 188cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
All New Series 3 6061 Aluminum, Double Butted Frame, Internal Cable Routing, 12x148mm Thru-Axle, 73mm Threaded BB
Suspension Fork
RockShox FS35 Silver, 110x15mm Boost Spacing, 140mm Travel, Maxle Stealth
Drivetrain
Rear Derailleur
Shimano Deore, 11-Speed, SGS
Front Derailleur
-
Shift Levers
Shimano Deore, 11-Speed, SL-5100R
Cassette
SunRace, 11-Speed, 11-51T, ED Black
Crank
Marin Forged Alloy, Integrated Steel 32T Narrow Wide Chainring, Boost Spacing
Bottom Bracket
External Sealed Cartridge Bearing
Chain
KMC X-11 Silver and Black
Pedals
Nylon Platform
Wheels
Front Hub
Forged Alloy, 110x15mm, Sealed Cartridge Bearing, Disc, 32H
Rear Hub
Forged Alloy, 148x12, Disc, HG Freehub Body
Rims
Marin Aluminum Double Wall, Disc Specific, 29mm Inner, Pinned Joint, 32H, Tubeless Compatible
Tires
Vee Tire Co. Flow Snap, 27.5x2.6", MPC Compound, Wire Bead
Brakes
Brakes
Hydraulic Disc
Brake Levers
Shimano BR-MT201 Hydraulic
Cockpit
Stem
Marin 3D Forged Alloy, 35mm
Handlebar
Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm Rise, 5º Up, 9º Back
Grips
Marin Grizzly Lock On
Headset
FSA No 57E, Semi-Sealed Cartridge Bearings, 1 1/8" x 1 1/2”
Seat
Saddle
Marin Speed Concept
Seatpost
TranzX, YSP18, 1x Remote, Size S 125mm Travel, Size M-XL 150mm Travel, 30.9mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.47 mm | 1.39 mm | 1.35 mm | 1.27 mm |
| Bottom Bracket Height | 316 mm | 316 mm | 316 mm | 316 mm |
| Front Center | 753 mm | 783 mm | 808 mm | 840 mm |
| Rake | 47 mm | 47 mm | 47 mm | 47 mm |
| Trail | 121 mm | 121 mm | 121 mm | 121 mm |
| Stack | 613 mm | 617.5 mm | 626.5 mm | 631 mm |
| Reach | 417 mm | 445 mm | 465 mm | 495 mm |
| Top Tube Length | 559.7 mm | 588.7 mm | 610.8 mm | 641.8 mm |
| Seat Tube Angle | 77 ° | 77 ° | 77 ° | 77 ° |
| Seat Tube Length | 310 mm | 340 mm | 375 mm | 414 mm |
| Head Tube Angle | 64 ° | 64 ° | 64 ° | 64 ° |
| Head Tube Length | 110 mm | 115 mm | 125 mm | 130 mm |
| Chainstay Length | 420 mm | 420 mm | 420 mm | 420 mm |
| Wheelbase | 1168 mm | 1198 mm | 1223 mm | 1255 mm |
| Bottom Bracket Drop | 50 mm | 50 mm | 50 mm | 50 mm |
| Standover Height | 622 mm | 651 mm | 659 mm | 676 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 157 cm | 164 cm | 171 cm | 179 cm |
| Rider Max Height | 167 cm | 174 cm | 182 cm | 188 cm |
About this model

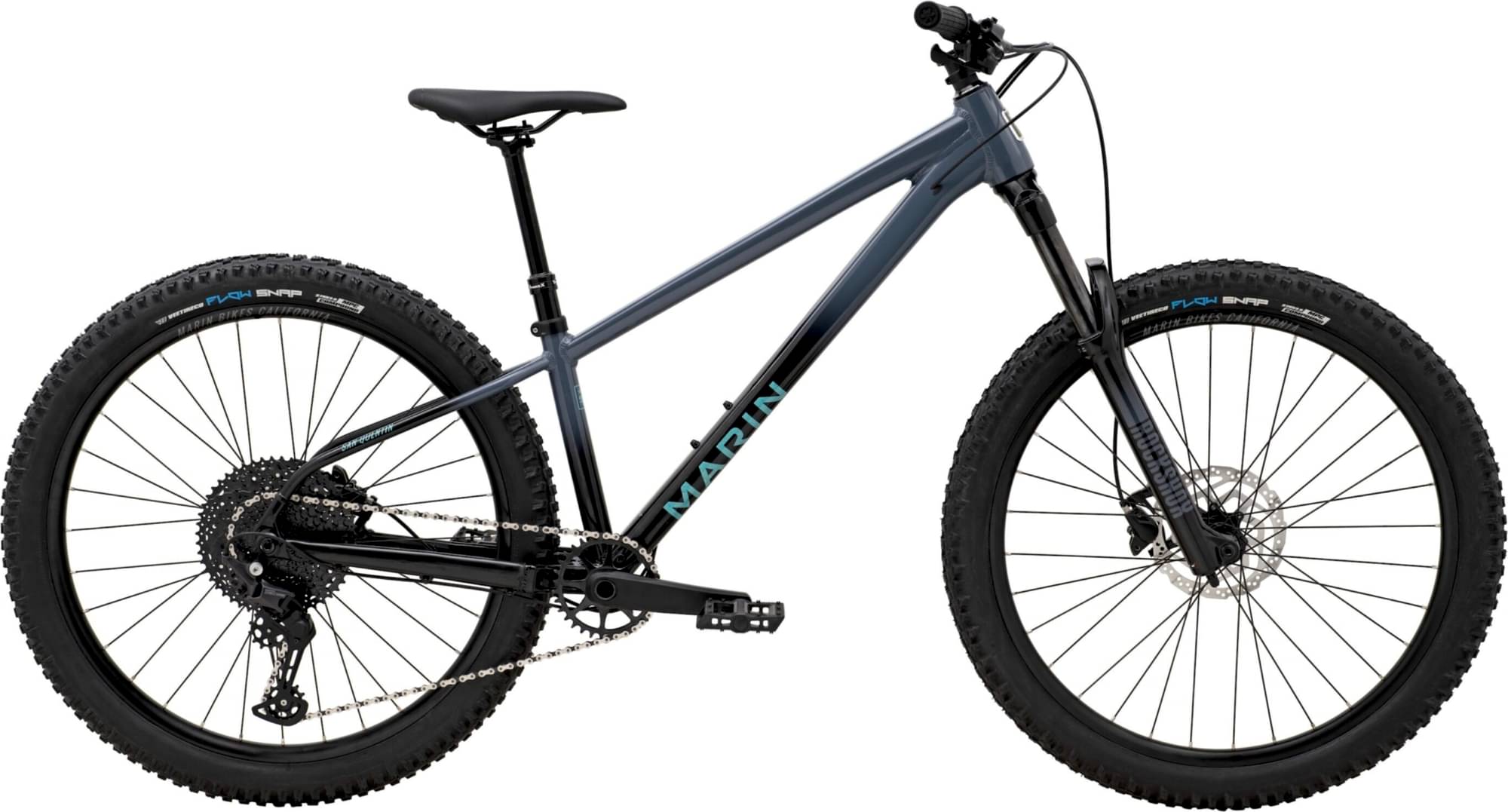

San Quentin 2 is part of the Marin San Quentin model. Marin launched 47 bikes of this model so far. You can easily view all of the Marin San Quentin bikes models from 2023, here.
Model range prices
Marin San Quentin 20″ 2023 is the most economical model, with a starting price of 699$. Marin San Quentin 27.5″ 3 2023 on the other hand costs 1843$, and is the most expensive model.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Trail bikes average price
If you want to purchase a solid Trail bike, it is important to know that the average cost is 2762$. However, this doesn’t mean that if you spend less money on a Trail bike, you couldn’t get a decent one. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
When Marin released this model in 2023, its price was 1399$. In conclusion, this bike price is 97.43% lower than the price of the average Trail bike.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
San Quentin 2 components
Fork
The fork installed on this bike is the RockShox 35 Silver model. The travel on this model is 140mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels
When leaving the production line, the San Quentin 2 model has 27.5″ aluminum wheels. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
Nothing is more important on a bike than its ability to brake properly. Marin San Quentin 2 is equipped with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Sizes
San Quentin 2 comes in 4 sizes, that range from 157 cm – 188 cm (5.15 ft – 6.17 ft). In short, you can easily find one that suits you.
Dropper post
Marin San Quentin 2 comes with a dropper post. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
