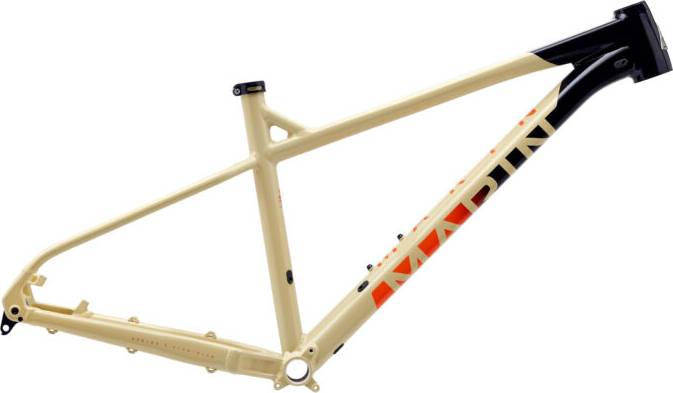

Marin San Quentin 3 Frame Kit 2020
2020 Mountain
Estimate price |
419$
Bike details
Overview
Key information split into simple groups.
Frame summary
-
Category -
Frame Aluminum -
Wheels 700c -
Suspension Rigid
Sizing
Recommended size guide.
SM
157cm - 167cm
MD
164cm - 174cm
LG
171cm - 179cm
XL
176cm - 182cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Series 3 6061 Aluminum, Double Butted Frame, Internal Shifter & Dropper Post Routing, External Brake, 12x148mm Thru Axle, 73mm Threaded BB
Drivetrain
Bottom Bracket
BSA, 73mm, threaded
Cockpit
Headset
FSA No 57E, Semi-Sealed Cartridge Bearings, 1 1/8" x 1 1/2”
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.39 mm | 1.33 mm | 1.29 mm | 1.25 mm |
| Bottom Bracket Height | 310 mm | 310 mm | 310 mm | 310 mm |
| Front Center | 724 mm | 749 mm | 773 mm | 795 mm |
| Rake | 46 mm | 46 mm | 46 mm | 46 mm |
| Trail | 124 mm | 124 mm | 124 mm | 124 mm |
| Stack | 588.1 mm | 592.7 mm | 601.7 mm | 606.3 mm |
| Reach | 424 mm | 446 mm | 466 mm | 486 mm |
| Top Tube Length | 581.1 mm | 604.3 mm | 626.7 mm | 647.9 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 385 mm | 430 mm | 475 mm | 515 mm |
| Head Tube Angle | 65 ° | 65 ° | 65 ° | 65 ° |
| Head Tube Length | 105 mm | 110 mm | 120 mm | 125 mm |
| Chainstay Length | 427 mm | 427 mm | 427 mm | 427 mm |
| Wheelbase | 1146 mm | 1170 mm | 1195 mm | 1217 mm |
| Bottom Bracket Drop | 50 mm | 50 mm | 50 mm | 50 mm |
| Standover Height | 666 mm | 679 mm | 716 mm | 747 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 157 cm | 164 cm | 171 cm | 176 cm |
| Rider Max Height | 167 cm | 174 cm | 179 cm | 182 cm |
Model Overview
San Quentin 3 Frame Kit belongs to the Marin San Quentin model. Marin released 47 frames variations of this model so far. You can get a glimpse at all models from 2020, by clicking on this link.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Crosscountry frames average price
If you want an acceptable Crosscountry frame you should know that the average price is 1689$. However, even if your budget is less than the average, you might still be able to get a top-quality Crosscountry frame. To sum up, when you purchase your frame, make sure to check if it has reviews, and also do some components research.
When Marin released this model in 2020, its price was 419$. Comparing the average cost of a Crosscountry frame to this one, you will see that San Quentin 3 Frame Kit price is 303.1% smaller.
Internal Cable Routing
It’s also important to mention the internal cable routing that this frame has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
San Quentin 3 Frame Kit components
Sizes
Marin San Quentin 3 Frame Kit frame has 4 sizes, in the range of 157 cm – 182 cm (5.15 ft – 5.97 ft). In conclusion, it won’t take much to find one that’s right for you.
