Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 63mm -
Fork SunTour
-
Groupset Deore, Shimano -
Suspension Hardtail -
Motor Shimano 250W 50Nm mid-drive -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
151cm - 164cm
SM
159cm - 170cm
MD
165cm - 177cm
LG
171cm - 184cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Series 3 E 6061 Aluminum, 700C wheels, Post Mount Disc Specific Forged Dropouts, Fender, Rack and Integrated Kickstand Mounts
Suspension Fork
SR Suntour NCXE LOR, Remote Hydraulic Lockout, Adjustable Damping, 63mm Travel
Drivetrain
Rear Derailleur
Shimano Deore 10-Speed
Shift Levers
Shimano Deore
Cassette
Sunrace 10-Speed 11-42t
Crank
Shimano STEPS E6000
Bottom Bracket
STEPS, press-fit
Chain
Shimano Deore
Pedals
Dual Sport Platform
Wheels
Front Hub
Forged Aluminum Alloy, 6-Bolt Disc, 32H
Rear Hub
Forged Aluminum Alloy, 6-Bolt Disc, 32H
Rims
Marin Aluminum Double Wall, Disc Specific
Spokes
14g Black Stainless Steel
Tires
Schwalbe Marathon, 700Cx38, Green Guard Puncture Protection
Brakes
Brakes
Shimano BR-M365 Hydraulic Disc, 160mm Rotor
Brake Levers
Shimano Hydraulic
Cockpit
Stem
Marin 3D Forged Alloy
Handlebar
Marin Flat Top Riser
Grips
Marin Locking Ergonomic
Headset
FSA Orbit CE No. 8D
Seat
Saddle
Marin City + Sport Plush
Seatpost
Marin Alloy
Motor & Battery
Motor
Shimano STEPS E6000, 44T Chainring
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG |
|---|---|---|---|---|
| Stack Reach Ratio | 1.55 mm | 1.63 mm | 1.64 mm | 1.66 mm |
| Bottom Bracket Height | 295 mm | 295 mm | 295 mm | 295 mm |
| Front Center | 637 mm | 634 mm | 650 | 663 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 87 mm | 80 mm | 80 mm | 80 mm |
| Stack | 589 mm | 617 mm | 636 mm | 654 mm |
| Reach | 381 mm | 379 mm | 388 mm | 394 mm |
| Top Tube Length | 562 mm | 569 mm | 589 mm | 601 mm |
| Seat Tube Angle | 73 ° | 73 ° | 72.5 ° | 72.5 ° |
| Seat Tube Length | 482 mm | 520 mm | 550 mm | 580 mm |
| Head Tube Angle | 69 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 110 mm | 135 mm | 155 mm | 175 mm |
| Chainstay Length | 482 mm | 482 mm | 482 mm | 482 mm |
| Wheelbase | 1111 mm | 1108 mm | 1124 mm | 1137 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm | 65 mm |
| Standover Height | 745 mm | 782 mm | 809 mm | 835 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 151 cm | 159 cm | 165 cm | 171 cm |
| Rider Max Height | 164 cm | 170 cm | 177 cm | 184 cm |
About this model

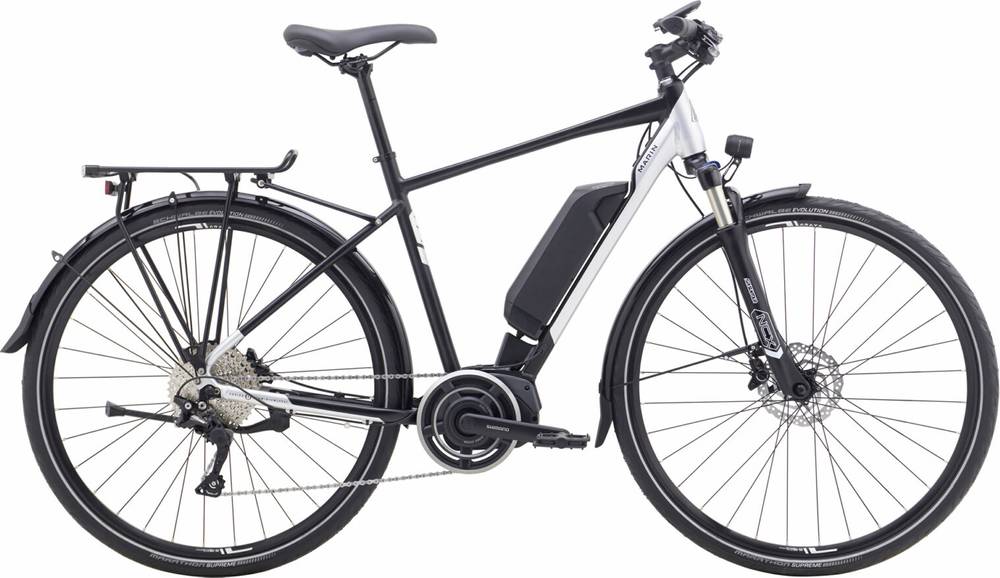

San Rafael DS-E Deore is a Marin E San Rafael model. Marin released 5 e-bikes variations of this model so far. You can easily view all of the Marin E San Rafael e-bikes models from 2018, here.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Commuter e-bikes average price
According to our math, the average price for a trustworthy Commuter e-bike is 2569$. However, this doesn’t mean that if you spend less money on a Commuter e-bike, you couldn’t get a decent one. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
San Rafael DS-E Deore components
Fork
The SunTour is included from the factory. It has a travel distance of 63mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels
The San Rafael DS-E Deore 2018 e-bike is equipped with 700c aluminum wheels when leaving the factory. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Sizes
This e-bike is available in 4 sizes. They vary from 151 cm – 184 cm (4.95 ft – 6.04 ft). In conclusion, it won’t take much to find one that’s right for you.
