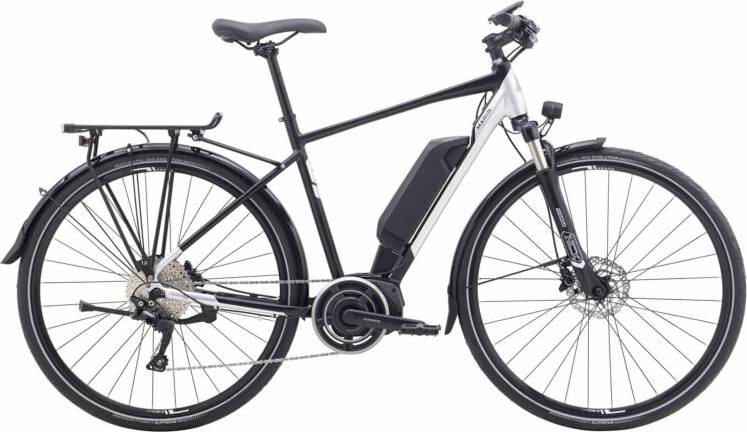

Marin San Rafael DS-E Deore 2019
2019 E-bike
Estimate price |
2,849$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 63mm -
Fork SunTour
-
Groupset Deore, Shimano -
Suspension Hardtail -
Motor Shimano 250W 50Nm mid-drive -
Battery Shimano Steps, 36V, 418 Wh -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Series 3 E 6061 Aluminum, 700C wheels, Post Mount Disc Specific Forged Dropouts, Fender, Rack and Integrated Kickstand Mounts
Suspension Fork
SR Suntour NCXE LOR, Remote Hydraulic Lockout, Adjustable Damping, 63mm Travel
Drivetrain
Rear Derailleur
Shimano Deore 10-Speed
Shift Levers
Shimano Deore
Cassette
Sunrace 10-Speed 11-42t
Crank
Shimano STEPS E6000
Bottom Bracket
STEPS, press-fit
Chain
Shimano Deore
Pedals
Dual Sport Platform
Wheels
Front Hub
Forged Aluminum Alloy, 6-Bolt Disc, 32H
Rear Hub
Forged Aluminum Alloy, 6-Bolt Disc, 32H
Rims
Marin Aluminum Double Wall, Disc Specific
Spokes
14g Black Stainless Steel
Tires
Continental, E-Contact, 700Cx42, Reflective Sidewall, Puncture Protection
Brakes
Brakes
Shimano BR-M365 Hydraulic Disc, 160mm Rotor
Brake Levers
Shimano Hydraulic
Cockpit
Stem
Marin 3D Forged Alloy
Handlebar
Marin Flat Top Riser
Grips
Marin Locking Ergonomic
Headset
FSA Orbit CE No. 8D
Seat
Saddle
Marin City + Sport Plush
Seatpost
Marin Alloy
Motor & Battery
Motor
Shimano STEPS E6000, 44T Chainring
Battery
Shimano Steps, 36V, 418 Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.55 mm | 1.63 mm | 1.64 mm | 1.66 mm |
| Bottom Bracket Height | 295 mm | 295 mm | 295 mm | 295 mm |
| Front Center | 637 mm | 634 mm | 650 | 663 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 87 mm | 80 mm | 80 mm | 80 mm |
| Stack | 589 mm | 617 mm | 636 mm | 654 mm |
| Reach | 381 mm | 379 mm | 388 mm | 394 mm |
| Top Tube Length | 562 mm | 569 mm | 589 mm | 601 mm |
| Seat Tube Angle | 73 ° | 73 ° | 72.5 ° | 72.5 ° |
| Seat Tube Length | 482 mm | 520 mm | 550 mm | 580 mm |
| Head Tube Angle | 69 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 110 mm | 135 mm | 155 mm | 175 mm |
| Chainstay Length | 482 mm | 482 mm | 482 mm | 482 mm |
| Wheelbase | 1111 mm | 1108 mm | 1124 mm | 1137 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm | 65 mm |
| Standover Height | 745 mm | 782 mm | 809 mm | 835 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
San Rafael DS-E Deore is part of the Marin E San Rafael model. Marin launched 5 e-bikes of this model so far. Check out the entire range from 2019 of this model, by clicking this link.
Model range prices
The most economical model, the Marin San Rafael DS-E Deore 2019 has a starting price of 2849$. Marin San Rafael DS-E 2019 on the other hand is the most expensive at 3199$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Commuter e-bikes average price
If you want to purchase a solid Commuter e-bike, it is important to know that the average cost is 2569$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Commuter e-bike. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
Furthermore, this bike was made available in 2019 for 2849$. In conclusion, this e-bike price is 10.9% more expensive than the price of the average Commuter e-bike.
San Rafael DS-E Deore components
Fork
The SunTour is included from the factory. It has a travel distance of 63mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels size
When it comes to wheels, the San Rafael DS-E Deore e-bike is equipped with the 700c aluminum model. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
For your safety, it is important to have quality breaks on your bike. Marin San Rafael DS-E Deore has Hydraulic Disc brakes installed. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
This e-bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, finding one for you shouldn’t be a problem.
