Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 63mm -
Fork SunTour NEX
-
Groupset Acera, Tourney -
Suspension Hardtail -
Drivetrain 2 × 8 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
149cm - 157cm
SM
160cm - 169cm
MD
166cm - 179cm
LG
176cm - 189cm
XL
187cm - 193cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Series 2 Dual Sport, 6061 Aluminum, 700C Wheels, Disc Brake
Suspension Fork
SR Suntour NEX Disc HLO, 63mm Travel, Hydraulic Lockout, Preload Adjustment
Drivetrain
Rear Derailleur
Shimano Acera 8-Speed
Front Derailleur
Shimano FD-TY710
Shift Levers
Shimano RapidFire Plus 2x8
Cassette
SunRace 8-Speed, 11-34T
Crank
Forged Alloy Crank, 46/30T, Ring Guard
Bottom Bracket
Sealed Cartridge Bearings, Square Taper
Chain
KMC Z-8.3
Pedals
Dual Sport Platform
Wheels
Front Hub
Forged Aluminum Alloy, 32H
Rear Hub
Forged Aluminum Alloy, 32H
Rims
Marin Aluminum Double Wall, Disc Specific
Tires
Vee Tire, Rail, 700x40, Wire Bead
Brakes
Brake Levers
Tektro Hydraulic
Cockpit
Stem
Marin Alloy, 31.8mm Clamp
Handlebar
Marin Alloy Riser
Grips
Marin Ergonomic Locking
Headset
FSA No.10-P
Seat
Saddle
Marin Fitness Plush
Seatpost
Marin Alloy, 27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.54 mm | 1.59 mm | 1.58 mm | 1.56 mm | 1.58 mm |
| Bottom Bracket Height | 291 mm | 291 mm | 291 mm | 291 mm | 291 mm |
| Front Center | 616 mm | 615 mm | 625 mm | 645 mm | 657 mm |
| Rake | 41 mm | 41 mm | 41 mm | 41 mm | 41 mm |
| Trail | 80 mm | 80 mm | 80 mm | 80 mm | 80 mm |
| Stack | 586.99 mm | 596.41 mm | 605.85 mm | 619.99 mm | 638.84 mm |
| Reach | 380.43 mm | 375.94 mm | 382.26 mm | 398.04 mm | 403.28 mm |
| Top Tube Length | 554.9 mm | 558.9 mm | 568.1 mm | 588.2 mm | 599.2 mm |
| Seat Tube Angle | 73.5 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 381 mm | 431.8 mm | 482.6 mm | 520.7 mm | 558.8 mm |
| Head Tube Angle | 70.5 ° | 70.5 ° | 70.5 ° | 70.5 ° | 70.5 ° |
| Head Tube Length | 100 mm | 110 mm | 120 mm | 135 mm | 155 mm |
| Chainstay Length | 443 mm | 443 mm | 443 mm | 443 mm | 443 mm |
| Wheelbase | 1052 mm | 1051 mm | 1060 mm | 1081 mm | 1093 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm | 60 mm |
| Standover Height | 658 mm | 704 mm | 747 mm | 779 mm | 813 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 149 cm | 160 cm | 166 cm | 176 cm | 187 cm |
| Rider Max Height | 157 cm | 169 cm | 179 cm | 189 cm | 193 cm |

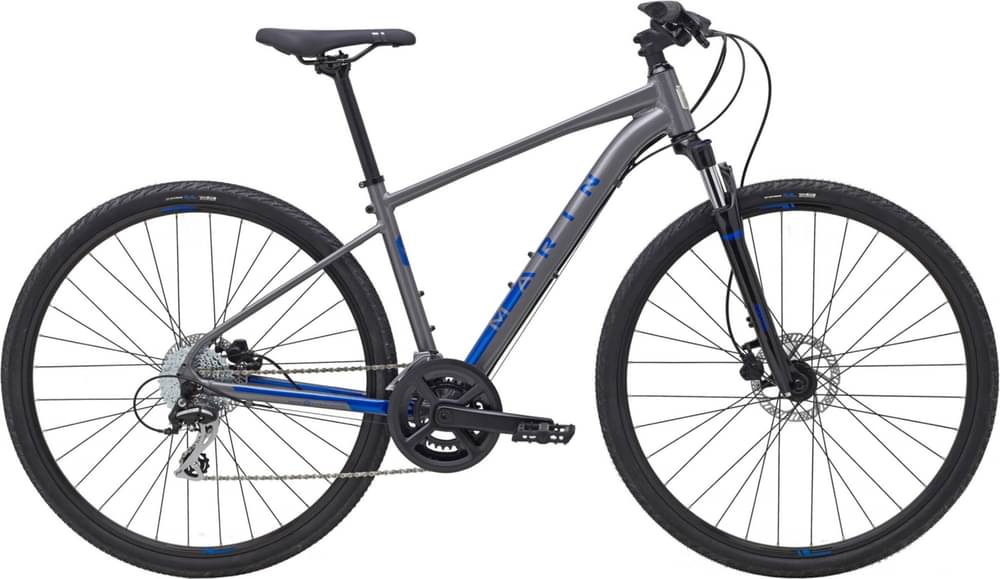

About this model
San Rafael DS2 is a Marin San Rafael model. Marin launched 29 bikes of this model so far. You can get a glimpse at all models from 2022, by clicking on this link.
Model range prices
Marin San Rafael DS1 2022 is the most affordable bike of this model and has a price of 689$. On the other hand, Marin San Rafael DS2 2022, is the most expensive and costs 799$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Commuter bikes
If you want an acceptable Commuter bike you should know that the average price is 762$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Commuter bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
At the moment of the release date, Marin San Rafael DS2 price was 799$. In conclusion, this bike price is 4.86% higher than the price of the average Commuter bike.
San Rafael DS2 components
Fork
The San Rafael DS2 comes factory-installed with the SunTour NEX fork. This has a travel range of 63mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels size
When leaving the production line, the San Rafael DS2 model has 700c aluminum wheels. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Nothing is more important on a bike than its ability to brake properly. Marin San Rafael DS2 is equipped with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Sizes
San Rafael DS2 comes in 5 sizes, that range from 149 cm – 193 cm (4.89 ft – 6.33 ft). In conclusion, you won’t have a problem finding one that suits you.
