Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 63mm -
Fork Suntour NEX
-
Groupset Acera, Tourney -
Suspension Hardtail -
Drivetrain 2 × 8 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
149cm - 157cm
SM
160cm - 169cm
MD
166cm - 179cm
LG
176cm - 189cm
XL
187cm - 193cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Series 2 Dual Sport, 6061 Aluminum, 700C Wheels, Disc Brake
Suspension Fork
SR/Suntour NEX Disc HLO, 63mm Travel, Hydraulic Lockout, Preload Adjustment
Drivetrain
Rear Derailleur
Shimano Acera 8-Speed
Front Derailleur
Shimano FD-TY710
Shift Levers
microSHIFT TS39, 8-Speed
Cassette
SunRace 8-Speed, 11-34T
Crank
Forged Alloy Crank, 46/30T, Ring Guard
Bottom Bracket
Sealed Cartridge Bearings, Square Taper
Chain
KMC Z8
Pedals
Dual Sport Platform
Wheels
Front Hub
Forged Aluminum Alloy, Disc, 32H
Rear Hub
Forged Aluminum Alloy, Disc, 32H
Rims
Marin Aluminum Double Wall, Disc Specific
Tires
Vee Tire Co. Rail, 700x40, Wire Bead
Brakes
Brakes
Hydraulic Disc
Brake Levers
Clark's Clout Hydraulic
Cockpit
Stem
Marin Alloy, 31.8mm Clamp
Handlebar
Marin Alloy Riser
Grips
Marin Ergonomic Locking
Headset
FSA No.10-P
Seat
Saddle
Marin Fitness Plush
Seatpost
Marin Alloy, 27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.54 mm | 1.59 mm | 1.58 mm | 1.56 mm | 1.58 mm |
| Bottom Bracket Height | 291 mm | 291 mm | 291 mm | 291 mm | 291 mm |
| Front Center | 616 mm | 615 mm | 625 mm | 645 mm | 657 mm |
| Rake | 41 mm | 41 mm | 41 mm | 41 mm | 41 mm |
| Trail | 80 mm | 80 mm | 80 mm | 80 mm | 80 mm |
| Stack | 586.99 mm | 596.41 mm | 605.85 mm | 619.99 mm | 638.84 mm |
| Reach | 380.43 mm | 375.94 mm | 382.26 mm | 398.04 mm | 403.28 mm |
| Top Tube Length | 554.9 mm | 558.9 mm | 568.1 mm | 588.2 mm | 599.2 mm |
| Seat Tube Angle | 73.5 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 381 mm | 431.8 mm | 482.6 mm | 520.7 mm | 558.8 mm |
| Head Tube Angle | 70.5 ° | 70.5 ° | 70.5 ° | 70.5 ° | 70.5 ° |
| Head Tube Length | 100 mm | 110 mm | 120 mm | 135 mm | 155 mm |
| Chainstay Length | 443 mm | 443 mm | 443 mm | 443 mm | 443 mm |
| Wheelbase | 1052 mm | 1051 mm | 1060 mm | 1081 mm | 1093 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm | 60 mm |
| Standover Height | 658 mm | 704 mm | 747 mm | 779 mm | 813 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 149 cm | 160 cm | 166 cm | 176 cm | 187 cm |
| Rider Max Height | 157 cm | 169 cm | 179 cm | 189 cm | 193 cm |
Model Overview

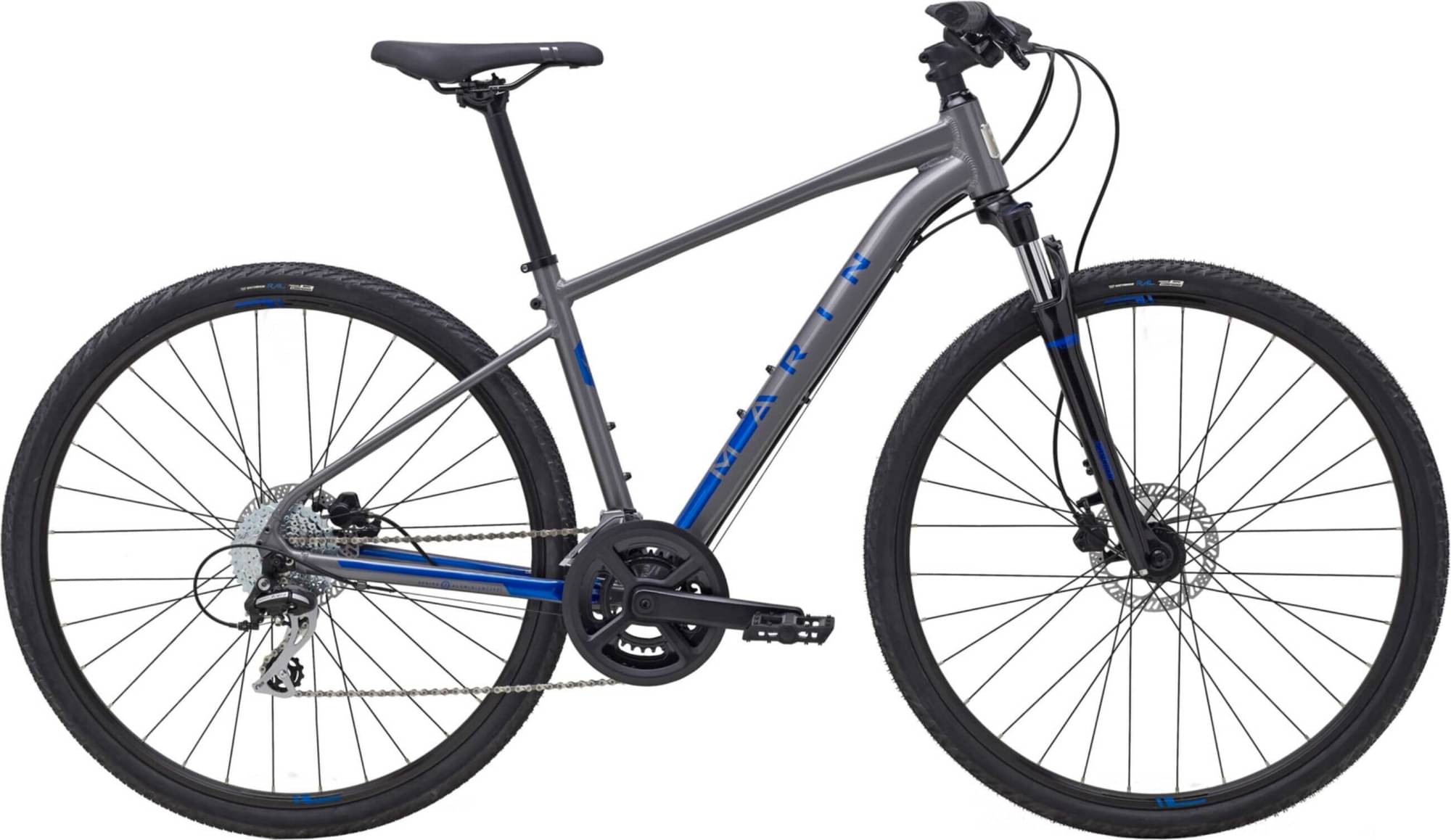

San Rafael DS2 is a Marin San Rafael model. Marin released 29 bikes variations of this model so far. Check out the entire range from 2023 of this model, by clicking this link.
Model range prices
Marin San Rafael DS1 2023 is the most economical model, with a starting price of 599$. Marin San Rafael DS2 2023 on the other hand costs 699$, and is the most expensive model.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Commuter bikes
Our math shows that the average cost of a dependable Commuter bike is 762$. However, even though the average price of a Commuter bike is lower, you might still be able to get a top-quality bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
When Marin released this model in 2023, its price was 699$. Doing a quick comparison, we notice that San Rafael DS2 price is 9.01% smaller than the average cost of a Commuter bike.
Overview of components
Fork
The San Rafael DS2 comes factory-installed with the Suntour NEX fork. This has a travel range of 63mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels size
When leaving the production line, the San Rafael DS2 model has 700c aluminum wheels. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The San Rafael DS2 comes with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Sizes
This bike is available in 5 sizes. They vary from 149 cm – 193 cm (4.89 ft – 6.33 ft). In conclusion, it won’t take much to find one that’s right for you.
