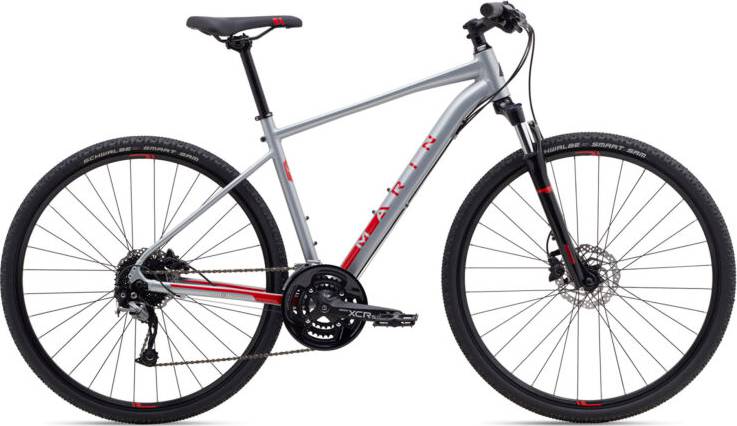

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 63mm -
Fork SunTour NEX
-
Groupset Alivio, Altus -
Suspension Hardtail -
Drivetrain 3 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Series 2 Dual Sport, 6061 Aluminum, 700C Wheels, Disc Brake
Suspension Fork
SR Suntour NEX Disc HLO, 63mm Travel, Hydraulic Lockout, Preload Adjustment
Drivetrain
Rear Derailleur
Shimano Alivio Shadow 9-Speed
Front Derailleur
Shimano Altus
Shift Levers
Shimano Altus 3x9-Speed
Cassette
Shimano Alivio 9-Speed, 11-34T
Crank
SR Suntour XCR6, 48/36/26T, Ring Guard
Bottom Bracket
Sealed Cartridge Bearings, Square Taper
Chain
KMC X9
Pedals
Dual Sport Platform
Wheels
Front Hub
Forged Aluminum Alloy, Centerlock Disc, 32H
Rear Hub
Forged Aluminum Alloy, Centerlock Disc, 32H
Rims
Marin Aluminum Double Wall, Disc Specific
Spokes
14g Black Stainless Steel
Tires
Vee Tire, Rail, 700x40, Wire Bead
Brakes
Brakes
Shimano BR-M201 Hydraulic Disc, 160mm Rotor
Brake Levers
Shimano Hydraulic
Cockpit
Stem
Marin Alloy
Handlebar
Marin Alloy Flat Top Riser
Grips
Marin Ergonomic Locking
Headset
FSA No.10-P
Seat
Saddle
Marin Fitness
Seatpost
Marin Alloy
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.54 mm | 1.59 mm | 1.58 mm | 1.56 mm | 1.58 mm |
| Bottom Bracket Height | 291 mm | 291 mm | 291 mm | 291 mm | 291 mm |
| Front Center | 616 mm | 615 mm | 625 mm | 645 mm | 657 mm |
| Rake | 41 mm | 41 mm | 41 mm | 41 mm | 41 mm |
| Trail | 80 mm | 80 mm | 80 mm | 80 mm | 80 mm |
| Stack | 586.99 mm | 596.41 mm | 605.85 mm | 619.99 mm | 638.84 mm |
| Reach | 380.43 mm | 375.94 mm | 382.26 mm | 398.04 mm | 403.28 mm |
| Top Tube Length | 554.9 mm | 558.9 mm | 568.1 mm | 588.2 mm | 599.2 mm |
| Seat Tube Angle | 73.5 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 381 mm | 431.8 mm | 482.6 mm | 520.7 mm | 558.8 mm |
| Head Tube Angle | 70.5 ° | 70.5 ° | 70.5 ° | 70.5 ° | 70.5 ° |
| Head Tube Length | 100 mm | 110 mm | 120 mm | 135 mm | 155 mm |
| Chainstay Length | 443 mm | 443 mm | 443 mm | 443 mm | 443 mm |
| Wheelbase | 1052 mm | 1051 mm | 1060 mm | 1081 mm | 1093 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm | 60 mm |
| Standover Height | 658 mm | 704 mm | 747 mm | 779 mm | 813 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
About this model
San Rafael DS3 is part of the Marin San Rafael model. Marin launched 29 bikes of this model so far. Take a sneak peek at all Marin San Rafael bikes models from 2019, by clicking here.
Model range prices
Marin San Rafael DS1 2019 is the most economical model, with a starting price of 489$. Marin San Rafael DS3 2019 on the other hand costs 709$, and is the most expensive model.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Commuter bikes
If you want an acceptable Commuter bike you should know that the average price is 762$. However, even though the average price of a Commuter bike is lower, you might still be able to get a top-quality bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Furthermore, this bike was made available in 2019 for 709$. Doing a quick comparison, we notice that San Rafael DS3 price is 7.48% lower than the average cost of a Commuter bike.
San Rafael DS3 components
Fork
The SunTour NEX is included from the factory. It has a travel distance of 63mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels
The wheels on San Rafael DS3 are the 700c aluminum type. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
Sizes
San Rafael DS3 comes in 5 sizes, that range from 156 cm – 195 cm (5.12 ft – 6.4 ft). In short, you can easily find one that suits you.
