Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 63mm -
Fork SunTour
-
Groupset X7, X5 -
Suspension Hardtail -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Series 3 6061 Aluminum w/ SHOT Tech, Relieved Head Tube and BB, Internal Cable Routing, Post Mount Disc Specific Forged Dropouts
Suspension Fork
SR Suntour NCXD LO, Hydraulic Lockout, Adjustable Damping, 63mm Travel
Drivetrain
Rear Derailleur
SRAM X7 Type 2.1 w/Clutch
Shift Levers
SRAM X5 10-Speed
Cassette
Sunrace 10-Speed, 11-42T
Crank
Forged Alloy 1x10, Hollow CrMo Spindle, Narrow-Wide 42T
Bottom Bracket
External Sealed Cartridge Bearing
Chain
KMC X10
Pedals
Aluminum Platform
Wheels
Front Hub
Formula, 6-Bolt Disc, 32H
Rear Hub
Formula, 6-Bolt Disc, 32H
Rims
Maddux FR300, Double Wall, Disc Specific, 19mm Inner
Tires
WTB Nano Comp, 700x40C
Brakes
Brakes
Tektro Gemini Hydraulic Disc, 160mm Rotor
Brake Levers
Tektro Gemini Hydraulic
Cockpit
Stem
Marin 3D Forged Alloy
Handlebar
Marin Flat Top Riser
Grips
Marin Ergonomic Locking
Headset
FSA No.10-P
Seat
Saddle
Ergon SM30
Seatpost
Marin Carbon
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.54 mm | 1.59 mm | 1.58 mm | 1.56 mm | 1.58 mm |
| Bottom Bracket Height | 291 mm | 291 mm | 291 mm | 291 mm | 291 mm |
| Front Center | 616 mm | 615 mm | 625 mm | 645 mm | 657 mm |
| Rake | 41 mm | 41 mm | 41 mm | 41 mm | 41 mm |
| Trail | 80 mm | 80 mm | 80 mm | 80 mm | 80 mm |
| Stack | 586.99 mm | 596.41 mm | 605.85 mm | 619.99 mm | 638.84 mm |
| Reach | 380.43 mm | 375.94 mm | 382.26 mm | 398.04 mm | 403.28 mm |
| Top Tube Length | 554.9 mm | 558.9 mm | 568.1 mm | 588.2 mm | 599.2 mm |
| Seat Tube Angle | 73.5 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 381 mm | 431.8 mm | 482.6 mm | 520.7 mm | 558.8 mm |
| Head Tube Angle | 70.5 ° | 70.5 ° | 70.5 ° | 70.5 ° | 70.5 ° |
| Head Tube Length | 100 mm | 110 mm | 120 mm | 135 mm | 155 mm |
| Chainstay Length | 443 mm | 443 mm | 443 mm | 443 mm | 443 mm |
| Wheelbase | 1052 mm | 1051 mm | 1060 mm | 1081 mm | 1093 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm | 60 mm |
| Standover Height | 658 mm | 704 mm | 747 mm | 779 mm | 813 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |

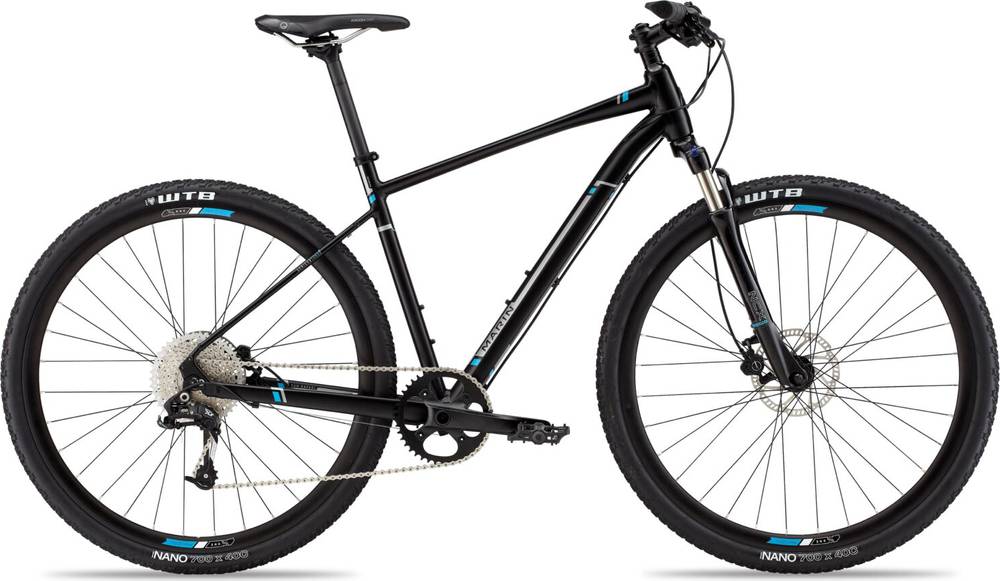

Model Overview
San Rafael DS5 is a Marin San Rafael model. Marin released 29 bikes variations of this model so far. You can easily view all of the Marin San Rafael bikes models from 2016, here.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Commuter bikes
If you want an acceptable Commuter bike you should know that the average price is 762$. However, you could also get a good Commuter bike even if you pay a lower amount than the average price. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
Overview of components
Fork
The SunTour is included from the factory. It has a travel distance of 63mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels size
When it comes to wheels, the San Rafael DS5 bike is equipped with the 700c aluminum model. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The San Rafael DS5 comes with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Sizes
Marin San Rafael DS5 bike has 5 sizes, in the range of 156 cm – 195 cm (5.12 ft – 6.4 ft). In conclusion, you won’t have a problem finding one that suits you.
