Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Travel Front 63mm -
Fork Suntour NVX
-
Groupset Deore -
Suspension Hardtail -
Motor Shimano 250W 85Nm mid-drive -
Battery Shimano BTEN605, 504Wh -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
157cm - 169cm
MD
166cm - 179cm
LG
176cm - 189cm
XL
187cm - 193cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Series 3 Butted and Formed 6061 Aluminum, 650B Wheel, Forged Motor Mount, Hydroformed Downtube Battery Mount, Integrated Wiring, Internal Housing, Kickstand, Rack, and Fender Mounts
Suspension Fork
SR/Suntour NVX-E, 63mm Travel, Disc Specific
Drivetrain
Rear Derailleur
Shimano Deore 11-Speed
Shift Levers
Shimano Deore 11-Speed
Cassette
Shimano Deore 11-Speed 11-51T
Crank
Forged Aluminum w/ 44T Steel Chairing
Bottom Bracket
-
Chain
KMC E11S
Pedals
Nylon Platform
Wheels
Front Hub
Forged Alloy, Disc Specific, 32H
Rear Hub
Forged Alloy, Disc Specific, 32H
Rims
Marin Aluminum Double Wall, Disc Specific
Spokes
14g Black Stainless Steel
Tires
WTB Horizon, 650Bx47, Wire Bead
Brakes
Brakes
Hydraulic Disc
Brake Levers
Shimano MT201 Hydraulic
Cockpit
Stem
Marin Alloy
Handlebar
Marin Mini Riser Alloy
Grips
Marin County
Headset
FSA No. 57E
Seat
Saddle
Marin City Plush
Seatpost
Marin Alloy, 30.9mm
Motor & Battery
Motor
Shimano Steps EP6 Drive Unit, 250W, 85Nm, Class 3 (28mph, 45Km/h)
Battery
Shimano BTEN605, 504Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.553 mm | 1.525 mm | 1.52 mm | 1.532 mm |
| Bottom Bracket Height | 296.5 mm | 296.5 mm | 296.5 mm | 296.5 mm |
| Front Center | 632 mm | 668 mm | 698 mm | 724 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 76 mm | 76 mm | 76 mm | 76 mm |
| Stack | 590 mm | 617.7 mm | 645.8 mm | 673.9 mm |
| Reach | 380 mm | 405 mm | 425 mm | 440 mm |
| Top Tube Length | 549 mm | 582 mm | 610.2 mm | 633.2 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 430 mm | 480 mm | 520 mm | 558 mm |
| Head Tube Angle | 69.5 ° | 69.5 ° | 69.5 ° | 69.5 ° |
| Head Tube Length | 120 mm | 150 mm | 180 mm | 210 mm |
| Chainstay Length | 455 mm | 455 mm | 455 mm | 455 mm |
| Wheelbase | 1083 mm | 1118 mm | 1149 mm | 1174 mm |
| Bottom Bracket Drop | 45 mm | 45 mm | 45 mm | 45 mm |
| Standover Height | 679 mm | 717 mm | 747 mm | 784 mm |
| Wheels | 650 | 650 | 650 | 650 |
| Rider Min Height | 157 cm | 166 cm | 176 cm | 187 cm |
| Rider Max Height | 169 cm | 179 cm | 189 cm | 193 cm |
About this model

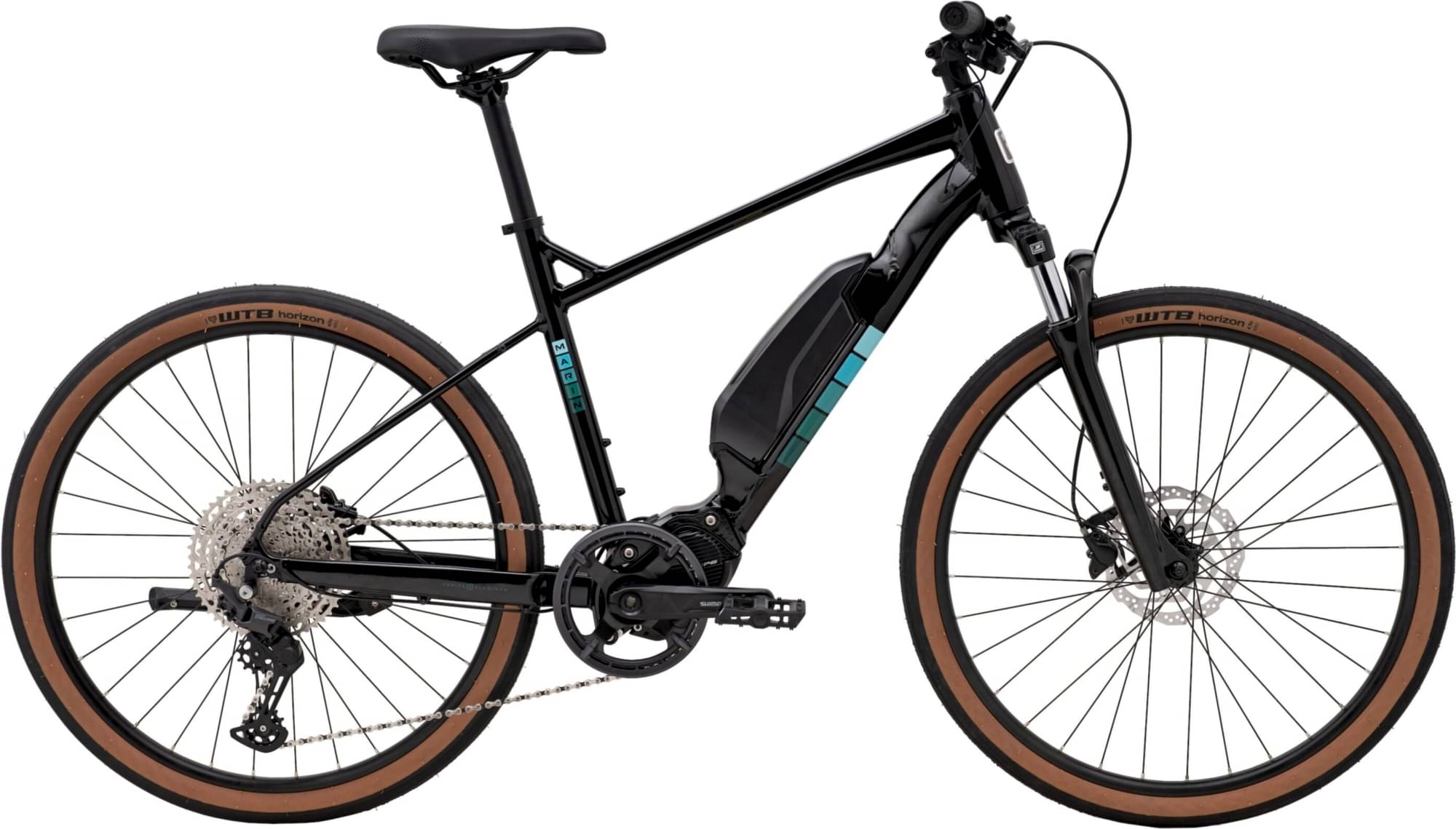

Sausalito E2 is a Marin E Sausalito model. Marin released 17 e-bikes variations of this model so far. Take a sneak peek at all Marin E Sausalito e-bikes models from 2024, by clicking here.
Model range prices
Marin Sausalito ST E1 2024 is the most economical model, with a starting price of 2399$. Marin Sausalito E2 2024 on the other hand costs 3578$, and is the most expensive model.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
General Urban e-bikes average price
According to our math, the average price for a trustworthy General Urban e-bike is 2098$. However, even if your budget is less than the average, you might still be able to get a top-quality General Urban e-bike. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
At the moment of the release date, Marin Sausalito E2 price was 3578$. If we compare this with the average General Urban e-bike cost we notice that the price is 70.54% more expensive.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
Overview of components
Fork
Marin Sausalito E2 2024 e-bike is equipped with the Suntour NVX fork, and has 63mm travel. Bike forks are great for shock absorption and provide you with a smooth ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels size
The Sausalito E2 2024 e-bike is equipped with aluminum wheels when leaving the factory. 650b wheels make a great choice if you want to sacrifice speed for comfort. However, if speed is what you’re after, 700c wheels are a better fit.
Brakes
Nothing is more important on a bike than its ability to brake properly. Marin Sausalito E2 is equipped with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Sizes
Sausalito E2 comes in 4 sizes, that range from 157 cm – 193 cm (5.15 ft – 6.33 ft). In short, it won’t be difficult to find the right one for you.
