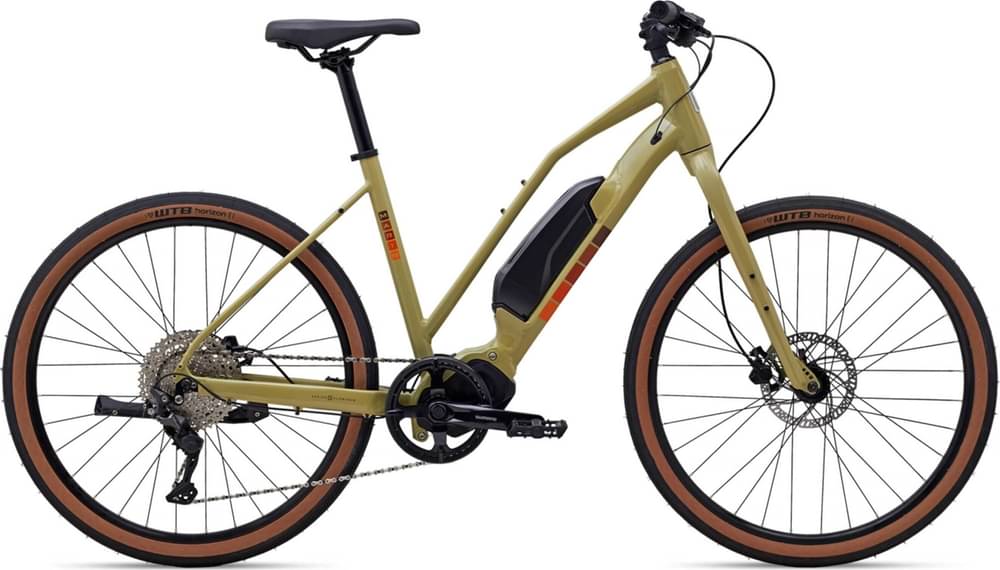

Marin Sausalito ST E1 2021
2021 E-bike
Estimate price |
2,479$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 650b -
Groupset Deore, Shimano -
Suspension Rigid -
Motor Shimano 250W 40Nm mid-drive -
Battery Shimano BT6010, 418Wh -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
157cm - 169cm
MD
166cm - 179cm
LG
176cm - 188cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Series 3 Butted and Formed 6061 Aluminum, 650B Wheel, Low-Step Design, Forged Motor Mount, Hydroformed Downtube Battery Mount, Integrated Wiring, Internal Housing, Kickstand, Rack, and Fender Mounts
Suspension Fork
Steel, Moto Blade, Disc Specific, Fender and Rack Eyelets
Drivetrain
Rear Derailleur
Shimano Deore 10-Speed
Front Derailleur
-
Shift Levers
Shimano Deore 10-Speed
Cassette
Shimano Deore 10-Speed 11-46T
Crank
Shimano, Aluminum w/ 44T Steel Chairing
Bottom Bracket
-
Chain
KMC X10E
Pedals
Nylon Platform
Wheels
Front Hub
Forged Alloy, Disc Specific, 32H
Rear Hub
Forged Alloy, Disc Specific, 32H
Rims
Marin Aluminum Double Wall, Disc Specific
Tires
WTB Horizon, 650Bx47, Wire Bead
Brakes
Brake Levers
Tektro Hydraulic
Cockpit
Stem
Marin Alloy
Handlebar
Marin MiniRiser Alloy
Grips
Marin Adventure
Headset
FSA No. 57E
Seat
Saddle
Marin City Plush
Seatpost
Marin Alloy, 27.2mm
Motor & Battery
Motor
Shimano STEPS E5000 System
Battery
Shimano BT6010, 418Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.56 mm | 1.53 mm | 1.52 mm |
| Bottom Bracket Height | 296.5 mm | 296.5 mm | 296.5 mm |
| Front Center | 632 mm | 668 mm | 698 mm |
| Rake | 44 mm | 44 mm | 44 mm |
| Trail | 76 mm | 76 mm | 76 mm |
| Stack | 586 mm | 613.7 mm | 641.8 mm |
| Reach | 376 mm | 401 mm | 421 mm |
| Top Tube Length | 545 mm | 578 mm | 606.2 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 430 mm | 480 mm | 520 mm |
| Head Tube Angle | 69.5 ° | 69.5 ° | 69.5 ° |
| Head Tube Length | 120 mm | 150 mm | 180 mm |
| Chainstay Length | 451 mm | 451 mm | 451 mm |
| Wheelbase | 1079 mm | 1114 mm | 1145 mm |
| Bottom Bracket Drop | 45 mm | 45 mm | 45 mm |
| Standover Height | 456 mm | 483 mm | 506 mm |
| Wheels | 650 | 650 | 650 |
| Rider Min Height | 157 cm | 166 cm | 176 cm |
| Rider Max Height | 169 cm | 179 cm | 188 cm |
About this model
Sausalito ST E1 is part of the Marin E Sausalito model. Marin launched 12 e-bikes of this model so far. Take a sneak peek at all Marin E Sausalito e-bikes models from 2021, by clicking here.
Model range prices
Marin Sausalito ST E1 2021 is the most affordable e-bike of this model and has a price of 2479$. On the other hand, Marin Sausalito E2 2021, is the most expensive and costs 2889$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
General Urban e-bikes average price
If you want to purchase a solid General Urban e-bike, it is important to know that the average cost is 2098$. However, you could also get a good General Urban e-bike even if you pay a lower amount than the average price. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
This e-bike was released in 2021 and its price was 2479$. In conclusion, this e-bike price is 18.16% higher than the price of the average General Urban e-bike.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
Sausalito ST E1 components
Fork material
The fork is made out of steel, which tends to be more flexible than carbon forks in general. However, a carbon fork is considerably lighter.
Wheels
The wheels on Sausalito ST E1 are the aluminum type. 650b wheels make a great choice if you want to sacrifice speed for comfort. However, if speed is what you’re after, 700c wheels are a better fit.
Brakes
When you want to stop the bike in time, the brakes are vital. The Sausalito ST E1 has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Sizes
Marin Sausalito ST E1 e-bike has 3 sizes, in the range of 157 cm – 188 cm (5.15 ft – 6.17 ft). In conclusion, finding one for you shouldn’t be a problem.
