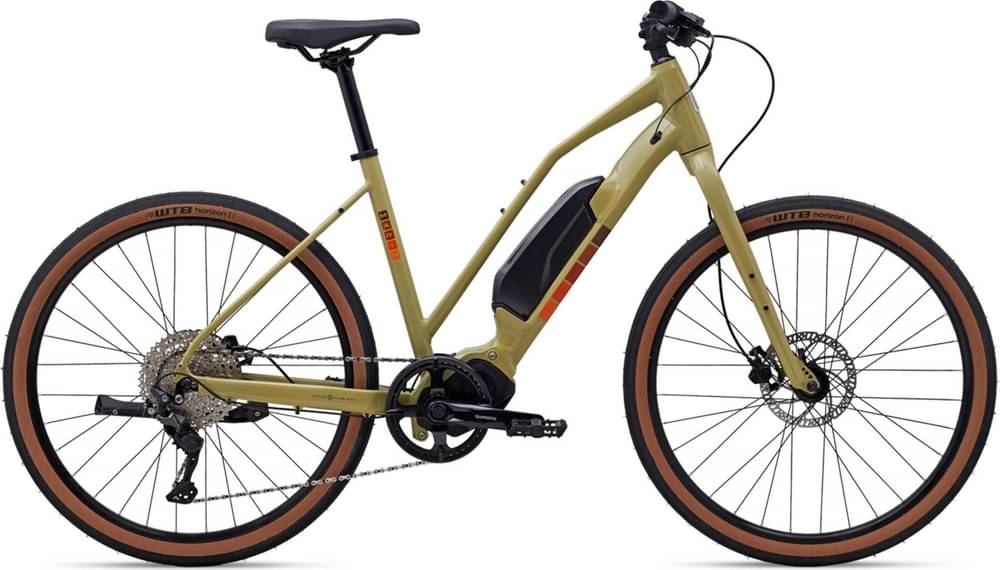

Marin Sausalito ST E1 2022
2022 E-bike
Estimate price |
2,499$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 650b -
Groupset Deore, Shimano -
Suspension Rigid -
Motor Shimano 250W 40Nm mid-drive -
Battery Shimano BT6010, 418Wh -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
157cm - 169cm
MD
166cm - 179cm
LG
176cm - 188cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Series 3 Butted and Formed 6061 Aluminum, 650B Wheel, Low-Step Design, Forged Motor Mount, Hydroformed Downtube Battery Mount, Integrated Wiring, Internal Housing, Kickstand, Rack, and Fender Mounts
Suspension Fork
Steel, Moto Blade, Disc Specific, Fender and Rack Eyelets
Drivetrain
Rear Derailleur
Shimano Deore 10-Speed
Front Derailleur
-
Shift Levers
Shimano Deore 10-Speed
Cassette
Shimano Deore 10-Speed 11-46T
Crank
Shimano, Aluminum w/ 44T Steel Chairing
Bottom Bracket
-
Chain
KMC X10E
Pedals
Nylon Platform
Wheels
Front Hub
Forged Alloy, Disc Specific, 32H
Rear Hub
Forged Alloy, Disc Specific, 32H
Rims
Marin Aluminum Double Wall, Disc Specific
Tires
WTB Horizon, 650Bx47, Wire Bead
Brakes
Brake Levers
Tektro Hydraulic
Cockpit
Stem
Marin Alloy
Handlebar
Marin MiniRiser Alloy
Grips
Marin Adventure
Headset
FSA No. 57E
Seat
Saddle
Marin City Plush
Seatpost
Marin Alloy, 30.9mm
Motor & Battery
Motor
Shimano STEPS E5000 System
Battery
Shimano BT6010, 418Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.56 mm | 1.53 mm | 1.52 mm |
| Bottom Bracket Height | 296.5 mm | 296.5 mm | 296.5 mm |
| Front Center | 632 mm | 668 mm | 698 mm |
| Rake | 44 mm | 44 mm | 44 mm |
| Trail | 76 mm | 76 mm | 76 mm |
| Stack | 586 mm | 613.7 mm | 641.8 mm |
| Reach | 376 mm | 401 mm | 421 mm |
| Top Tube Length | 545 mm | 578 mm | 606.2 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 430 mm | 480 mm | 520 mm |
| Head Tube Angle | 69.5 ° | 69.5 ° | 69.5 ° |
| Head Tube Length | 120 mm | 150 mm | 180 mm |
| Chainstay Length | 451 mm | 451 mm | 451 mm |
| Wheelbase | 1079 mm | 1114 mm | 1145 mm |
| Bottom Bracket Drop | 45 mm | 45 mm | 45 mm |
| Standover Height | 456 mm | 483 mm | 506 mm |
| Wheels | 650 | 650 | 650 |
| Rider Min Height | 157 cm | 166 cm | 176 cm |
| Rider Max Height | 169 cm | 179 cm | 188 cm |
Model Overview
Sausalito ST E1 completes the Marin E Sausalito model. 12 e-bikes variations carry this model name so far. Check out the entire range from 2022 of this model, by clicking this link.
Model range prices
Marin Sausalito ST E1 2022 is the cheapest e-bike model and costs 2499$. Marin Sausalito E2 2022 is the most expensive one and costs 2899$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
General Urban e-bikes average price
According to our math, the average price for a trustworthy General Urban e-bike is 2098$. However, paying less money than this amount doesn’t mean that you couldn’t get a great General Urban e-bike. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
This e-bike was released in 2022 and its price was 2499$. Comparing this to the average General Urban e-bike price, we see that the price is 19.11% higher.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
Overview of components
Fork material
The fork is made out of steel, which is tougher than carbon in the case of an impact. However, it can add some extra weight to the e-bike.
Wheels size
When it comes to wheels, the Sausalito ST E1 e-bike is equipped with the aluminum model. 650b wheels make a great choice if you want to sacrifice speed for comfort. However, if you want higher speeds, you should look for a bike with 700c wheels.
Brakes
When you want to stop the bike in time, the brakes are vital. The Sausalito ST E1 has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Sizes
This e-bike is available in 3 sizes. They vary from 157 cm – 188 cm (5.15 ft – 6.17 ft). In short, it won’t be difficult to find the right one for you.
