Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset Deore, Alivio -
Suspension Rigid -
Drivetrain 3 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Series 3 6061 Aluminum w/ SHOT Tech, Women's Fit Geometry, Relieved Head Tube and BB, Internal Cable Routing, Post Mount Disc
Suspension Fork
Carbon w/ Alloy Steerer, Post-Mount Disc
Drivetrain
Rear Derailleur
Shimano Deore Shadow
Front Derailleur
Shimano Alivio
Shift Levers
Shimano Acera 9-Speed
Cassette
Shimano Acera 9-Speed, 11-34T
Crank
Shimano Acera, 48/36/26T, Ring Guard
Bottom Bracket
Sealed Cartridge Bearing, Square Taper
Chain
KMC X9
Pedals
Aluminum Platform
Wheels
Front Hub
Formula, 6-Bolt Disc, 32H
Rear Hub
Formula, 6-Bolt Disc, 32H
Rims
Double Wall, Disc Specific
Tires
Continental Contact II, 700x32C, Reflective Sidewall, Puncture Protection
Brakes
Brakes
Tektro Auriga WS Hydraulic Disc, 160mm Rotor
Brake Levers
Tektro Auriga WS Hydraulic w/ Women's Fit Levers
Cockpit
Stem
Marin 3D Forged Alloy
Handlebar
Marin Flat Top Riser
Grips
Marin Ergonomic Locking
Headset
FSA No.8B
Seat
Saddle
Marin Women's Fitness
Seatpost
Marin Alloy Light
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.45 mm | 1.47 mm | 1.48 mm | 1.5 mm |
| Bottom Bracket Height | 280 mm | 280 mm | 280 mm | 280 mm |
| Front Center | 591 mm | 606 mm | 621 mm | 636 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 63 mm | 63 mm | 63 mm | 63 mm |
| Stack | 555.89 mm | 574.97 mm | 594.04 mm | 613.11 mm |
| Reach | 382.74 mm | 392.09 mm | 401.44 mm | 409.94 mm |
| Top Tube Length | 548 mm | 563 mm | 578 mm | 598 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73 ° |
| Seat Tube Length | 381 mm | 431.8 mm | 482.6 mm | 520.7 mm |
| Head Tube Angle | 72.5 ° | 72.5 ° | 72.5 ° | 72.5 ° |
| Head Tube Length | 135 mm | 155 mm | 175 mm | 195 mm |
| Chainstay Length | 430 mm | 430 mm | 430 mm | 430 mm |
| Wheelbase | 1012 mm | 1027 mm | 1043 mm | 1057 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm | 65 mm |
| Standover Height | 611 mm | 654 mm | 698 mm | 732 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model

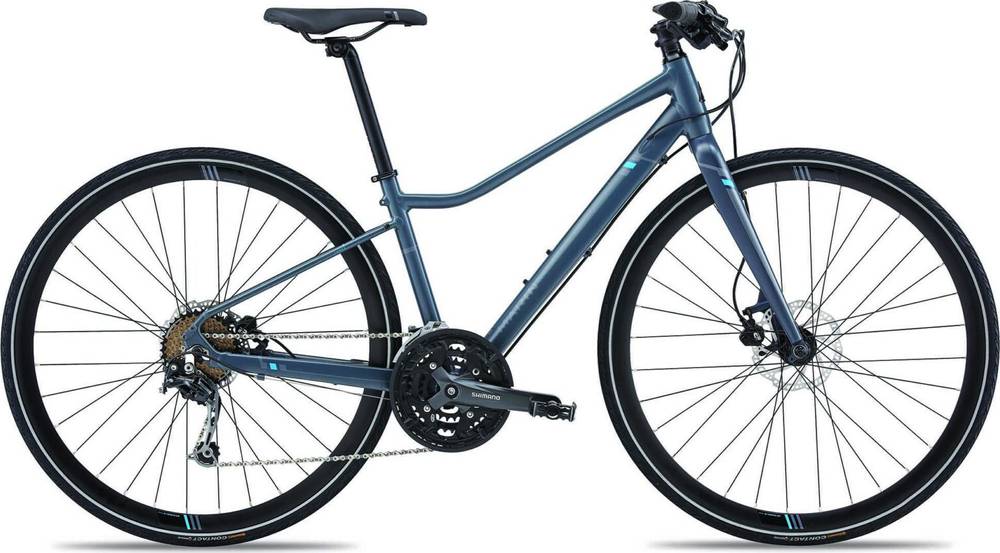

Terra Linda SC4 is a Marin Terra model. Marin released 17 bikes variations of this model so far. You can easily view all of the Marin Terra bikes models from 2016, here.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Fitness bikes
If you want an acceptable Fitness bike you should know that the average price is 656$. However, even if your budget is less than the average, you might still be able to get a top-quality Fitness bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
Overview of components
Fork material
When it comes to the fork, this bike has a carbon one, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels
When leaving the production line, the Terra Linda SC4 model has 700c aluminum wheels. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
Sizes
Terra Linda SC4 comes in 4 sizes, that range from 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, it won’t be difficult to find the right one for you.
