Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset Sora, FSA -
Suspension Rigid -
Drivetrain 2 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Series 3 Speed + Commute, 6061 Aluminum w/ SHOT Tech, 700C Wheels, Women's Fit Geometry, Relieved Head Tube and BB, Internal Cable Routing, Post Mount Disc Specific Forged Dropouts
Suspension Fork
Carbon w/ Alloy Steerer, Post-Mount Disc
Drivetrain
Rear Derailleur
Shimano Sora, Long Cage, 9-Speed
Front Derailleur
Shimano Sora
Shift Levers
Shimano Sora 2x9-speed
Cassette
Shimano HG200 9-Speed, 11-34T
Crank
FSA Vero Pro, Extra-Wide Compact, 48/32T
Bottom Bracket
Sealed Cartridge Bearings, Square Taper
Chain
KMC X9
Pedals
Commute Platform
Wheels
Front Hub
Forged Aluminum Alloy, 6-Bolt Disc, 32H
Rear Hub
Forged Aluminum Alloy, 6-Bolt Disc, 32H
Rims
Marin Aluminum Double Wall, 30mm Tall, Disc Specific
Spokes
14g Stainless Steel
Tires
Schwalbe Road Cruiser, 700Cx32, Kevlar Puncture Protection
Brakes
Brakes
Shimano BR-M315 Hydraulic Disc, 160mm Rotor
Brake Levers
Shimano BL-M315 Hydraulic
Cockpit
Stem
Marin 3D Forged Alloy
Handlebar
Marin Alloy Flat Top Riser
Grips
Marin Ergonomic Locking
Headset
FSA No.8B
Seat
Saddle
Marin Women's Fitness
Seatpost
Marin Alloy Light
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.45 mm | 1.47 mm | 1.48 mm | 1.5 mm |
| Bottom Bracket Height | 280 mm | 280 mm | 280 mm | 280 mm |
| Front Center | 591 mm | 606 mm | 621 mm | 636 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 63 mm | 63 mm | 63 mm | 63 mm |
| Stack | 555.89 mm | 574.97 mm | 594.04 mm | 613.11 mm |
| Reach | 382.74 mm | 392.09 mm | 401.44 mm | 409.94 mm |
| Top Tube Length | 548 mm | 563 mm | 578 mm | 598 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73 ° |
| Seat Tube Length | 381 mm | 431.8 mm | 482.6 mm | 520.7 mm |
| Head Tube Angle | 72.5 ° | 72.5 ° | 72.5 ° | 72.5 ° |
| Head Tube Length | 135 mm | 155 mm | 175 mm | 195 mm |
| Chainstay Length | 430 mm | 430 mm | 430 mm | 430 mm |
| Wheelbase | 1012 mm | 1027 mm | 1043 mm | 1057 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm | 65 mm |
| Standover Height | 611 mm | 654 mm | 698 mm | 732 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview

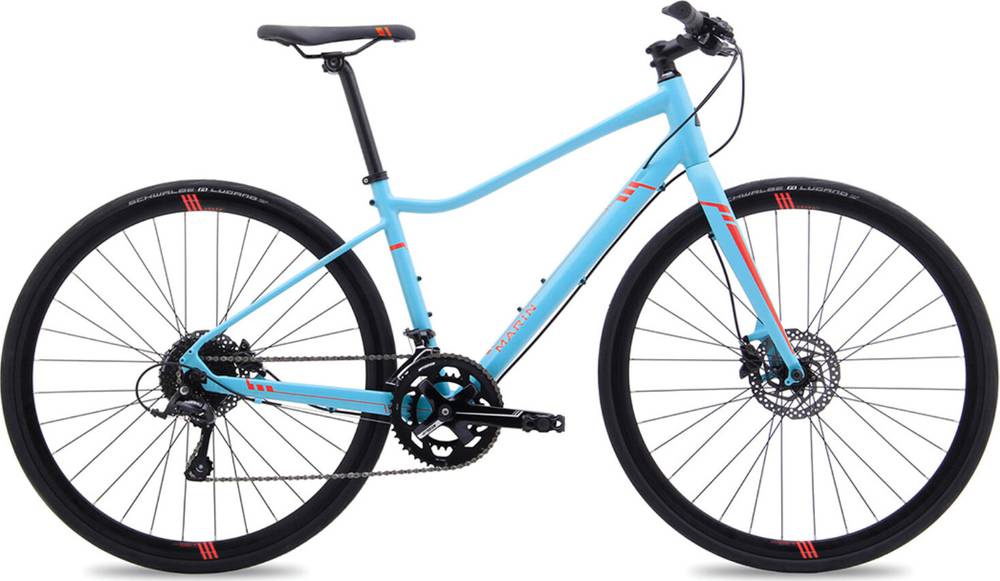

Terra Linda SC4 is part of the Marin Terra model. Marin launched 17 bikes of this model so far. Take a sneak peek at all Marin Terra bikes models from 2018, by clicking here.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Fitness bikes average price
If you want to purchase a solid Fitness bike, it is important to know that the average cost is 656$. However, this doesn’t mean that if you spend less money on a Fitness bike, you couldn’t get a decent one. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Internal Cable Routing
It’s also important to mention the internal cable routing that this bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
Terra Linda SC4 components
Fork material
Terra Linda SC4 has a carbon fork, so, it’s a great addition to the bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels
When leaving the production line, the Terra Linda SC4 model has 700c aluminum wheels. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, finding one for you shouldn’t be a problem.
