Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 120mm -
Fork SunTour XCR
-
Groupset Deore -
Suspension Hardtail -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
147cm - 159cm
SM
156cm - 167cm
MD
164cm - 174cm
LG
171cm - 180cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Series 2 6061 Aluminum, Women's Specific Frame, 27.5" Wheels, Low Standover, 68mm BB shell, 135mm Forged Dropouts, IS Chainstay Disc Mount, Internal Housing Routing
Suspension Fork
SR Suntour XCR LOR-DS, Thru-Axle, 120mm Travel, Hydraulic Lockout, Damping Adjustment, 44mm Offset
Drivetrain
Rear Derailleur
Shimano Deore Shadow Plus SGS
Front Derailleur
-
Shift Levers
Shimano Deore 11-Speed
Cassette
SunRace 11-Speed, 11-51T
Crank
Marin Forged Alloy 1x11, Hollow Spindle, Steel Narrow Wide 32T Chainring, 76mm BCD
Bottom Bracket
External Sealed Cartridge Bearings
Chain
KMC X11
Pedals
Nylon Platform
Wheels
Front Hub
Formula, 100x15mm, Sealed Cartridge Bearings, 32H
Rear Hub
Forged Alloy, 32H
Rims
Marin Aluminum Double Wall, 29mm Inner, Pinned Joint, Disc Specific, Tubeless Compatible
Tires
WTB Trailboss Comp, 27.5", Wire Bead
Brakes
Brake Levers
Shimano BL-MT201
Cockpit
Stem
Marin Alloy, 31.8mm Clamp, 45mm
Handlebar
Marin 31.8 Riser, 12mm Rise, 780mm Width
Grips
Marin MTB, Closed End
Headset
FSA No.10-P
Seat
Saddle
Marin MTB
Seatpost
Marin Alloy, 30.9
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG |
|---|---|---|---|---|
| Stack Reach Ratio | 1.42 mm | 1.38 mm | 1.36 mm | 1.31 mm |
| Bottom Bracket Height | 307 mm | 307 mm | 307 mm | 307 mm |
| Front Center | 696 mm | 713 mm | 725 mm | 746 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 100 mm | 100 mm | 100 mm | 100 mm |
| Stack | 592.7 mm | 597.3 mm | 602 mm | 606.6 mm |
| Reach | 418 mm | 433 mm | 443 mm | 463 mm |
| Top Tube Length | 583 mm | 599 mm | 610.5 mm | 631.8 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74.5 ° | 74.5 ° |
| Seat Tube Length | 330 mm | 381 mm | 431 mm | 481 mm |
| Head Tube Angle | 67.5 ° | 67.5 ° | 67.5 ° | 67.5 ° |
| Head Tube Length | 100 mm | 105 mm | 110 mm | 115 mm |
| Chainstay Length | 423 mm | 423 mm | 423 mm | 423 mm |
| Wheelbase | 1114 mm | 1131 mm | 1143 mm | 1165 mm |
| Bottom Bracket Drop | 48 mm | 48 mm | 48 mm | 48 mm |
| Standover Height | 619 mm | 656 mm | 701 mm | 741 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 147 cm | 156 cm | 164 cm | 171 cm |
| Rider Max Height | 159 cm | 167 cm | 174 cm | 180 cm |

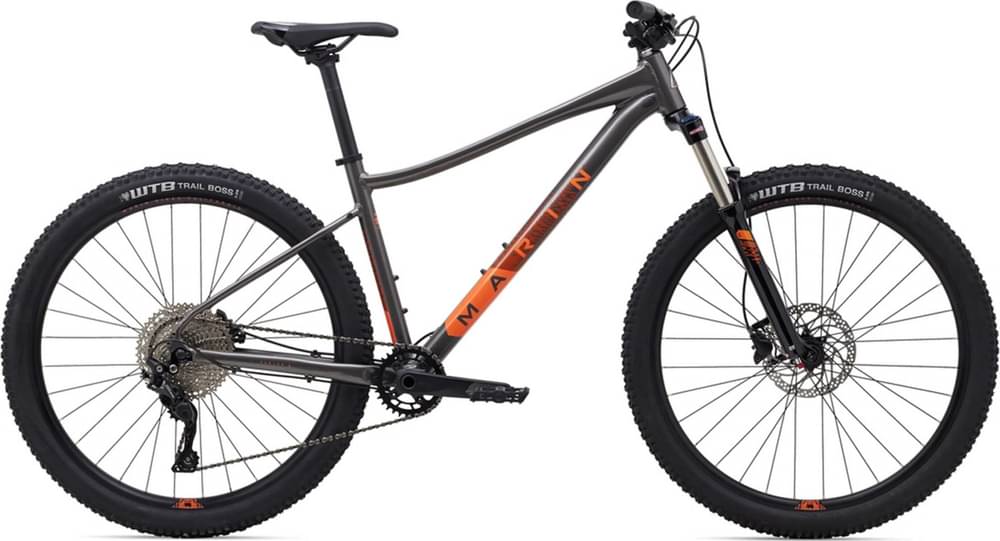

Model Overview
Wildcat Trail 5 belongs to the Marin Wildcat model. Marin launched 31 bikes of this model so far. You can get a glimpse at all models from 2021, by clicking on this link.
Model range prices
Marin Wildcat Trail 1 2021 is the cheapest bike model and costs 499$. Marin Wildcat Trail 5 2021 is the most expensive one and costs 1129$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Trail bikes
According to our calculations, the average cost of a Trail bike that is reliable is 2762$. However, you could also get a good Trail bike even if you pay a lower amount than the average price. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
This bike was released in 2021 and its price was 1129$. If we compare this with the average Trail bike cost we notice that the price is 144.64% smaller.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
Overview of components
Fork
Marin Wildcat Trail 5 2021 bike is equipped with the SunTour XCR fork, and has 120mm travel. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels
When leaving the production line, the Wildcat Trail 5 model has 27.5″ aluminum wheels. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
For your safety, it is important to have quality breaks on your bike. Marin Wildcat Trail 5 has Hydraulic Disc brakes installed. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
Wildcat Trail 5 comes in 4 sizes, that range from 147 cm – 180 cm (4.82 ft – 5.91 ft). In conclusion, it won’t take much to find one that’s right for you.
