Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 27.5" -
Travel Front 100mm -
Fork SunTour XCT
-
Groupset Altus, Tourney -
Suspension Hardtail -
Drivetrain 3 × 8 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
151cm - 164cm
SM
159cm - 170cm
MD
165cm - 177cm
LG
171cm - 184cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Series 2 6061 Aluminum, Women’s Specific Frame, 27.5” Wheels, 68mm BB shell, 135mm Forged Dropouts
Suspension Fork
SR Suntour XCT HLO-DS 27.5”, 100mm Travel, Hydraulic Lockout, (80mm Size XS & S)
Drivetrain
Rear Derailleur
Shimano Altus, 8-Speed
Front Derailleur
FD-TY700
Shift Levers
Shimano SL-M310 3x8-Speed
Cassette
SunRace 8-Speed, 11-34T
Crank
Shimano FC-TY301, 42/32/22T
Bottom Bracket
Sealed Cartridge Bearings, Square Taper
Chain
KMC Z8
Pedals
Nylon Platform
Wheels
Front Hub
Joytech, Centerlock Disc, 32H
Rear Hub
Joytech, Centerlock Disc, 32H
Rims
Marin Aluminum Double Wall, 25mm Inner, Pinned Joint, Disc Specific
Spokes
14g Black Stainless Steel
Tires
Rapid Ron, 27.5”x2.25”
Brakes
Brakes
Tektro HDM-285 Hydraulic Disc, 180mm Rotor
Brake Levers
Tektro HDM-285 Hydraulic Disc
Cockpit
Stem
Marin Alloy
Handlebar
Marin Mini-Riser, 10mm Rise, 720mm Width
Grips
Marin Dual Density
Headset
FSA No.10-P
Seat
Saddle
Marin MTB
Seatpost
Marin Alloy
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG |
|---|---|---|---|---|
| Stack Reach Ratio | 1.42 mm | 1.38 mm | 1.34 mm | 1.3 mm |
| Bottom Bracket Height | 304.5 mm | 304.5 mm | 304.5 mm | 304.5 mm |
| Front Center | 673 mm | 688 mm | 706 mm | 726 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 96 mm | 96 mm | 96 mm | 96 mm |
| Stack | 576.56 mm | 581.19 mm | 585.83 mm | 590.46 mm |
| Reach | 407.1 mm | 420.77 mm | 436.44 mm | 455.11 mm |
| Top Tube Length | 573 mm | 588 mm | 605 mm | 625 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 330 mm | 381 mm | 431 mm | 482 mm |
| Head Tube Angle | 68 ° | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 100 mm | 105 mm | 110 mm | 115 mm |
| Chainstay Length | 428 mm | 428 mm | 428 mm | 428 mm |
| Wheelbase | 1096 mm | 1111 mm | 1129 mm | 1149 mm |
| Bottom Bracket Drop | 48 mm | 48 mm | 48 mm | 48 mm |
| Standover Height | 613 mm | 650 | 691 mm | 733 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 151 cm | 159 cm | 165 cm | 171 cm |
| Rider Max Height | 164 cm | 170 cm | 177 cm | 184 cm |
About this model

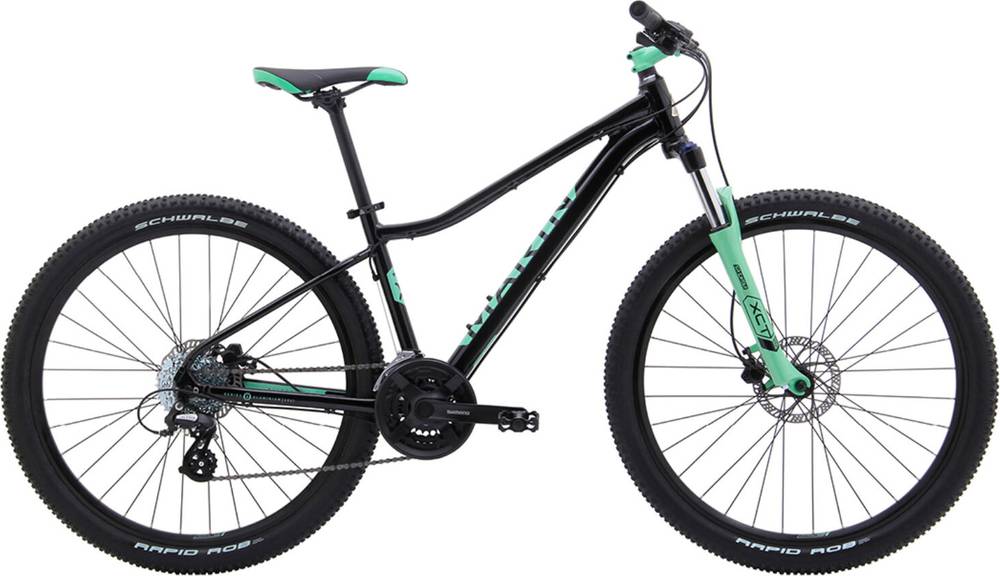

Wildcat Trail WFG 3 is a Marin Wildcat model. There are 31 bikes that carry this model name. You can get a glimpse at all models from 2018, by clicking on this link.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Crosscountry bikes average price
Our math shows that the average cost of a dependable Crosscountry bike is 1905$. However, even if your budget is less than the average, you might still be able to get a top-quality Crosscountry bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Wildcat Trail WFG 3 components
Fork
This bike has the SunTour XCT fork installed. The fork’s travel is 100mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels
The wheels on Wildcat Trail WFG 3 are the 27.5″ aluminum type. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
Nothing is more important on a bike than its ability to brake properly. Marin Wildcat Trail WFG 3 is equipped with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 151 cm – 184 cm (4.95 ft – 6.04 ft). In conclusion, it won’t take much to find one that’s right for you.
