Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 27.5" -
Travel Front 100mm -
Fork SunTour XCT
-
Groupset Tourney -
Suspension Hardtail -
Drivetrain 3 × 7 -
Brakes Rim
Sizing
Recommended size guide.
XS
151cm - 164cm
SM
159cm - 170cm
MD
165cm - 177cm
LG
171cm - 184cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Series 1 6061 Aluminum, 27.5” Wheels, Women's Fit Geometry
Suspension Fork
SR Suntour XCT 27.5”, Women's Tuned Springs, 100mm Travel (80mm Travel Size XS)
Drivetrain
Rear Derailleur
Shimano Tourney
Front Derailleur
Shimano FD-TX50
Shift Levers
Shimano Tourney 7-Speed
Cassette
Sunrace 7-Speed, 11-34T
Crank
Forged Alloy, 42/34/24T
Bottom Bracket
Sealed Cartridge Bearing, Square Taper
Chain
KMC Z51
Pedals
Resin Platform
Wheels
Front Hub
Formula, 32H
Rear Hub
Formula, 32H
Rims
Double Wall, Machined Sidewall
Tires
Vee Tire Galaxy, 27.5x2.1
Brakes
Brakes
Forged Alloy Linear Pull
Brake Levers
Shimano w/ Integrated Shifters
Cockpit
Stem
Marin Alloy
Handlebar
Marin Riser
Grips
Marin Dual Density
Headset
FSA No.10-P
Seat
Saddle
Marin Women's MTB
Seatpost
Marin Alloy
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG |
|---|---|---|---|---|
| Stack Reach Ratio | 1.61 mm | 1.58 mm | 1.51 mm | 1.48 mm |
| Bottom Bracket Height | 305 mm | 305 mm | 305 mm | 305 mm |
| Front Center | 605 mm | 634 mm | 651 mm | 669 mm |
| Rake | 39 mm | 39 mm | 39 mm | 39 mm |
| Trail | 94 mm | 90 mm | 90 mm | 90 mm |
| Stack | 583.24 mm | 591.31 mm | 591.31 mm | 600.65 mm |
| Reach | 361.24 mm | 374.5 mm | 392.01 mm | 406.75 mm |
| Top Tube Length | 531.6 mm | 555.9 mm | 573.4 mm | 591 mm |
| Seat Tube Angle | 73.5 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 330 mm | 382.1 mm | 431.8 mm | 483 mm |
| Head Tube Angle | 69.5 ° | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 100 mm | 110 mm | 110 mm | 120 mm |
| Chainstay Length | 428 mm | 428 mm | 428 mm | 428 mm |
| Wheelbase | 1028 mm | 1057 mm | 1074 mm | 1093 mm |
| Bottom Bracket Drop | 48 mm | 48 mm | 48 mm | 48 mm |
| Standover Height | 628 mm | 668 mm | 708 mm | 748 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 151 cm | 159 cm | 165 cm | 171 cm |
| Rider Max Height | 164 cm | 170 cm | 177 cm | 184 cm |
Model Overview

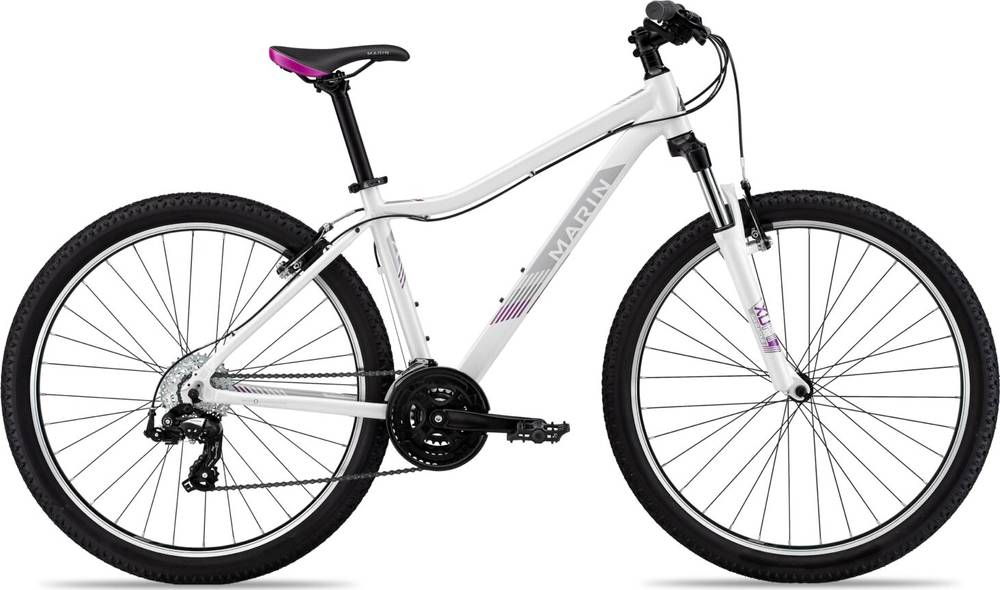

Wildcat Trail WFG 7.1 belongs to the Marin Wildcat model. Marin released 31 bikes variations of this model so far. You can get a glimpse at all models from 2016, by clicking on this link.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Crosscountry bikes average price
Our math shows that the average cost of a dependable Crosscountry bike is 1905$. However, even though the average price of a Crosscountry bike is lower, you might still be able to get a top-quality bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Wildcat Trail WFG 7.1 components
Fork
This bike has the SunTour XCT fork installed. The fork’s travel is 100mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels size
When leaving the production line, the Wildcat Trail WFG 7.1 model has 27.5″ aluminum wheels. These wheels will provide you with more control over the bike. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Rim brakes. Slightly lighter than hydraulic brakes, rim brakes are a budget choice. However, they are not nearly as effective as hydraulic brakes are.
Sizes
This bike is available in 4 sizes. They vary from 151 cm – 184 cm (4.95 ft – 6.04 ft). In short, it won’t be difficult to find the right one for you.
