Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 140mm -
Travel Rear 127mm -
Fork RockShox Pike Ultimate
-
Groupset GX Eagle -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum
Suspension Fork
RockShox Pike Ultimate RC2, 42mm offset
Rear Shock
RockShox Deluxe Ultimate RCT, DebonAir spring, 190mm x 45mm
Drivetrain
Rear Derailleur
SRAM GX Eagle, 12-speed, X-ACTUATION, long cage
Front Derailleur
None
Shift Levers
SRAM GX Eagle, 12-speed
Cassette
SRAM GX Eagle XG-1275, 12-speed, 11-52 tooth, X-GLIDE
Crank
SRAM GX Eagle DUB, 170mm or 175mm length
Bottom Bracket
SRAM DUB, 73mm English threaded
Chain
SRAM GX Eagle, 12-speed, with PowerLock
Chain Guide
None
Pedals
None
Wheels
Front Hub
MDE Rover Lite wheelset, 110x15mm Boost front, 148x12mm Boost rear with XD driver
Rear Hub
MDE Rover Lite wheelset, 110x15mm Boost front, 148x12mm Boost rear with XD driver
Rims
MDE Rover Lite wheelset, 25mm width
Spokes
MDE Rover Lite wheelset
Tires
Maxxis High Roller II, EXO, TR, 27.5" x 2.4"
Brakes
Brakes
Formula Cura, 2-piston, 180mm rotors
Brake Levers
Formula Cura
Cockpit
Stem
Switch Toboga, CNC alloy, 35mm bar clamp, 35mm or 45mm length
Handlebar
Switch Whip Carbon 35, 780mm width, 20mm rise, 35mm clamp diameter
Grips
MDE Piramid, lock-on
Headset
MDE HS ZS44-ZS56
Seat
Saddle
WTB Silverado Pro
Seatpost
Switch SWR dropper; 150mm, 170mm, or 200mm drop
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.39 mm | 1.33 mm | 1.27 mm | 1.23 mm |
| Bottom Bracket Height | 343 mm | 343 mm | 343 mm | 343 mm |
| Stack | 622 mm | 627 mm | 632 mm | 642 mm |
| Reach | 447 mm | 472 mm | 497 mm | 522 mm |
| Top Tube Length | 576 mm | 601 mm | 626 mm | 651 mm |
| Seat Tube Angle | 76.9 ° | 76.9 ° | 76.9 ° | 76.9 ° |
| Seat Tube Length | 390 mm | 420 mm | 450 mm | 480 mm |
| Head Tube Angle | 65 ° | 65 ° | 65 ° | 65 ° |
| Head Tube Length | 100 mm | 105 mm | 110 mm | 120 mm |
| Chainstay Length | 435 mm | 435 mm | 435 mm | 435 mm |
| Wheelbase | 1195 mm | 1220 mm | 1245 mm | 1270 mm |
| Bottom Bracket Drop | 12 mm | 12 mm | 12 mm | 12 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model

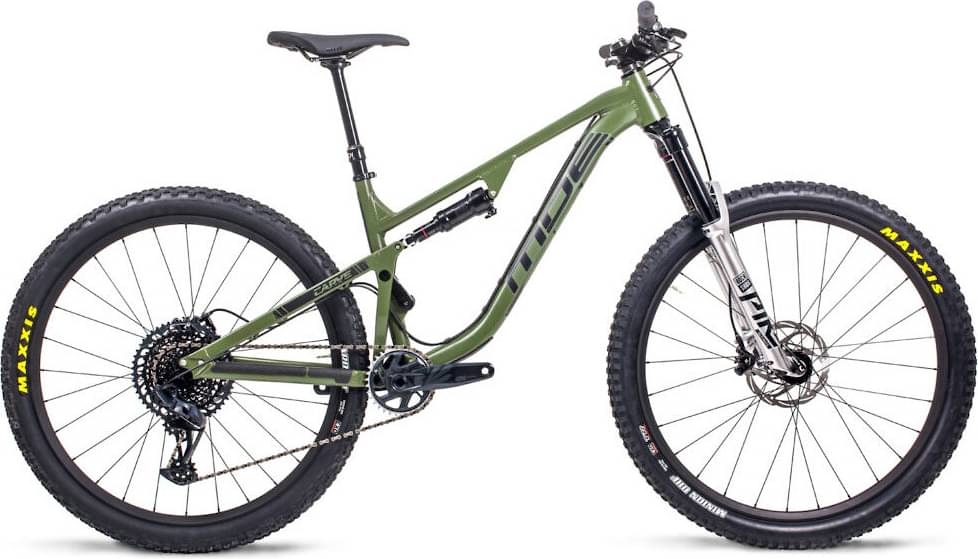

Carve Race 27.5 is a Mde Carve model. MDE released 2 bikes variations of this model so far. You can easily view all of the Mde Carve bikes models from 2021, here.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Trail bikes average price
If you want an acceptable Trail bike you should know that the average price is 2762$. However, you could also get a good Trail bike even if you pay a lower amount than the average price. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Average weight for Trail bikes
On a deeper look, we notice that the average weight of a Trail bike is 12.98 kg (28.62 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
With a weight of 13.5 kg (29.76 lbs), MDE bike is slightly heavier than average. In other words, this model is 4.01% heavier than the average Trail bike.
Carve Race 27.5 components
Fork
The Carve Race 27.5 comes factory-installed with the RockShox Pike Ultimate fork. This has a travel range of 140mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
From the factory, it comes with the RockShox Deluxe Ultimate RCT rear shock model, which has a travel of 127mm. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels
The Carve Race 27.5 2021 bike is equipped with 27.5″ aluminum wheels when leaving the factory. These wheels will provide you with more control over the bike. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
Nothing is more important on a bike than its ability to brake properly. MDE Carve Race 27.5 is equipped with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Sizes
Carve Race 27.5 comes in 4 sizes, that range from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, finding one for you shouldn’t be a problem.
Dropper post
The MDE model is also equipped with a dropper post. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
