Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 160mm -
Travel Rear 150mm -
Fork Fox Factory Float 38
-
Groupset XT, Deore -
Suspension Full -
Motor Shimano 250W 85Nm mid-drive -
Battery Integrated LI-ION Battery, 630 Wh -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Full Integratted Battery, Alloy Triple Butted, 12x148 Boost, Horst Link 4, Wheel travel: 150 mm, Tire clearance 29 x 2.6
Suspension Fork
Fox 38 Factory e-bike+, Kashima 29, 160mm, grip 2, 15QRx110, 44mm rake
Rear Shock
Fox Float DPX2, Factory Series, Kashima 3pos-adj, Trunnion, Evol LV, 205x65
Drivetrain
Rear Derailleur
Shimano XT 12s
Shift Levers
Shimano Deore 12s
Cassette
Shimano deore 12s 10-51t
Crank
Shimano 36t
Wheels
Front Hub
Boost System 15x110 12x148, E-Bike+
Rear Hub
Boost System 15x110 12x148, E-Bike+
Rims
29 Asymmetric 15x110 12x148 Boost Wide:30mm Tubeless Ready
Tires
Maxxis Minion 29 x 2,20 Tubeless Ready EXO Foldable
Brakes
Brakes
Shimano MT520 hydraulic disc 4-Piston, 203mm
Cockpit
Stem
3D Forged Alloy, Ext.: 60-70-90 mm, Rise: ±7º
Handlebar
Alloy Butted 31,8x780 mm, Rise: 12 mm, Back Sweep: 6º
Headset
FSA Orbit 1,5 E ZS 1-1/8” 1,5”
Seat
Saddle
Megamo Specific E-Bike+ Saddle
Seatpost
FOX Transfer, Factory series (Kashima), Ø 30.9mm, Internal Routing, Remote
Motor & Battery
Motor
Shimano EP8 250W
Battery
Integrated LI-ION Battery, 630 Wh
Remote
Shimano EP8
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.462 mm | 1.409 mm | 1.348 mm |
| Bottom Bracket Height | 370 mm | 370 mm | 370 mm |
| Stack | 630 mm | 634 mm | 639 mm |
| Reach | 431 mm | 450 mm | 474 mm |
| Top Tube Length | 600 mm | 620 mm | 644 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° |
| Head Tube Angle | 65.3 ° | 65.3 ° | 65.3 ° |
| Head Tube Length | 135 mm | 140 mm | 145 mm |
| Chainstay Length | 465 mm | 465 mm | 465 mm |
| Wheelbase | 1232 mm | 1253 mm | 1279 mm |
| Bottom Bracket Drop | 4 mm | 4 mm | 4 mm |
| Rear Travel | 150 mm | 150 mm | 150 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |

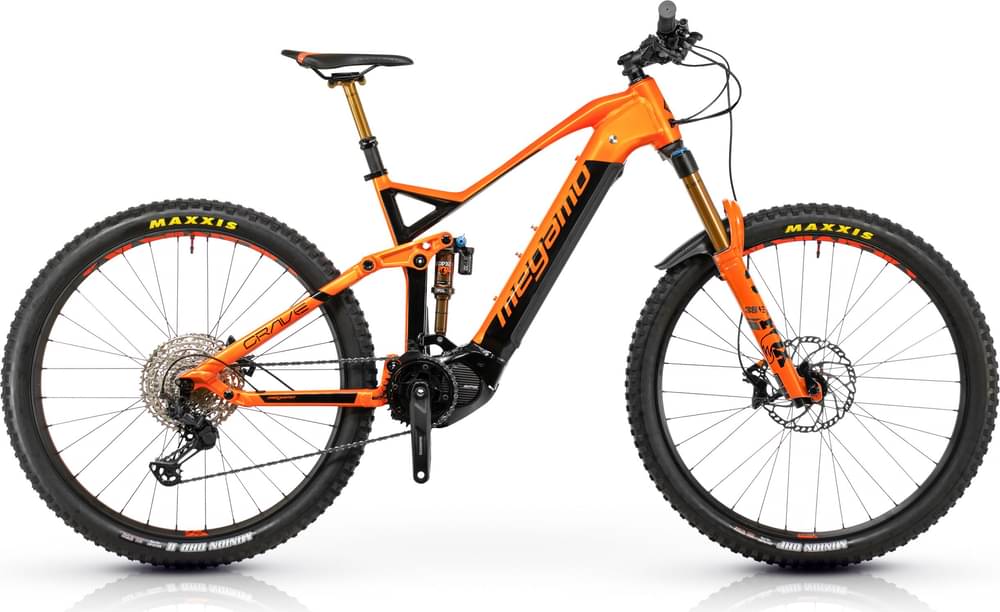

Model Overview
CRAVE AL 03 completes the Megamo E Crave model. 38 e-bikes variations carry this model name so far. Check out the entire range from 2021 of this model, by clicking this link.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Enduro e-bikes
According to our calculations, the average cost of an Enduro e-bike that is reliable is 4785$. However, you could also get a good Enduro e-bike even if you pay a lower amount than the average price. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
CRAVE AL 03 components
Fork
The CRAVE AL 03 comes factory-installed with the Fox Factory Float 38 fork. This has a travel range of 160mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
From the factory, it comes with the Fox Float DPX2 rear shock model, which has a travel of 150mm. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels
When it comes to wheels, the CRAVE AL 03 e-bike is equipped with the 29″ aluminum model. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, these wheels are not ideal for smaller people.
Brakes
When you want to stop the bike in time, the brakes are vital. The CRAVE AL 03 has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Sizes
There are 3 sizes available for this model. Rider height can be anywhere between 158 cm – 187 cm (5.18 ft – 6.14 ft). In conclusion, it won’t take much to find one that’s right for you.
Dropper post
Megamo CRAVE AL 03 comes with a dropper post. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
