Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminium -
Wheels 29" -
Travel Front 160mm -
Travel Rear 150mm -
Fork RockShox 35 Silver
-
Groupset SX Eagle, SRAM -
Suspension Full -
Motor Shimano 250W 85Nm mid-drive -
Battery Integrated LI-ION Battery, 630 Wh -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Full Integratted Battery, Alloy Triple Butted, 12x148 Boost, Horst Link 4, Wheel travel: 150 mm, Tire clearance 29 x 2.6
Suspension Fork
Rock Shox 35 Silver R 29" Boost 15x110mm 160mm E-MTB Tapered Steerer
Rear Shock
Rock Shox Deluxe Select R 205x65 Debonair Tune Trunnion
Drivetrain
Rear Derailleur
SRAM SX Eagle 12s
Shift Levers
SRAM SX Eagle 12s
Cassette
SRAM SX Eagle 12s 11-50t
Crank
SRAM Chainring 36T
Wheels
Front Hub
Boost System 15x110 12x148, E-Bike+
Rear Hub
Boost System 15x110 12x148, E-Bike+
Rims
29 Asymmetric 15x110 12x148 Boost Wide:30mm Tubeless Ready
Tires
Front: 29x2,6 Maxxis Minion DHF, Rear: 29x2,6 Maxxis Minion DHR II, Tubeless Ready, EXO Protection
Brakes
Brakes
Shimano MT420 hydraulic disc 4-Piston, 203mm
Cockpit
Stem
3D Forged Alloy, Ext.: 60-70-90 mm, Rise: ±7º
Handlebar
Alloy Butted 31,8x780 mm, Rise: 12 mm, Back Sweep: 6º
Headset
FSA Orbit 1,5 E ZS 1-1/8” 1,5”
Seat
Saddle
Megamo Specific E-Bike+ Saddle
Seatpost
Megamo 30,9mm telescopic seat post, remote adjustment
Motor & Battery
Motor
Shimano EP8 250W
Battery
Integrated LI-ION Battery, 630 Wh
Remote
Shimano EP8
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.462 mm | 1.409 mm | 1.348 mm |
| Bottom Bracket Height | 370 mm | 370 mm | 370 mm |
| Stack | 630 mm | 634 mm | 639 mm |
| Reach | 431 mm | 450 mm | 474 mm |
| Top Tube Length | 600 mm | 620 mm | 644 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° |
| Head Tube Angle | 65.3 ° | 65.3 ° | 65.3 ° |
| Head Tube Length | 135 mm | 140 mm | 145 mm |
| Chainstay Length | 465 mm | 465 mm | 465 mm |
| Wheelbase | 1232 mm | 1253 mm | 1279 mm |
| Bottom Bracket Drop | 4 mm | 4 mm | 4 mm |
| Rear Travel | 150 mm | 150 mm | 150 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
About this model

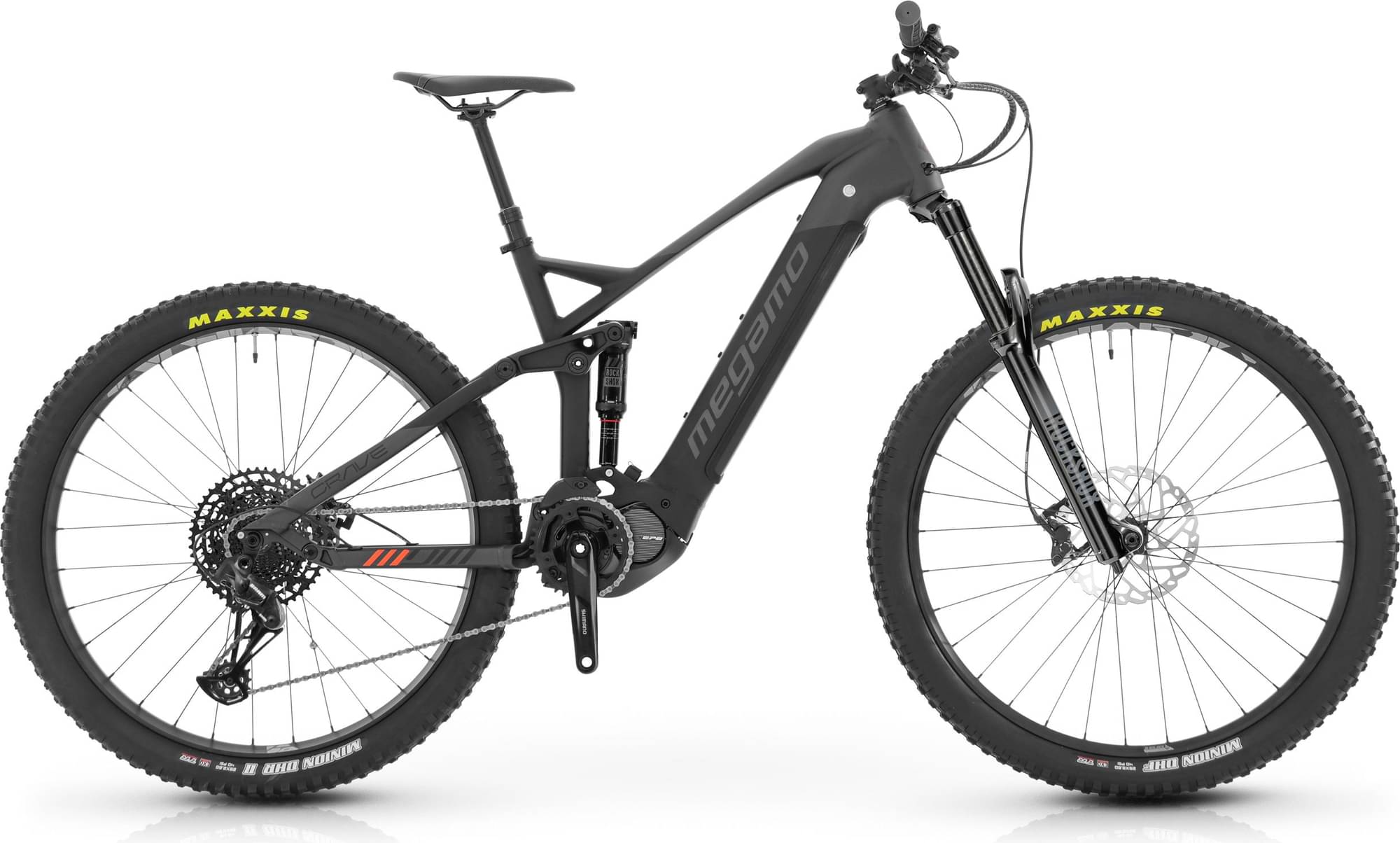

CRAVE AL 10 belongs to the Megamo E Crave model. There are 38 e-bikes that carry this model name. Check out the entire range from 2022 of this model, by clicking this link.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Enduro e-bikes
Our math shows that the average cost of a dependable Enduro e-bike is 4785$. However, even if your budget is less than the average, you might still be able to get a top-quality Enduro e-bike. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
CRAVE AL 10 components
Fork
Megamo CRAVE AL 10 2022 e-bike is equipped with the RockShox 35 Silver fork, and has 160mm travel. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, you should always ensure you have a good fork when purchasing a bike.
Rear Shock
From the factory, it comes with the Rock Shox Deluxe Select R 205×65 Debonair Tune Trunnion rear shock model, which has a travel of 150mm. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels size
The wheels on CRAVE AL 10 are the 29″ aluminum type. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, these wheels are not ideal for smaller people.
Brakes
For your safety, it is important to have quality breaks on your bike. Megamo CRAVE AL 10 has Hydraulic Disc brakes installed. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
Sizes
Megamo CRAVE AL 10 e-bike has 3 sizes, in the range of 158 cm – 187 cm (5.18 ft – 6.14 ft). In conclusion, you won’t have a problem finding one that suits you.
Dropper post
Megamo CRAVE AL 10 comes with a dropper post. Therefore, climbing or descending will be a breeze.
