Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 130mm -
Travel Rear 150mm -
Fork Suntour XCR
-
Groupset Deore, Shimano -
Suspension Full -
Motor Shimano 250W 85Nm mid-drive -
Battery Integrated LI-ION Battery, 630 Wh -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Full Integratted Battery, Alloy Triple Butted, 12x148 Boost, Horst Link 4, Wheel travel: 150 mm, Tire clearance 29 x 2.6
Suspension Fork
Suntour XCR 34 E-Bike+, Travel 130mm, Boost 15x110, Mini-Fender Included
Rear Shock
Rock Shox Deluxe Select R 205x65 Debonair Tune Trunnion
Drivetrain
Rear Derailleur
Shimano Deore 6000 10s
Shift Levers
Shimano Deore 10s
Cassette
Shimano Deore 11-42T 10s
Crank
Shimano 34T
Wheels
Front Hub
Boost System 15x110 12x148, E-Bike+
Rear Hub
Boost System 15x110 12x148, E-Bike+
Rims
29 Asymmetric 15x110 12x148 Boost Wide:30mm Tubeless Ready
Tires
Maxxis Rekon 29 x 2,60 EXO Foldable
Brakes
Brakes
Shimano MT420 hydraulic disc 4-Piston, 203mm
Cockpit
Stem
3D Forged Alloy, Ext.: 60-70-90 mm, Rise: ±7º
Handlebar
Alloy Butted 31,8x780 mm, Rise: 12 mm, Back Sweep: 6º
Headset
FSA Orbit 1,5 E ZS 1-1/8” 1,5”
Seat
Saddle
Sellie Italia Model X Superflow
Seatpost
Megamo Ø30,9mm Dropper post, remote adjustment
Motor & Battery
Motor
Shimano EP6
Battery
Integrated LI-ION Battery, 630 Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.46 mm | 1.4 mm | 1.34 mm |
| Bottom Bracket Height | 370 mm | 370 mm | 370 mm |
| Stack | 636 mm | 640 mm | 645 mm |
| Reach | 437 mm | 456 mm | 480 mm |
| Top Tube Length | 606 mm | 626 mm | 650 |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 406 mm | 457 mm | 508 mm |
| Head Tube Angle | 65.3 ° | 65.3 ° | 65.3 ° |
| Head Tube Length | 135 mm | 140 mm | 145 mm |
| Chainstay Length | 471 mm | 471 mm | 471 mm |
| Wheelbase | 1238 mm | 1259 mm | 1285 mm |
| Bottom Bracket Drop | 4 mm | 4 mm | 4 mm |
| Rear Travel | 150 mm | 150 mm | 150 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
About this model

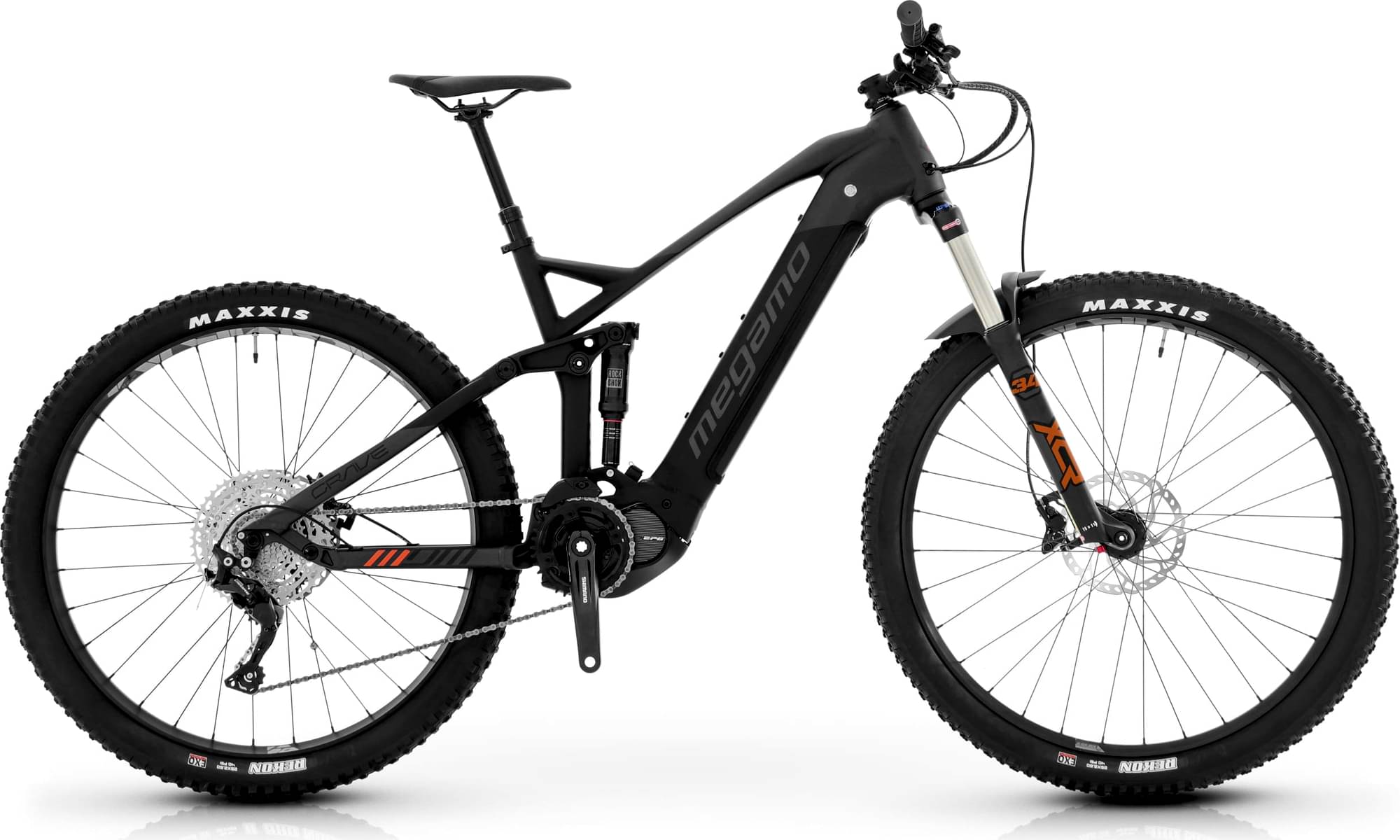

CRAVE AL 40 EP6 is a Megamo E Crave model. 38 e-bikes variations carry this model name so far. Check out the entire range from 2022 of this model, by clicking this link.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Enduro e-bikes average price
Our math shows that the average cost of a dependable Enduro e-bike is 4785$. However, this doesn’t mean that if you spend less money on an Enduro e-bike, you couldn’t get a decent one. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
CRAVE AL 40 EP6 components
Fork
The CRAVE AL 40 EP6 comes factory-installed with the Suntour XCR fork. This has a travel range of 130mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In conclusion, always look for a fork with decent travel when you buy a bike.
Rear Shock
The CRAVE AL 40 EP6 has a rear shock with a travel of 150mm. The model Rock Shox Deluxe Select R 205×65 Debonair Tune Trunnion is the one installed in this e-bike. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. To sum up, always consider getting a bike that has a rear shock as well.
Wheels
The wheels on CRAVE AL 40 EP6 are the 29″ aluminum type. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
Sizes
CRAVE AL 40 EP6 comes in 3 sizes, that range from 158 cm – 187 cm (5.18 ft – 6.14 ft). In short, you can easily find one that suits you.
Dropper post
Megamo CRAVE AL 40 EP6 comes with a dropper post. Therefore, climbing or descending will be a breeze.
