Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 160mm -
Travel Rear 150mm -
Fork Fox Factory Float 38
-
Groupset XT, Deore -
Suspension Full -
Motor Shimano 250W 85Nm mid-drive -
Battery Integrated LI-ION Battery, 630 Wh -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Full Integratted Battery, Alloy Triple Butted, 12x148 Boost, Horst Link 4, Wheel travel: 150 mm, Tire clearance 29 x 2.6
Suspension Fork
Fox 38 Factory e-bike+, Kashima 29, 160mm, grip 2, 15QRx110, 44mm rake
Rear Shock
FOX Float DHX2, Factory Series, Kashima 3pos-Adj, Trunnion
Drivetrain
Rear Derailleur
Shimano XT 12s
Shift Levers
Shimano Deore 12s
Cassette
Shimano deore 12s 10-51t
Crank
Shimano 36t
Wheels
Front Hub
Boost System 15x110 12x148, E-Bike+
Rear Hub
Boost System 15x110 12x148, E-Bike+
Rims
DT Swiss 1501 HX 30 - MSPLINE
Tires
Maxxis Minion 29 x 2,20 Tubeless Ready EXO Foldable
Brakes
Brakes
Shimano MT520 hydraulic disc 4-Piston, 203mm
Cockpit
Stem
3D Forged Alloy, Ext.: 60-70-90 mm, Rise: ±7º
Handlebar
Alloy Butted 31,8x780 mm, Rise: 12 mm, Back Sweep: 6º
Headset
FSA Orbit 1,5 E ZS 1-1/8” 1,5”
Seat
Saddle
Megamo Specific E-Bike+ Saddle
Seatpost
FOX Transfer, Factory series (Kashima), Ø 30.9mm, Internal Routing, Remote
Motor & Battery
Motor
Shimano EP8 250W
Battery
Integrated LI-ION Battery, 630 Wh
Remote
Shimano EP8
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.462 mm | 1.409 mm | 1.348 mm |
| Bottom Bracket Height | 370 mm | 370 mm | 370 mm |
| Stack | 630 mm | 634 mm | 639 mm |
| Reach | 431 mm | 450 mm | 474 mm |
| Top Tube Length | 600 mm | 620 mm | 644 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° |
| Head Tube Angle | 65.3 ° | 65.3 ° | 65.3 ° |
| Head Tube Length | 135 mm | 140 mm | 145 mm |
| Chainstay Length | 465 mm | 465 mm | 465 mm |
| Wheelbase | 1232 mm | 1253 mm | 1279 mm |
| Bottom Bracket Drop | 4 mm | 4 mm | 4 mm |
| Rear Travel | 150 mm | 150 mm | 150 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
About this model

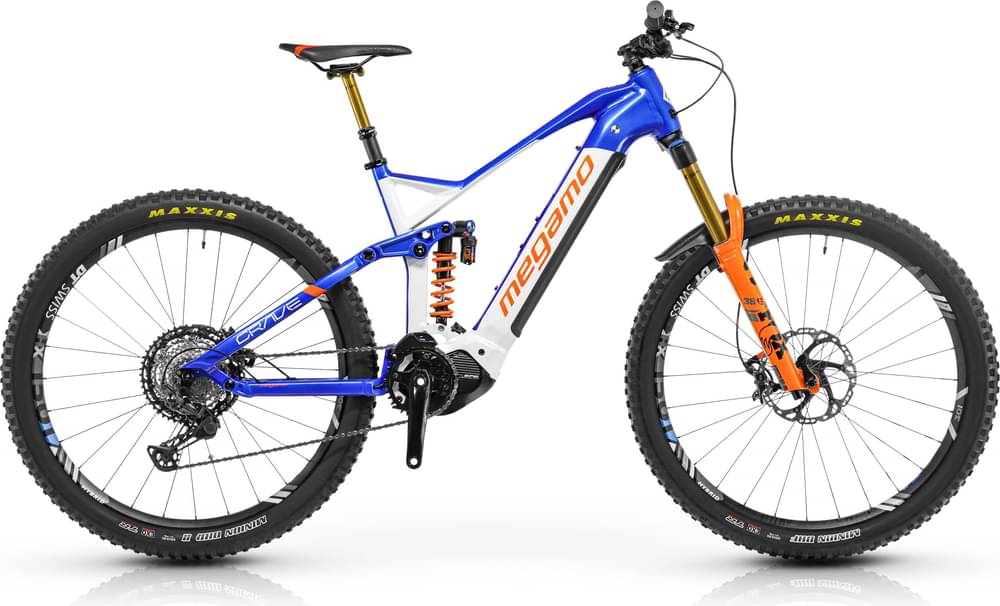

CRAVE AL GRAVITY belongs to the Megamo E Crave model. Megamo released 38 e-bikes variations of this model so far. Take a sneak peek at all Megamo E Crave e-bikes models from 2021, by clicking here.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Enduro e-bikes
According to our math, the average price for a trustworthy Enduro e-bike is 4785$. However, even if your budget is less than the average, you might still be able to get a top-quality Enduro e-bike. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
CRAVE AL GRAVITY components
Fork
The fork installed on this bike is the Fox Factory Float 38 model. The travel on this model is 160mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
The CRAVE AL GRAVITY has a rear shock with a travel of 150mm. The model FOX Float DHX2 is the one installed in this e-bike. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels size
When leaving the production line, the CRAVE AL GRAVITY model has 29″ aluminum wheels. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, 29″ wheels will make your e-bike react slower to obstacles you may encounter.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The CRAVE AL GRAVITY comes with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Sizes
Megamo CRAVE AL GRAVITY e-bike has 3 sizes, in the range of 158 cm – 187 cm (5.18 ft – 6.14 ft). In conclusion, you won’t have a problem finding one that suits you.
Dropper post
Megamo CRAVE AL GRAVITY includes a dropper post. Therefore, climbing or descending will be a breeze.
