Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminium -
Wheels 29" -
Travel Front 160mm -
Travel Rear 150mm -
Fork Fox Factory Float 38
-
Groupset XT, Deore -
Suspension Full -
Motor Shimano 250W 85Nm mid-drive -
Battery Integrated LI-ION Battery, 630 Wh -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Full Integratted Battery, Alloy Triple Butted, 12x148 Boost, Horst Link 4, Wheel travel: 150 mm, Tire clearance 29 x 2.6
Suspension Fork
Fox 38 Factory e-bike+, Kashima 29, 160mm, grip 2, 15QRx110, 44mm rake
Rear Shock
FOX Float DHX2, Factory Series, Kashima 3pos-Adj, Trunnion
Drivetrain
Rear Derailleur
Shimano XT 12s
Shift Levers
Shimano Deore 12s
Cassette
Shimano deore 12s 10-51t
Crank
Shimano 36t
Wheels
Front Hub
Boost System 15x110 12x148, E-Bike+
Rear Hub
Boost System 15x110 12x148, E-Bike+
Rims
DT Swiss 1501 HX 30 - MSPLINE
Tires
Front: 29x2,6 Maxxis Minion DHF, Rear: 29x2,6 Maxxis Minion DHR II, Tubeless Ready, EXO Protection
Brakes
Brakes
Shimano MT520 hydraulic disc 4-Piston, 203mm
Cockpit
Stem
3D Forged Alloy, Ext.: 60-70-90 mm, Rise: ±7º
Handlebar
Alloy Butted 31,8x780 mm, Rise: 12 mm, Back Sweep: 6º
Headset
FSA Orbit 1,5 E ZS 1-1/8” 1,5”
Seat
Saddle
Megamo Specific E-Bike+ Saddle
Seatpost
FOX Transfer, Factory series (Kashima), Ø 30.9mm, Internal Routing, Remote
Motor & Battery
Motor
Shimano EP8 250W
Battery
Integrated LI-ION Battery, 630 Wh
Remote
Shimano EP8
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.462 mm | 1.409 mm | 1.348 mm |
| Bottom Bracket Height | 370 mm | 370 mm | 370 mm |
| Stack | 630 mm | 634 mm | 639 mm |
| Reach | 431 mm | 450 mm | 474 mm |
| Top Tube Length | 600 mm | 620 mm | 644 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° |
| Head Tube Angle | 65.3 ° | 65.3 ° | 65.3 ° |
| Head Tube Length | 135 mm | 140 mm | 145 mm |
| Chainstay Length | 465 mm | 465 mm | 465 mm |
| Wheelbase | 1232 mm | 1253 mm | 1279 mm |
| Bottom Bracket Drop | 4 mm | 4 mm | 4 mm |
| Rear Travel | 150 mm | 150 mm | 150 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
Model Overview

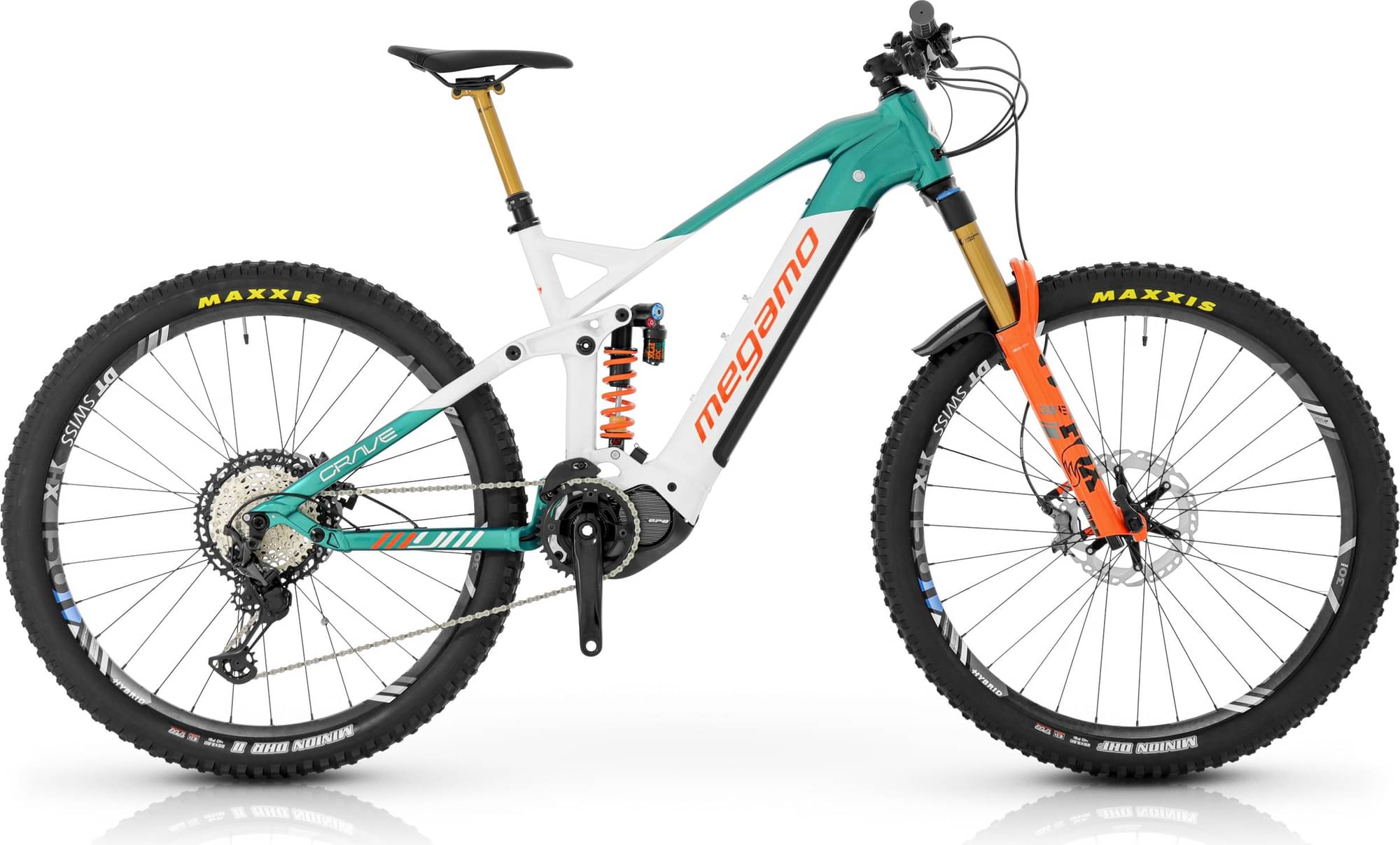

CRAVE AL GRAVITY completes the Megamo E Crave model. Megamo launched 38 e-bikes of this model so far. Check out the entire range from 2022 of this model, by clicking this link.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Enduro e-bikes
If you want an acceptable Enduro e-bike you should know that the average price is 4785$. However, this doesn’t mean that if you spend less money on an Enduro e-bike, you couldn’t get a decent one. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
CRAVE AL GRAVITY components
Fork
This e-bike has the Fox Factory Float 38 fork installed. The fork’s travel is 160mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In conclusion, always look for a fork with decent travel when you buy a bike.
Rear Shock
From the factory, it comes with the FOX Float DHX2 rear shock model, which has a travel of 150mm. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. To sum up, always consider getting a bike that has a rear shock as well.
Wheels
As for the wheels, Megamo CRAVE AL GRAVITY 2022, has a 29″ aluminum model. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Sizes
There are 3 sizes available for this model. Rider height can be anywhere between 158 cm – 187 cm (5.18 ft – 6.14 ft). In short, it won’t be difficult to find the right one for you.
Dropper post
Megamo CRAVE AL GRAVITY includes a dropper post. Therefore, climbing or descending will be a breeze.
