Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 29" -
Travel Front 100mm -
Fork Fox Factory Float 32
-
Groupset XX1 Eagle AXS, X01 Eagle AXS -
Suspension Hardtail -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
29 Factory Carbon Construction FC Technology BB92, Boost 12x148mm
Suspension Fork
Fox 32 Factory StepCast Kashima FIT4 100 mm Remote Lockout, 15x110 Boost
Drivetrain
Rear Derailleur
SRAM XX1 AXS 12s
Shift Levers
SRAM AXS Controller
Cassette
SRAM XX1 AXS 12s 10-52t
Crank
SRAM XX1 AXS 12s 32t
Bottom Bracket
BB86/BB92, press-fit
Wheels
Tires
Maxxis Rekon Race 29x2,35 - Tubeless Ready, EXO, Foldable, 120 TPI
Brakes
Brakes
Shimano XT 8100
Cockpit
Handlebar
Full Integrated Carbon handlebar Megamo -17º/60mm/780mm or -17º/80mm/780mm
Headset
Full Integrated Megamo
Seat
Saddle
Selle Italia SLR Boost X-Cross Superflow
Seatpost
Megamo Elite Light SP 30,9
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.46 mm | 1.39 mm | 1.36 mm | 1.32 mm |
| Bottom Bracket Height | 316 mm | 316 mm | 316 mm | 316 mm |
| Front Center | 667 mm | 692 mm | 718 mm | 744 mm |
| Rake | 55 mm | 55 mm | 55 mm | 56 mm |
| Trail | 81 mm | 81 mm | 81 mm | 80 mm |
| Stack | 602 mm | 607 mm | 621 mm | 631 mm |
| Reach | 411 mm | 436 mm | 456 mm | 478 mm |
| Top Tube Length | 582 mm | 607 mm | 632 mm | 657 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 390 mm | 440 mm | 480 mm | 530 mm |
| Head Tube Angle | 69.5 ° | 69.5 ° | 69.5 ° | 69.5 ° |
| Head Tube Length | 95 mm | 100 mm | 115 mm | 125 mm |
| Chainstay Length | 432 mm | 432 mm | 432 mm | 432 mm |
| Wheelbase | 1092 mm | 1118 mm | 1144 mm | 1170 mm |
| Bottom Bracket Drop | 58 mm | 58 mm | 58 mm | 58 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model

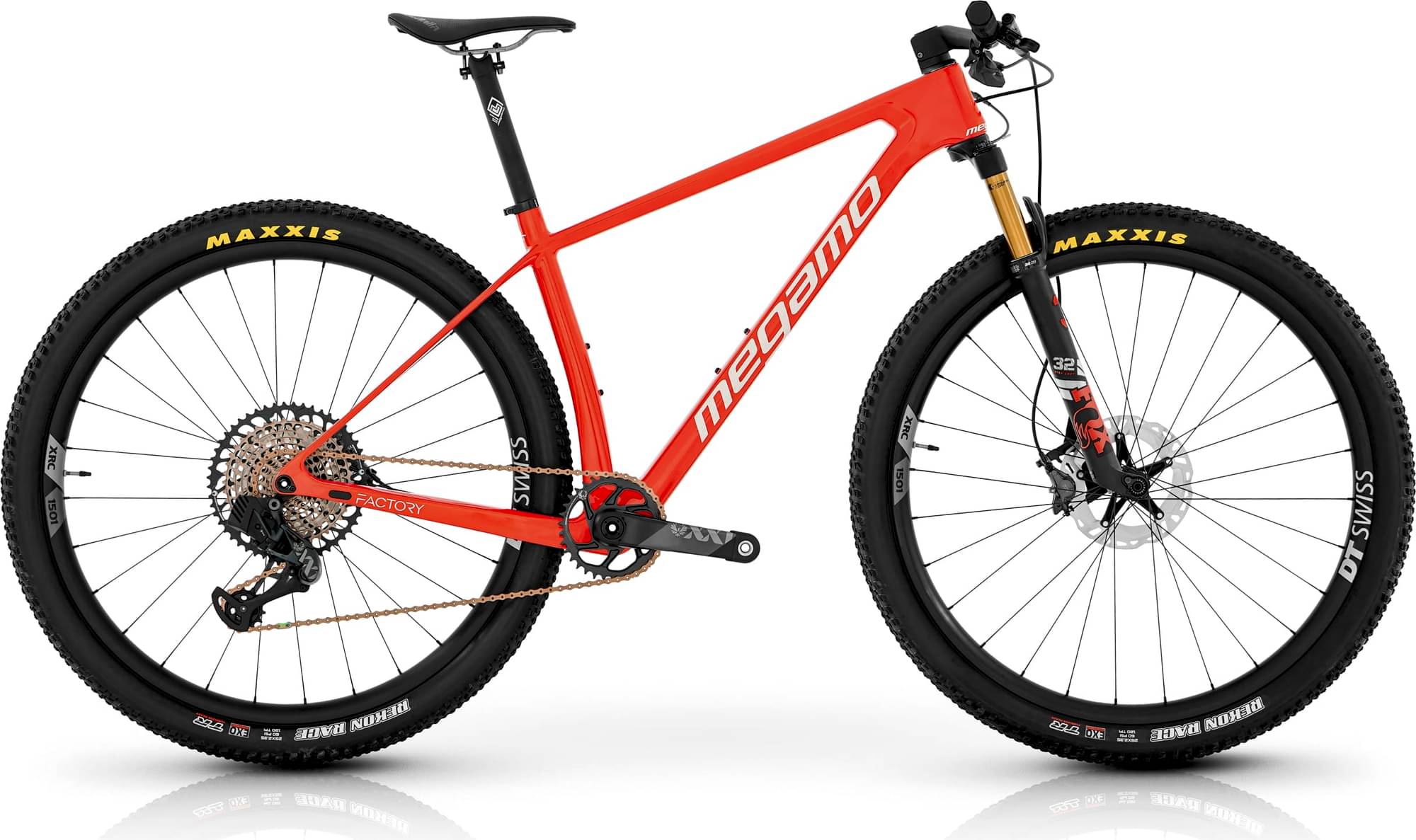

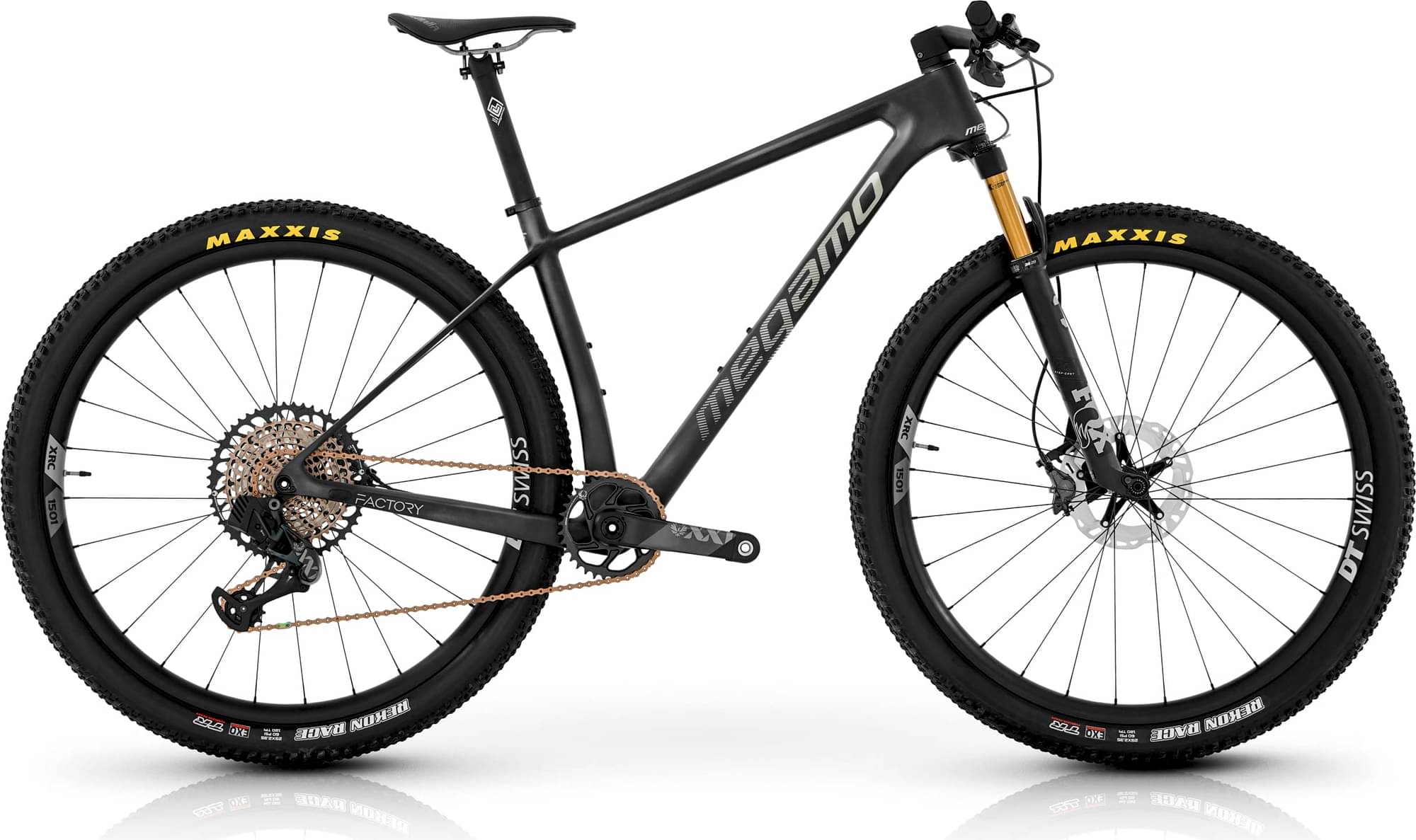

FACTORY AXS 01 is a Megamo Factory model. There are 24 bikes that carry this model name. You can easily view all of the Megamo Factory bikes models from 2023, here.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Crosscountry bikes average price
According to our math, the average price for a trustworthy Crosscountry bike is 1905$. However, you could also get a good Crosscountry bike even if you pay a lower amount than the average price. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Overview of components
Fork
This bike has the Fox Factory Float 32 fork installed. The fork’s travel is 100mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels
The wheels on FACTORY AXS 01 are the 29″ type. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, these wheels are not ideal for smaller people.
Brakes
For your safety, it is important to have quality breaks on your bike. Megamo FACTORY AXS 01 has Hydraulic Disc brakes installed. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Sizes
Megamo FACTORY AXS 01 bike has 4 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, you can easily find one that suits you.
