Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 29" -
Travel Front 100mm -
Fork Fox Factory Float 32
-
Groupset XX1 Eagle AXS, X01 Eagle AXS -
Suspension Hardtail -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
29 Factory Carbon Construction FC Technology BB92, Boost 12x148mm
Suspension Fork
Fox 32 Factory StepCast Kashima FIT4 100 mm Remote Lockout, 15x110 Boost
Drivetrain
Rear Derailleur
SRAM XX1 AXS 12s
Shift Levers
SRAM AXS Controller
Cassette
SRAM XX1 AXS 12s 10-52t
Crank
SRAM XX1 AXS 12s 32t
Bottom Bracket
BB86/BB92, press-fit
Wheels
Front Hub
Mavic Crossmax 15X110 BOOST / 12X148 BOOST
Rear Hub
Mavic Crossmax 15X110 BOOST / 12X148 BOOST
Rims
Mavic Crossmax 15X110 BOOST / 12X148 BOOST
Tires
Pirelli Scorpion XC 29x2.4 Tubeless Ready
Brakes
Brakes
Shimano XT 8100
Cockpit
Handlebar
Full Integrated Carbon handlebar Megamo -17º/60mm/780mm or -17º/80mm/780mm
Headset
Full Integrated Megamo
Seat
Saddle
Sellie Italia Model X Superflow
Seatpost
Megamo Elite Light SP 30,9
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.46 mm | 1.39 mm | 1.36 mm | 1.32 mm |
| Stack | 602 mm | 607 mm | 621 mm | 631 mm |
| Reach | 411 mm | 436 mm | 456 mm | 478 mm |
| Top Tube Length | 582 mm | 607 mm | 632 mm | 657 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 390 mm | 440 mm | 480 mm | 530 mm |
| Head Tube Angle | 69.5 ° | 69.5 ° | 69.5 ° | 69.5 ° |
| Head Tube Length | 95 mm | 100 mm | 115 mm | 125 mm |
| Chainstay Length | 432 mm | 432 mm | 432 mm | 432 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model

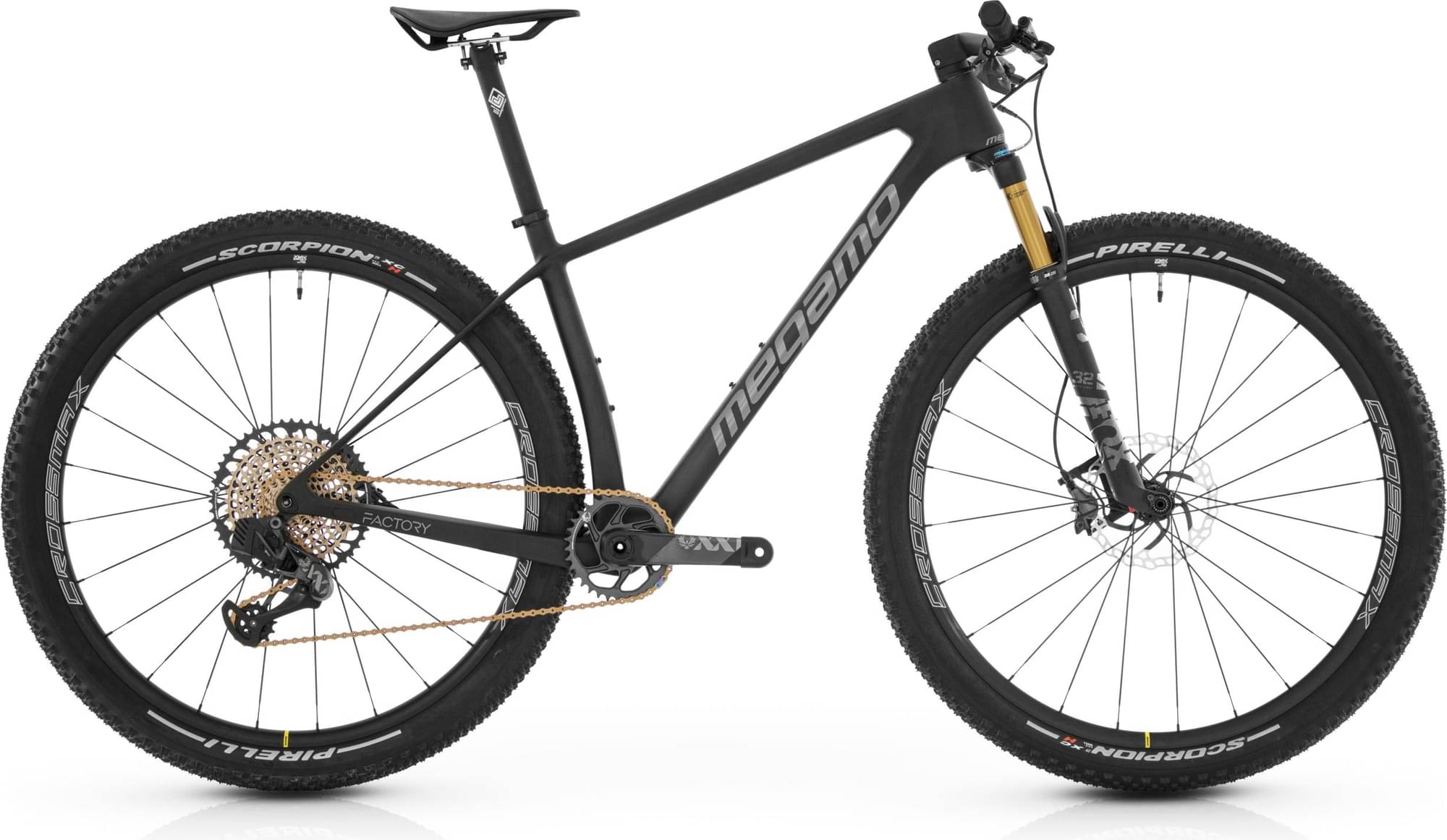

FACTORY AXS 01 LTD is a Megamo Factory model. Megamo launched 24 bikes of this model so far. Check out the entire range from 2022 of this model, by clicking this link.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Crosscountry bikes
Our math shows that the average cost of a dependable Crosscountry bike is 1905$. However, this doesn’t mean that if you spend less money on a Crosscountry bike, you couldn’t get a decent one. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
FACTORY AXS 01 LTD components
Fork
The fork installed on this bike is the Fox Factory Float 32 model. The travel on this model is 100mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels size
As for the wheels, Megamo FACTORY AXS 01 LTD 2022, has a 29″ aluminum model. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, these wheels are not ideal for smaller people.
Brakes
When you want to stop the bike in time, the brakes are vital. The FACTORY AXS 01 LTD has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
FACTORY AXS 01 LTD comes in 4 sizes, that range from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, you won’t have a problem finding one that suits you.
