Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 29" -
Travel Front 100mm -
Fork Fox Factory Float 32
-
Groupset GX Eagle -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
29 Factory Carbon Construction FC Technology BB92, Boost 12x148mm
Suspension Fork
Fox 32 Factory StepCast Kashima FIT4 100 mm Remote Lockout, 15x110 Boost
Drivetrain
Rear Derailleur
SRAM GX Eagle 12s
Shift Levers
SRAM GX Eagle 12s
Cassette
SRAM GX Eagle 12s 10-52t
Crank
SRAM GX Eagle 12s 32t
Bottom Bracket
BB86/BB92, press-fit
Wheels
Front Hub
DT Swiss XR 1700 25 / Mavic Crossmax SL XD
Rear Hub
DT Swiss XR 1700 25 / Mavic Crossmax SL XD
Rims
DT Swiss XR 1700 25 / Mavic Crossmax SL XD
Tires
Maxxis Rekon Race 29 x2,35 - Tubeless Ready, EXO, Foldable, 120 TPI
Brakes
Brakes
Shimano XT 8100
Cockpit
Stem
Megamo Elite Stem
Headset
FSA 1-1/8 1-1/2 * 1.5 Tapered
Seat
Saddle
Sellie Italia X-LR Titanium Rail
Seatpost
Megamo Elite Light SP 30,9
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.48 mm | 1.4 mm | 1.37 mm | 1.33 mm |
| Stack | 593 mm | 598 mm | 612 mm | 622 mm |
| Reach | 402 mm | 427 mm | 447 mm | 469 mm |
| Top Tube Length | 573 mm | 598 mm | 623 mm | 648 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 381 mm | 432 mm | 483 mm | 533 mm |
| Head Tube Angle | 69.5 ° | 69.5 ° | 69.5 ° | 69.5 ° |
| Head Tube Length | 95 mm | 100 mm | 115 mm | 125 mm |
| Chainstay Length | 423 mm | 423 mm | 423 mm | 423 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model

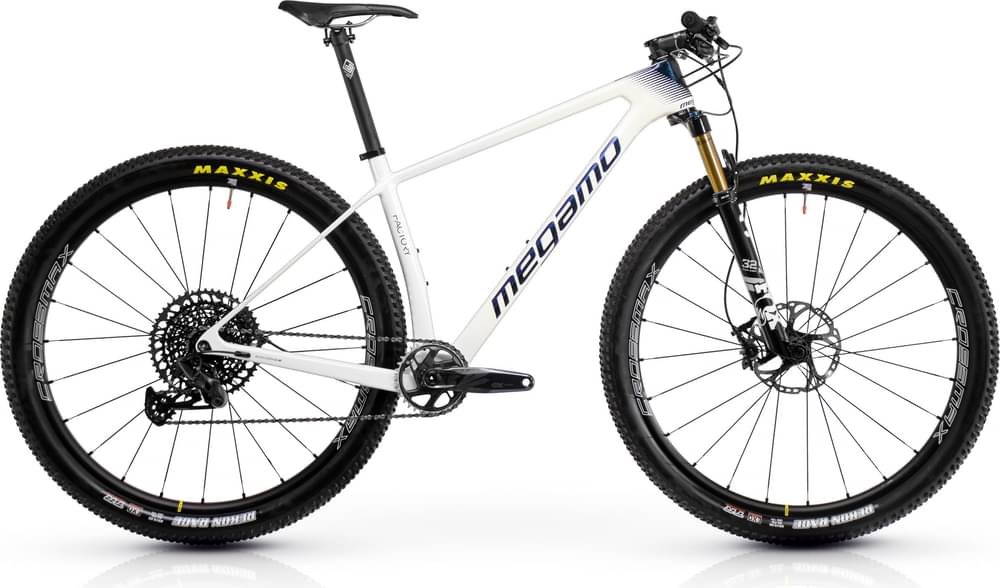

FACTORY Elite 05 belongs to the Megamo Factory model. 24 bikes variations carry this model name so far. You can get a glimpse at all models from 2021, by clicking on this link.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Crosscountry bikes average price
According to our math, the average price for a trustworthy Crosscountry bike is 1905$. However, this doesn’t mean that if you spend less money on a Crosscountry bike, you couldn’t get a decent one. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
FACTORY Elite 05 components
Fork
The fork installed on this bike is the Fox Factory Float 32 model. The travel on this model is 100mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels size
The wheels on FACTORY Elite 05 are the 29″ aluminum type. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, the 29″ wheels will add a little more weight to the bike itself.
Brakes
When you want to stop the bike in time, the brakes are vital. The FACTORY Elite 05 has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Sizes
This bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, you won’t have a problem finding one that suits you.
