Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 29" -
Travel Front 100mm -
Fork Fox Factory Float 32
-
Groupset GX Eagle -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
29 Factory Carbon Construction FC Technology BB92, Boost 12x148mm
Suspension Fork
Fox 32 Factory StepCast Kashima FIT4 100 mm Remote Lockout, 15x110 Boost
Drivetrain
Rear Derailleur
SRAM GX Eagle 12s
Shift Levers
SRAM GX Eagle 12s
Cassette
SRAM GX Eagle 12s 10-52t
Crank
SRAM GX Eagle 12s 32t
Bottom Bracket
BB86/BB92, press-fit
Wheels
Tires
Maxxis Rekon Race 29x2,35 - Tubeless Ready, EXO, Foldable, 120 TPI
Brakes
Brakes
Shimano XT 8100
Cockpit
Stem
Megamo Elite Stem
Handlebar
Megamo Carbon Elite Flat 720
Headset
FSA 1-1/8 1-1/2 * 1.5 Tapered
Seat
Saddle
Selle Italia Novus Boost Evo Superflow
Seatpost
Megamo Elite Light SP 30,9
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.46 mm | 1.39 mm | 1.36 mm | 1.32 mm |
| Bottom Bracket Height | 316 mm | 316 mm | 316 mm | 316 mm |
| Front Center | 667 mm | 692 mm | 718 mm | 744 mm |
| Rake | 55 mm | 55 mm | 55 mm | 56 mm |
| Trail | 81 mm | 81 mm | 81 mm | 80 mm |
| Stack | 602 mm | 607 mm | 621 mm | 631 mm |
| Reach | 411 mm | 436 mm | 456 mm | 478 mm |
| Top Tube Length | 582 mm | 607 mm | 632 mm | 657 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 390 mm | 440 mm | 480 mm | 530 mm |
| Head Tube Angle | 69.5 ° | 69.5 ° | 69.5 ° | 69.5 ° |
| Head Tube Length | 95 mm | 100 mm | 115 mm | 125 mm |
| Chainstay Length | 432 mm | 432 mm | 432 mm | 432 mm |
| Wheelbase | 1092 mm | 1118 mm | 1144 mm | 1170 mm |
| Bottom Bracket Drop | 58 mm | 58 mm | 58 mm | 58 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model

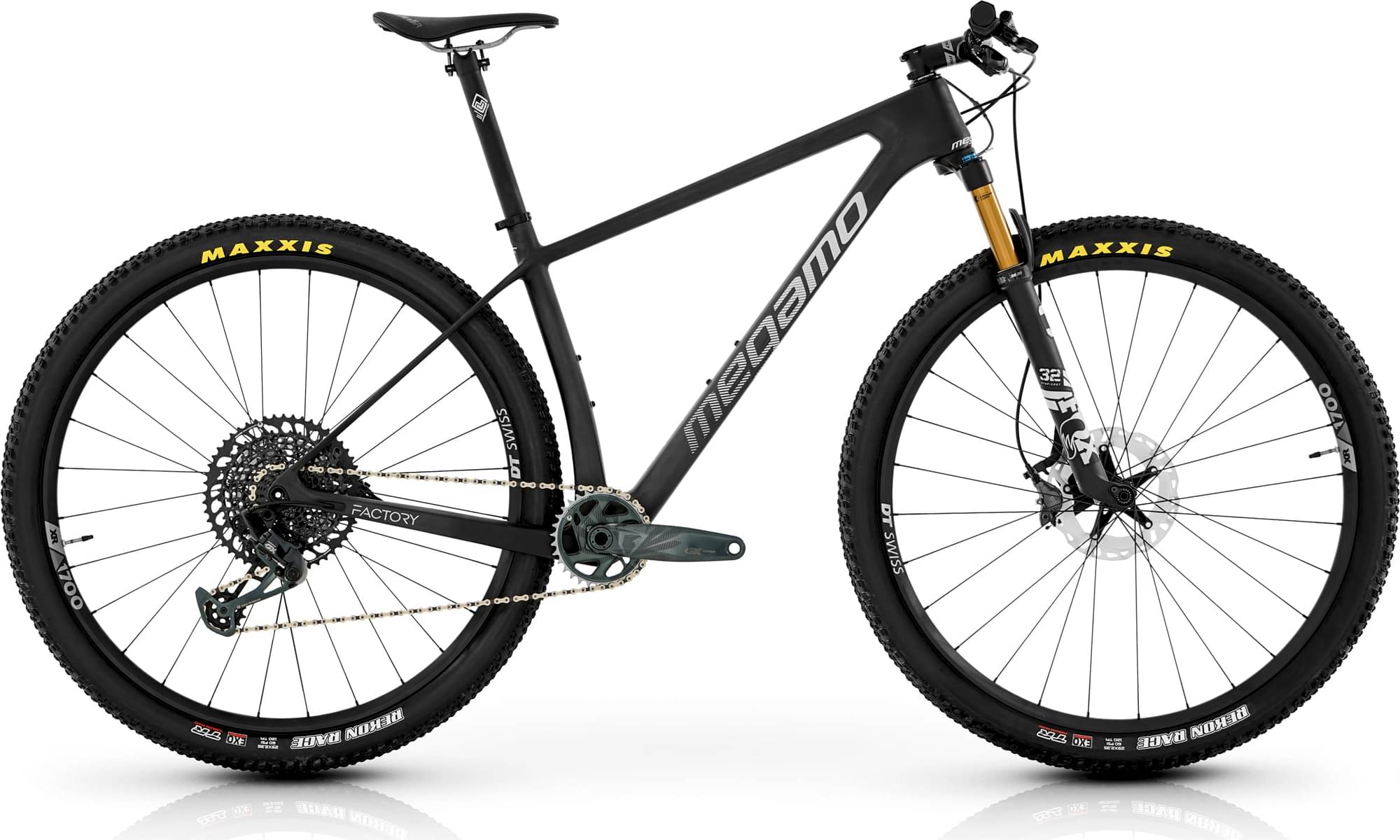

FACTORY ELITE 05 is part of the Megamo Factory model. Megamo released 24 bikes variations of this model so far. Check out the entire range from 2023 of this model, by clicking this link.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Crosscountry bikes
According to our math, the average price for a trustworthy Crosscountry bike is 1905$. However, this doesn’t mean that if you spend less money on a Crosscountry bike, you couldn’t get a decent one. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
FACTORY ELITE 05 components
Fork
The fork installed on this bike is the Fox Factory Float 32 model. The travel on this model is 100mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels size
When it comes to wheels, the FACTORY ELITE 05 bike is equipped with the 29″ model. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, the 29″ wheels will add a little more weight to the bike itself.
Brakes
For your safety, it is important to have quality breaks on your bike. Megamo FACTORY ELITE 05 has Hydraulic Disc brakes installed. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, it won’t take much to find one that’s right for you.
