Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset Apex 1 -
Suspension Rigid -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Gravel AL 6061 Triple Butted, Hydroformed Technology, Internal Cable Routing, Flat Mount Disc 12x142
Suspension Fork
Carbon Disc Fork, Internal Cable Routing, Flat Mount Disc 12x100
Drivetrain
Rear Derailleur
SRAM Apex 1 11s
Shift Levers
SRAM Apex 1 Hydraulic Disc 1x11s
Cassette
SRAM APEX 1 11-42T
Crank
SRAM Apex 1 XSYNC 40t
Wheels
Front Hub
Formula CL712 - RXC400 Alloy 12x100 / 12x142
Rear Hub
Formula CL712 - RXC400 Alloy 12x100 / 12x142
Rims
Megamo Gravel GR 700 - TLR
Tires
WTB Riddler 700 x 45c Tan Sidewall
Brakes
Brakes
SRAM Apex 1 Hydraulic Disc
Cockpit
Stem
Megamo FOV
Handlebar
Megamo Specific Gravel HB FOV Compact
Headset
FSA Orbit - Z 1-1/8" Semi Integrated
Seat
Saddle
Megamo Gravel
Seatpost
Megamo 27,2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.536 mm | 1.516 mm | 1.531 mm |
| Stack | 550 mm | 570 mm | 600 mm |
| Reach | 358 mm | 376 mm | 392 mm |
| Top Tube Length | 515 mm | 545 mm | 575 mm |
| Seat Tube Angle | 74 ° | 73.5 ° | 73 ° |
| Head Tube Angle | 70.5 ° | 71 ° | 71 ° |
| Head Tube Length | 125 mm | 145 mm | 175 mm |
| Chainstay Length | 430 mm | 430 mm | 430 mm |
| Wheels | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
About this model

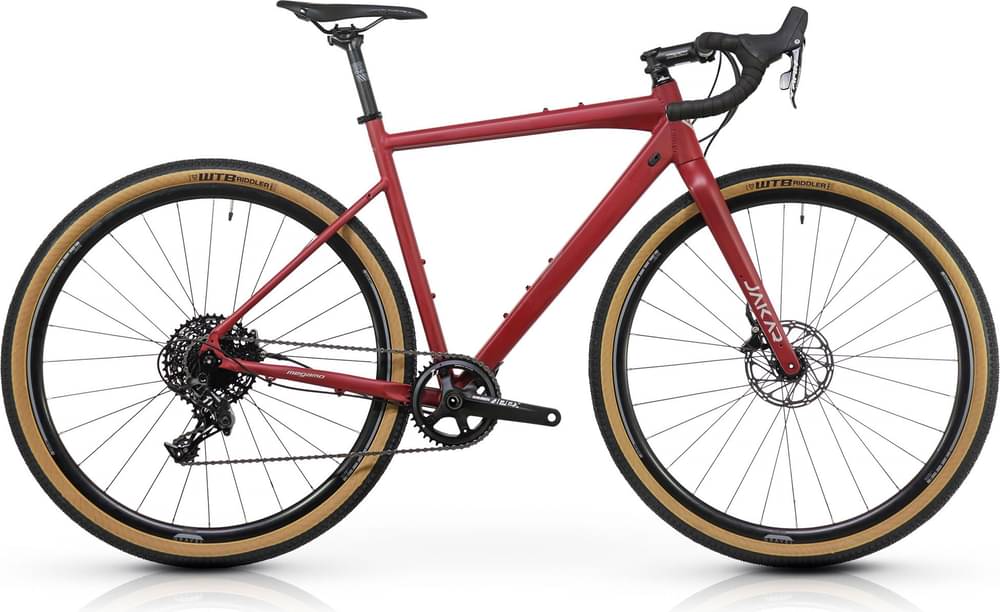

JAKAR 20 completes the Megamo Jakar model. Megamo released 8 bikes variations of this model so far. Take a sneak peek at all Megamo Jakar bikes models from 2021, by clicking here.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Gravel bikes
If you want an acceptable Gravel bike you should know that the average price is 2462$. However, this doesn’t mean that if you spend less money on a Gravel bike, you couldn’t get a decent one. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Internal Cable Routing
It’s also important to mention the internal cable routing that this bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
Overview of components
Fork material
The fork is made out of carbon, so, it won’t add up to much weight to your bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels size
When leaving the production line, the JAKAR 20 model has 700c aluminum wheels. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
For your safety, it is important to have quality breaks on your bike. Megamo JAKAR 20 has Hydraulic Disc brakes installed. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Sizes
This bike is available in 3 sizes. They vary from 158 cm – 187 cm (5.18 ft – 6.14 ft). In conclusion, you won’t have a problem finding one that suits you.
