Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Ultegra Di2 -
Suspension Rigid -
Drivetrain 2 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon Advanced Composite frame, Full Internal Cable Routing, Flat mount disc 12x142
Suspension Fork
Carbon Advanced Composite fork, Full Internal Cable Routing, Flat mount disc 12x100
Drivetrain
Rear Derailleur
Shimano Ultegra Di2 R8150 12s
Shift Levers
Shimano Ultegra Di2 R8150 12s
Cassette
Shimano Ultegra Di2 R8100 12s 11-34T
Crank
Shimano Ultegra Di2 R8100-P 12s 52-36T Powermeter
Wheels
Front Hub
DT Swiss ARC 1100 50
Rear Hub
DT Swiss ARC 1100 50
Rims
DT Swiss ARC 1100 50
Tires
Pirelli P Zero RC TLR Classic / Vittoria Rubino Pro IV 700x28 TLR G2.0
Brakes
Brakes
Shimano Ultegra Di2 R8170 12s Hydraulic Disc
Cockpit
Handlebar
Carbon Full Integratted Internal Cable Routing: 90/400 (XS), 100/400 (S), 110/420 (M,L), 120/440 (XL)
Headset
Totally Internal Cable routing
Seat
Saddle
Selle Italia Novus Boost Evo Superflow
Seatpost
Aerodinamic Advanced Carbon Seat Post
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.35 mm | 1.38 mm | 1.39 mm | 1.39 mm | 1.4 mm |
| Bottom Bracket Height | 285 mm | 285 mm | 285 mm | 285 mm | 285 mm |
| Stack | 499 mm | 514 mm | 535 mm | 553 mm | 572 mm |
| Reach | 370 mm | 373 mm | 386 mm | 397 mm | 408 mm |
| Top Tube Length | 509 mm | 521 mm | 540 mm | 561 mm | 583 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 74 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 450 mm | 480 mm | 500 mm | 520 mm | 540 mm |
| Head Tube Angle | 71.5 ° | 71.5 ° | 72.5 ° | 73 ° | 73 ° |
| Head Tube Length | 105 mm | 120 mm | 138 mm | 155 mm | 175 mm |
| Chainstay Length | 404 mm | 404 mm | 404 mm | 404 mm | 404 mm |
| Bottom Bracket Drop | 51 mm | 51 mm | 51 mm | 51 mm | 51 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
About this model

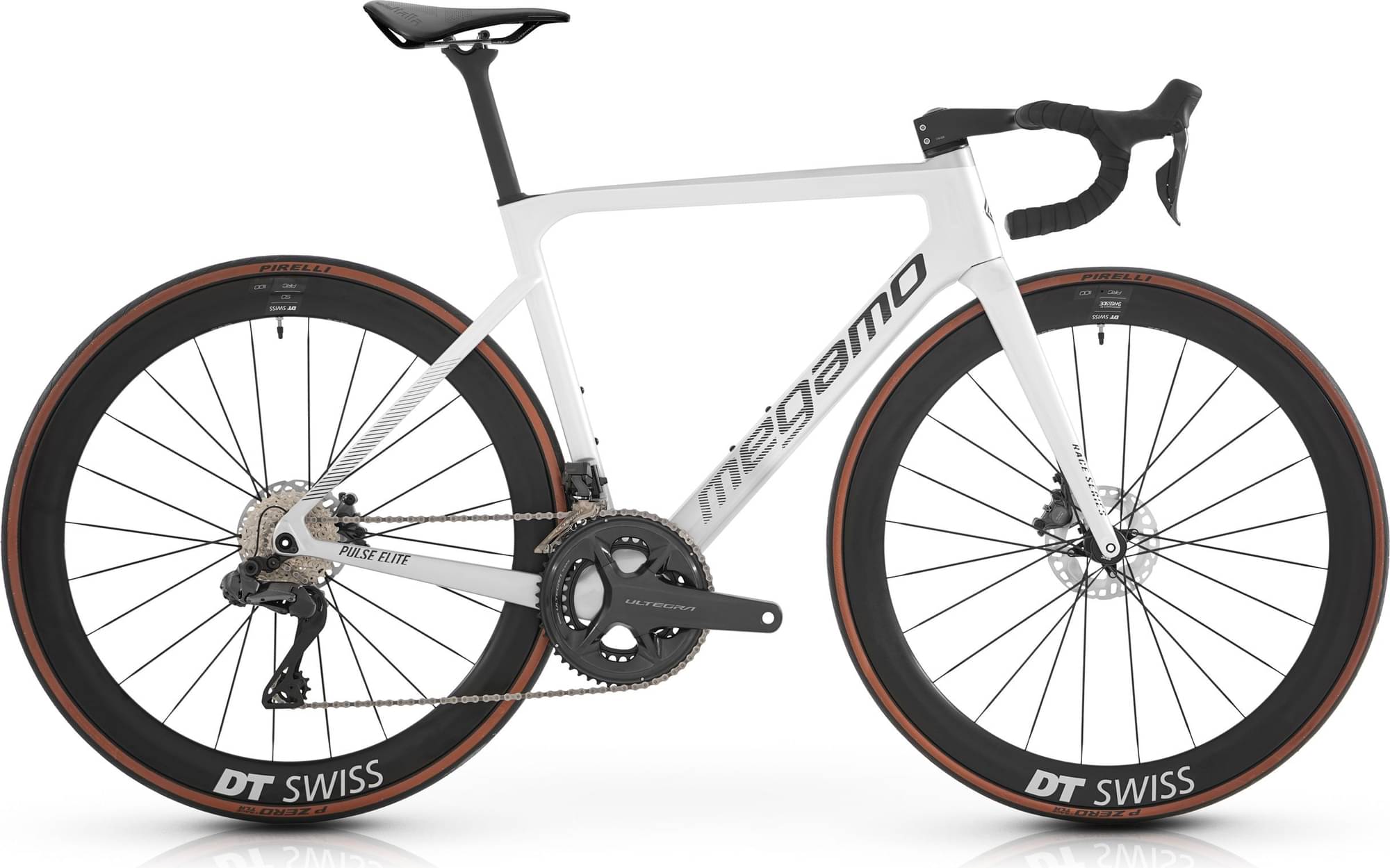

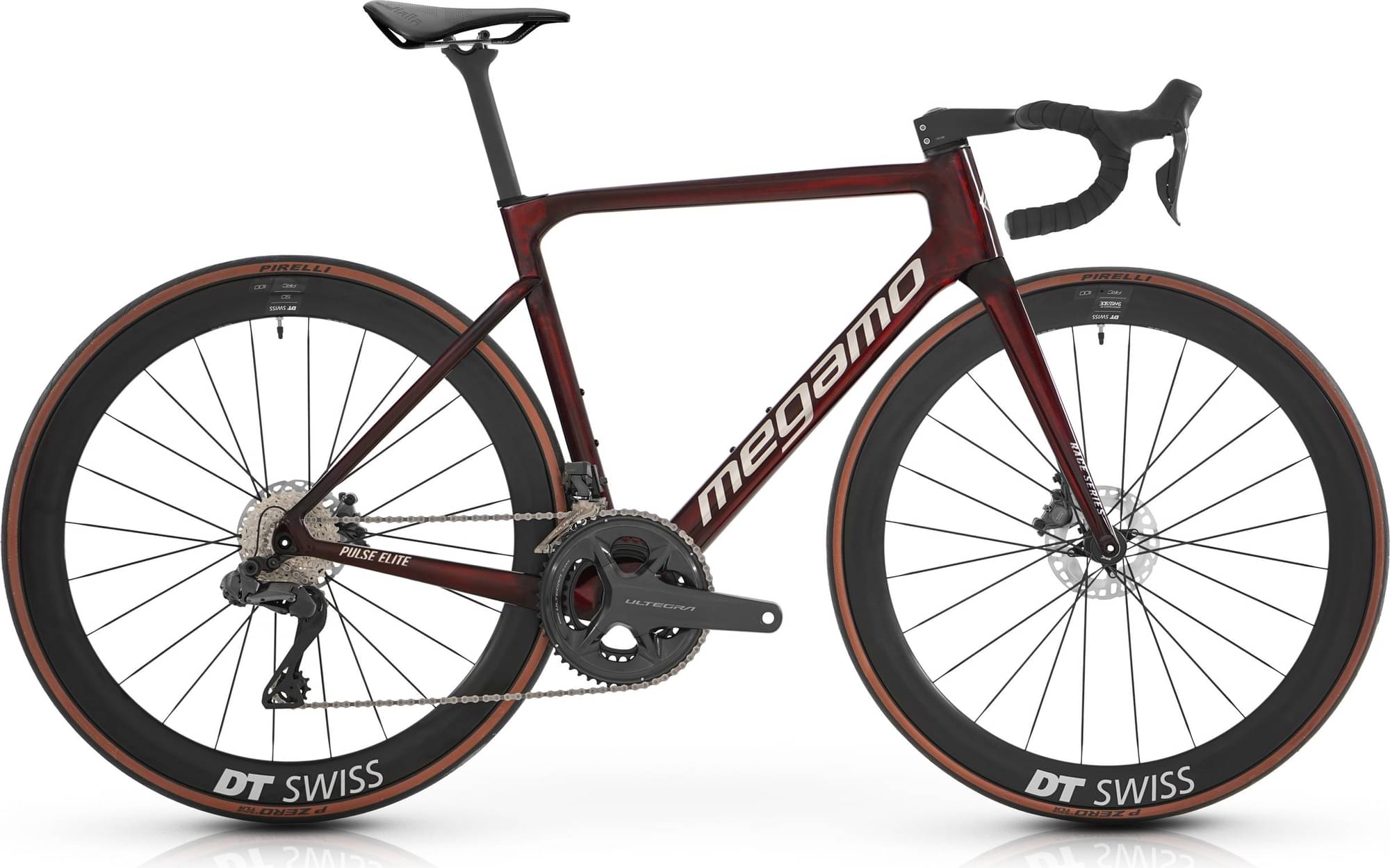

PULSE ELITE 03 SH12 is part of the Megamo Pulse model. Megamo released 24 bikes variations of this model so far. You can easily view all of the Megamo Pulse bikes models from 2023, here.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Race bikes
If you want to purchase a solid Race bike, it is important to know that the average cost is 3350$. However, you could also get a good Race bike even if you pay a lower amount than the average price. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
Overview of components
Fork material
PULSE ELITE 03 SH12 has a carbon fork, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels
When it comes to wheels, the PULSE ELITE 03 SH12 bike is equipped with the 700c carbon model. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
This bike is available in 5 sizes. They vary from 156 cm – 195 cm (5.12 ft – 6.4 ft). In conclusion, you won’t have a problem finding one that suits you.
