Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Ultegra Di2 -
Suspension Rigid -
Drivetrain 2 × 11 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon Advanced Composite frame, Full Internal Cable Routing, Flat mount disc 12x142
Suspension Fork
Carbon Advanced Composite fork, Full Internal Cable Routing, Flat mount disc 12x100
Drivetrain
Rear Derailleur
Shimano Ultegra Di2 8050 11s
Shift Levers
Shimano Ultegra Di2 8050 11s Hydraulic Disc
Cassette
Shimano Ultegra 8000 11s 11-30t
Crank
Shimano Ultegra 8000 11s 52-36t
Wheels
Front Hub
Vision Team 35 Disc TLR CL 12x148 - 12x100
Rear Hub
Vision Team 35 Disc TLR CL 12x148 - 12x100
Rims
Vision Team 35 Disc TLR CL
Tires
Vittoria Rubino 700x25C
Brakes
Brakes
Shimano Ultegra Di2 8050 11s Hydraulic Disc
Cockpit
Handlebar
Carbon Full Integratted Internal Cable Routing: 90/400 (XS,S), 100/400 (S,M), 110/420 (M,L), 120/440 (L,XL)
Headset
Totally Internal Cable routing
Seat
Saddle
Selle San Marco Shortfit Dynamic Wide Manganese Carbon Fiber Reinforced 250 x 144mm
Seatpost
Aerodinamic Advanced Carbon Seat Post
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.348 mm | 1.377 mm | 1.385 mm | 1.392 mm | 1.401 mm |
| Bottom Bracket Height | 285 mm | 285 mm | 285 mm | 285 mm | 285 mm |
| Stack | 500 mm | 515 mm | 536 mm | 554 mm | 573 mm |
| Reach | 371 mm | 374 mm | 387 mm | 398 mm | 409 mm |
| Top Tube Length | 510 mm | 522 mm | 541 mm | 562 mm | 584 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 74 ° | 73.5 ° | 73.5 ° |
| Head Tube Angle | 71.5 ° | 71.5 ° | 72.5 ° | 73 ° | 73 ° |
| Head Tube Length | 105 mm | 120 mm | 138 mm | 155 mm | 175 mm |
| Chainstay Length | 405 mm | 405 mm | 405 mm | 408 mm | 408 mm |
| Bottom Bracket Drop | 51 mm | 51 mm | 51 mm | 51 mm | 51 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
About this model

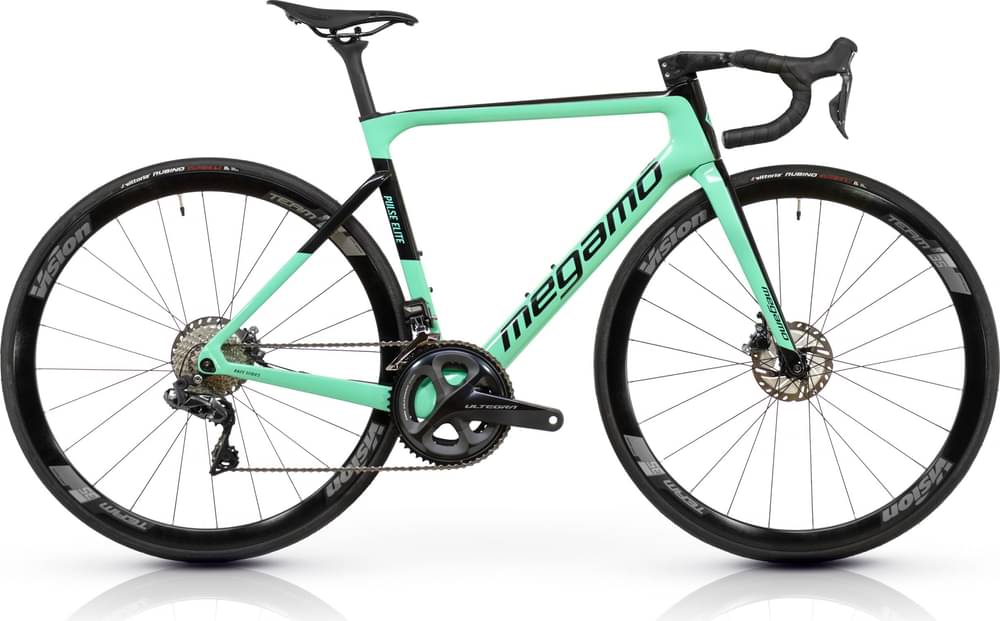

PULSE ELITE 05 is part of the Megamo Pulse model. Megamo launched 24 bikes of this model so far. You can get a glimpse at all models from 2021, by clicking on this link.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Race bikes
According to our calculations, the average cost of a Race bike that is reliable is 3350$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Race bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
PULSE ELITE 05 components
Fork material
When it comes to the fork, this bike has a carbon one, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels size
When leaving the production line, the PULSE ELITE 05 model has 700c aluminum wheels. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
For your safety, it is important to have quality breaks on your bike. Megamo PULSE ELITE 05 has Hydraulic Disc brakes installed. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Sizes
This bike is available in 5 sizes. They vary from 156 cm – 195 cm (5.12 ft – 6.4 ft). In short, you can easily find one that suits you.
