Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Rival AXS -
Suspension Rigid -
Drivetrain 2 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon Advanced Composite frame, Full Internal Cable Routing, Flat mount disc 12x142
Suspension Fork
Carbon Advanced Composite fork, Full Internal Cable Routing, Flat mount disc 12x100
Drivetrain
Rear Derailleur
SRAM Rival AXS 12s
Shift Levers
SRAM Rival AXS 12s
Cassette
SRAM Rival AXS 12s 10-36t
Crank
SRAM Rival AXS 12s 48-35 Powermeter
Wheels
Front Hub
Vision Team 35 Disc
Rear Hub
Vision Team 35 Disc
Rims
Vision Team 35 Disc
Tires
Rubino Pro IV 28-622 TLR full black G2.0 / Pirelli 28-622 PzerRC TLR Classic
Brakes
Brakes
SRAM Rival AXS 12s
Cockpit
Handlebar
Carbon Full Integratted Internal Cable Routing: 90/400 (XS), 100/400 (S), 110/420 (M,L), 120/440 (XL)
Headset
Totally Internal Cable routing
Seat
Saddle
Selle Italia Novus Boost Evo Superflow
Seatpost
Aerodinamic Advanced Carbon Seat Post
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.35 mm | 1.38 mm | 1.39 mm | 1.39 mm | 1.4 mm |
| Bottom Bracket Height | 285 mm | 285 mm | 285 mm | 285 mm | 285 mm |
| Stack | 499 mm | 514 mm | 535 mm | 553 mm | 572 mm |
| Reach | 370 mm | 373 mm | 386 mm | 397 mm | 408 mm |
| Top Tube Length | 509 mm | 521 mm | 540 mm | 561 mm | 583 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 74 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 450 mm | 480 mm | 500 mm | 520 mm | 540 mm |
| Head Tube Angle | 71.5 ° | 71.5 ° | 72.5 ° | 73 ° | 73 ° |
| Head Tube Length | 105 mm | 120 mm | 138 mm | 155 mm | 175 mm |
| Chainstay Length | 404 mm | 404 mm | 404 mm | 404 mm | 404 mm |
| Bottom Bracket Drop | 51 mm | 51 mm | 51 mm | 51 mm | 51 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
Model Overview

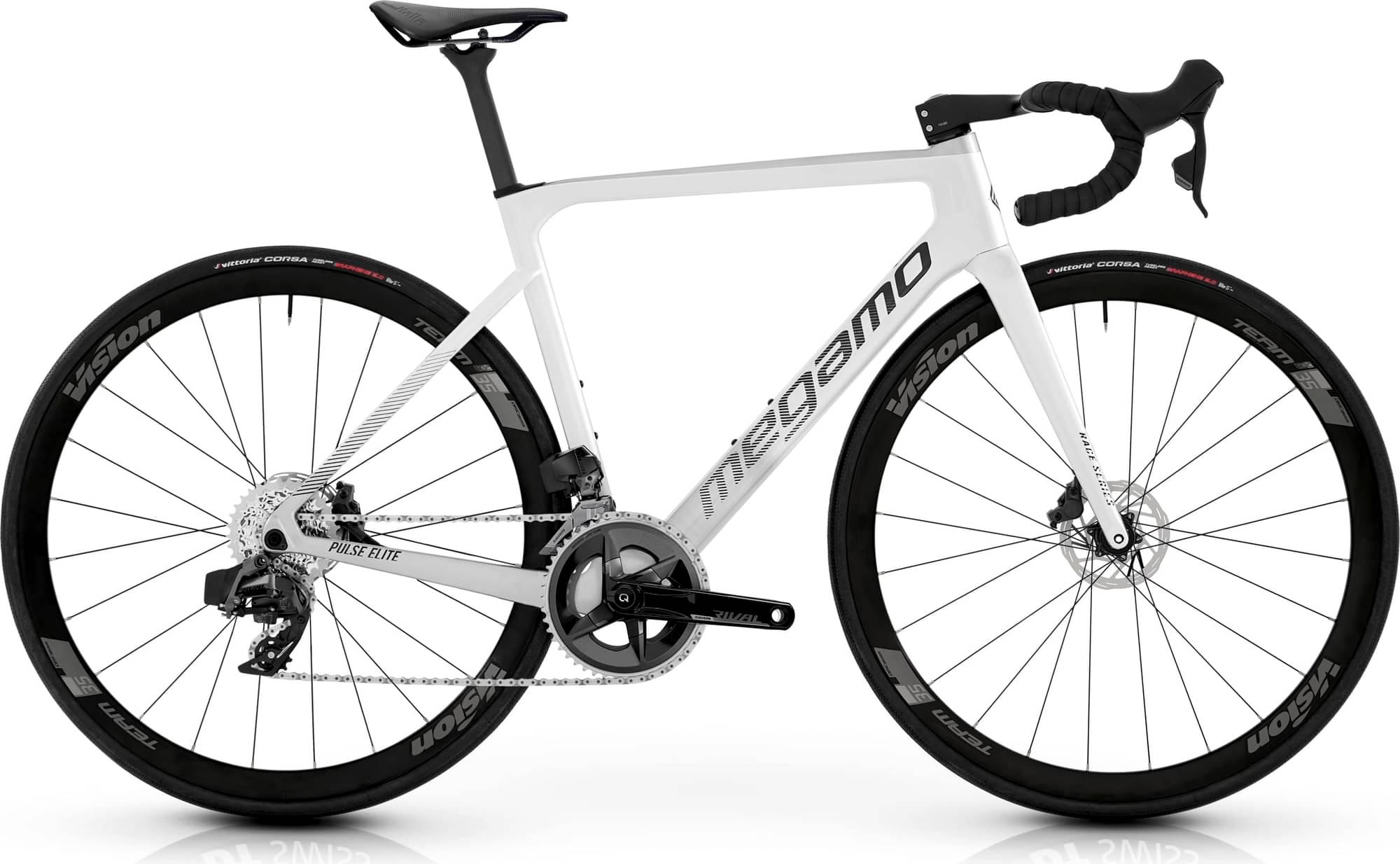

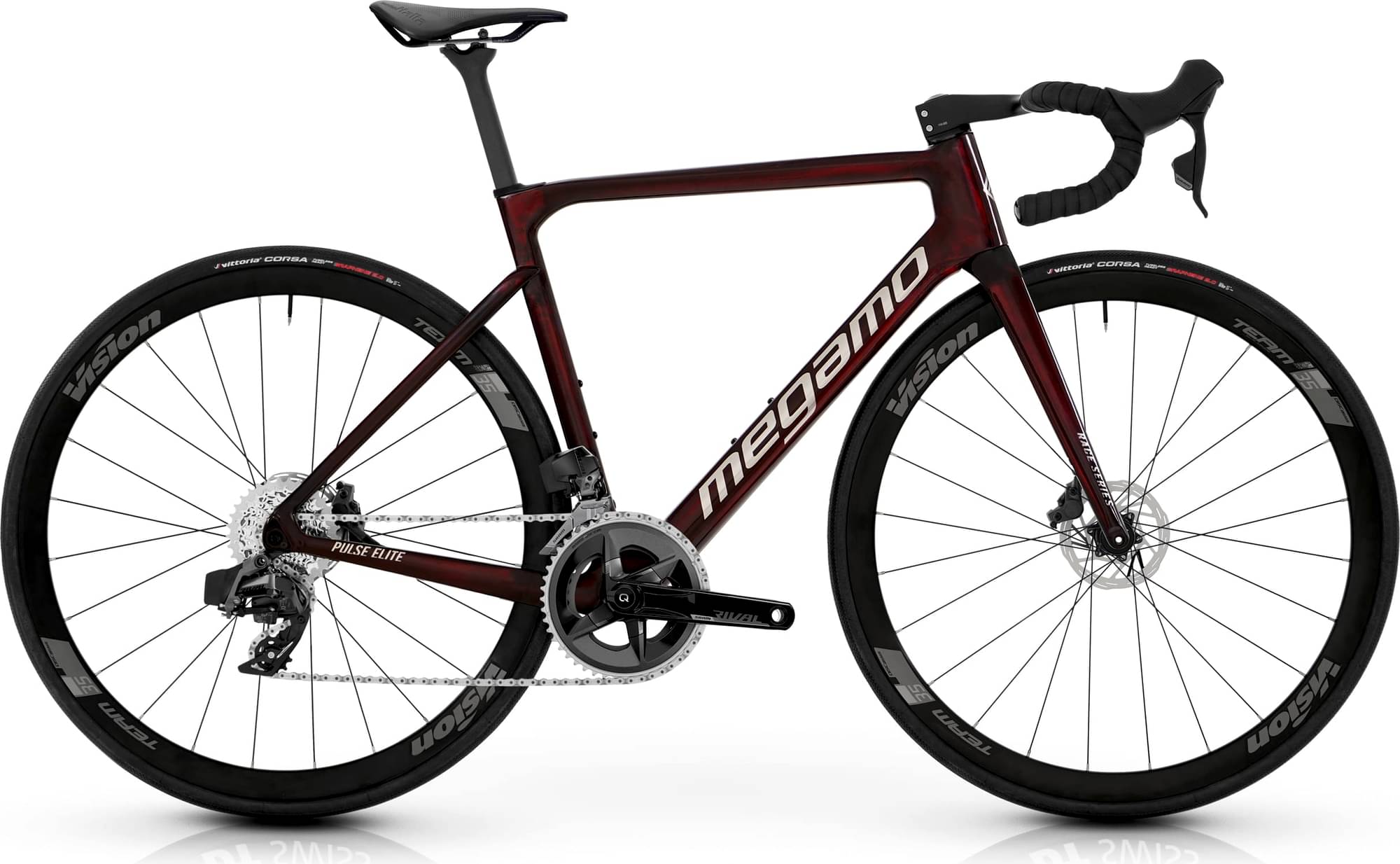

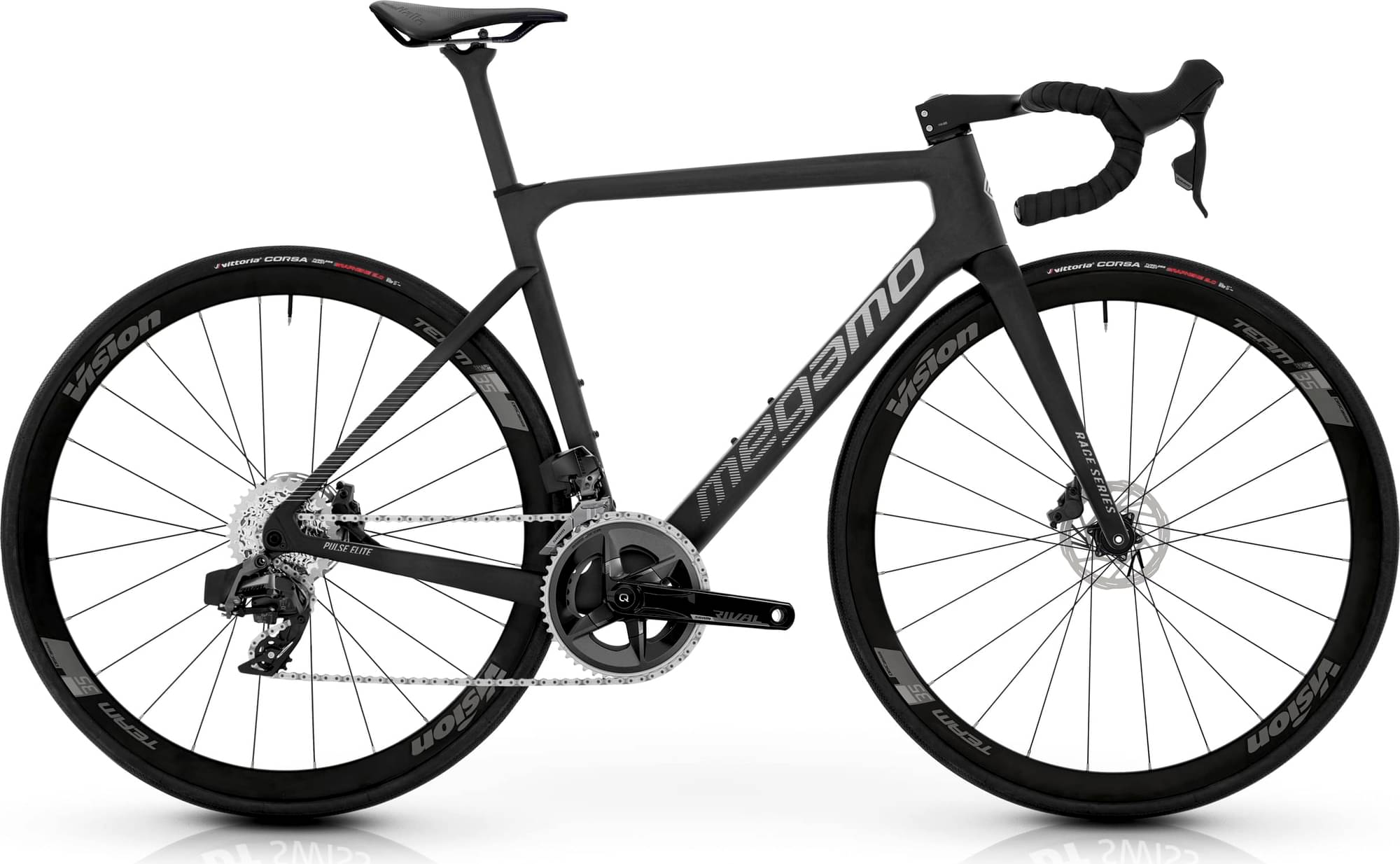

PULSE ELITE 09 AXS belongs to the Megamo Pulse model. Megamo released 24 bikes variations of this model so far. Check out the entire range from 2023 of this model, by clicking this link.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Race bikes average price
If you want an acceptable Race bike you should know that the average price is 3350$. However, you could also get a good Race bike even if you pay a lower amount than the average price. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
Overview of components
Fork material
PULSE ELITE 09 AXS has a carbon fork, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels size
When it comes to wheels, the PULSE ELITE 09 AXS bike is equipped with the 700c aluminum model. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The PULSE ELITE 09 AXS comes with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
Sizes
PULSE ELITE 09 AXS comes in 5 sizes, that range from 156 cm – 195 cm (5.12 ft – 6.4 ft). In short, you can easily find one that suits you.
