Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Rival AXS -
Suspension Rigid -
Drivetrain 2 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon Advanced Composite frame, Full Internal Cable Routing, Flat Mount Disc Brakes 12x142
Suspension Fork
Carbon Advanced Composite fork, Full Internal Cable Routing, Flat Mount Disc Brakes 12x100
Drivetrain
Rear Derailleur
SRAM Rival AXS 12s
Shift Levers
SRAM Rival AXS 12s
Cassette
SRAM Rival AXS 12s 10-36t
Crank
SRAM Rival AXS 12s 48-35 Powermeter
Wheels
Rims
Fulcrum Racing 800 DB
Tires
Pirelli P Zero RC TLR Classic / Vittoria Rubino Pro IV 700x28 TLR G2.0
Brakes
Brakes
SRAM Rival AXS 12s
Cockpit
Handlebar
Carbon Full Integratted Internal Cable Routing: 90/400 (XS), 100/400 (S), 110/420 (M,L), 120/440 (XL)
Headset
Totally Internal Cable routing
Seat
Saddle
Selle Italia Novus Boost Evo Superflow
Seatpost
Megamo 27,2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.415 mm | 1.415 mm | 1.42 mm | 1.425 mm | 1.432 mm |
| Bottom Bracket Height | 270 mm | 270 mm | 270 mm | 270 mm | 270 mm |
| Stack | 505 mm | 522 mm | 541 mm | 560 mm | 580 mm |
| Reach | 357 mm | 369 mm | 381 mm | 393 mm | 405 mm |
| Top Tube Length | 507 mm | 523 mm | 541 mm | 559 mm | 576 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 422 mm | 453 mm | 473 mm | 499 mm | 525 mm |
| Head Tube Angle | 70.5 ° | 72 ° | 72 ° | 72 ° | 72 ° |
| Head Tube Length | 103 mm | 116 mm | 135 mm | 156 mm | 176 mm |
| Chainstay Length | 405 mm | 405 mm | 405 mm | 405 mm | 405 mm |
| Bottom Bracket Drop | 66 mm | 66 mm | 66 mm | 66 mm | 66 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |

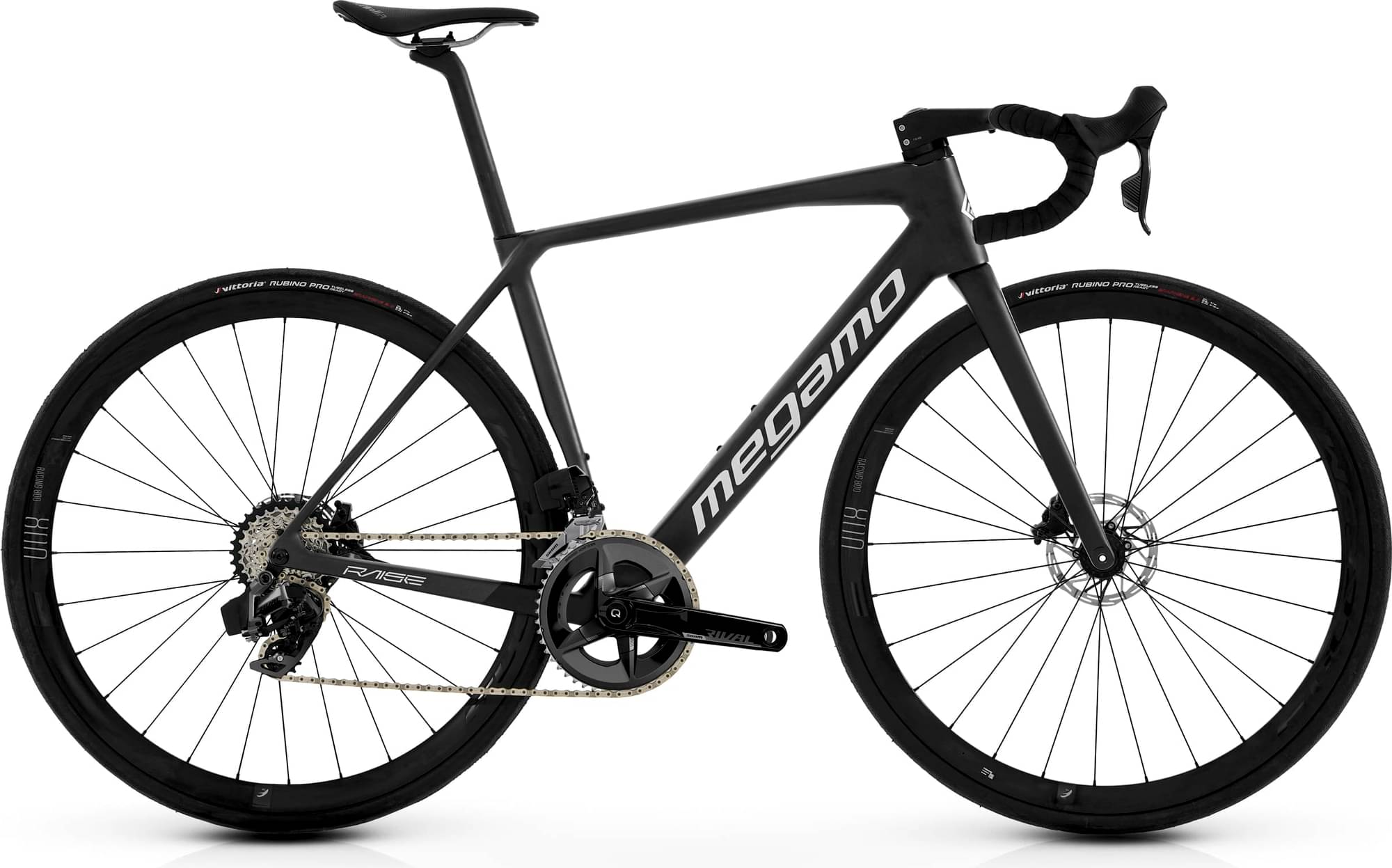

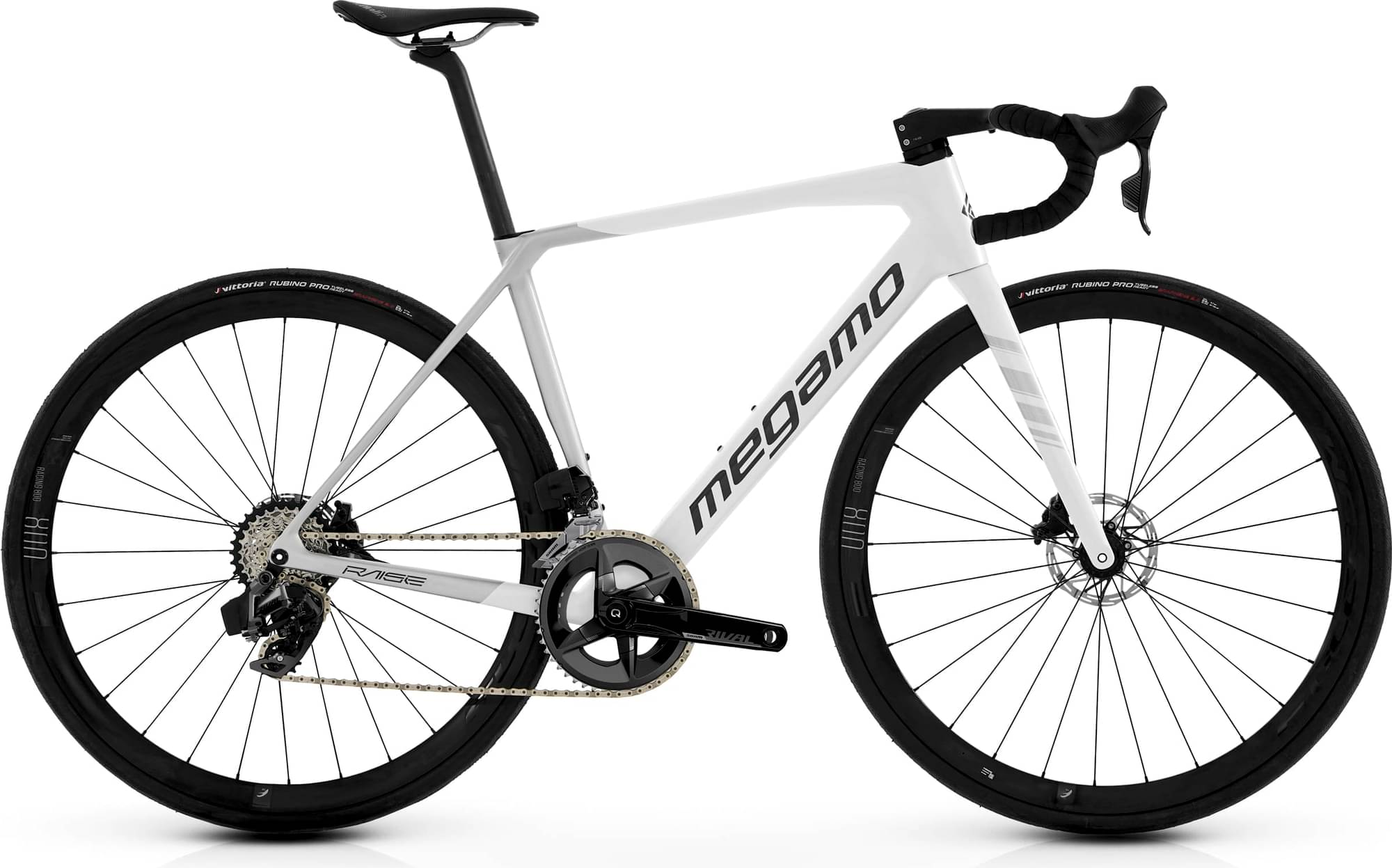

About this model
RAISE 09 AXS completes the Megamo Raise model. Megamo launched 31 bikes of this model so far. You can get a glimpse at all models from 2024, by clicking on this link.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Race bikes average price
According to our calculations, the average cost of a Race bike that is reliable is 3350$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Race bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
RAISE 09 AXS components
Fork material
The fork on this bike is made out of carbon, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels size
When it comes to wheels, the RAISE 09 AXS bike is equipped with the 700c aluminum model. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
When you want to stop the bike in time, the brakes are vital. The RAISE 09 AXS has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
Sizes
There are 5 sizes available for this model. Rider height can be anywhere between 156 cm – 195 cm (5.12 ft – 6.4 ft). In conclusion, it won’t take much to find one that’s right for you.
