Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset 105 Di2 -
Suspension Rigid -
Drivetrain 2 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon Advanced Composite frame, Full Internal Cable Routing, Flat mount disc 12x142
Suspension Fork
Carbon Advanced Composite fork, Full Internal Cable Routing, Flat mount disc 12x100
Drivetrain
Rear Derailleur
Shimano 105 Di2 R7150 12s
Shift Levers
Shimano 105 Di2 R7150 12s
Cassette
Shimano 105 Di2 R7100 12s 11-34T
Crank
Shimano 105 Di2 R7100 12s 50-34T
Wheels
Rims
Fulcrum Racing 800 DB
Tires
Pirelli P Zero RC TLR Classic / Vittoria Rubino Pro IV 700x28 TLR G2.0
Brakes
Brakes
Shimano 105 Di2 R7170 12s Hydraulic Disc
Cockpit
Handlebar
Carbon Full Integratted Internal Cable Routing: 90/400 (XS), 100/400 (S), 110/420 (M,L), 120/440 (XL)
Headset
Totally Internal Cable routing
Seat
Saddle
Selle Italia Shortfit Open-fit Start Up 144
Seatpost
Aerodinamic Advanced Carbon Seat Post
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.415 mm | 1.415 mm | 1.42 mm | 1.425 mm | 1.432 mm |
| Bottom Bracket Height | 270 mm | 270 mm | 270 mm | 270 mm | 270 mm |
| Stack | 505 mm | 522 mm | 541 mm | 560 mm | 580 mm |
| Reach | 357 mm | 369 mm | 381 mm | 393 mm | 405 mm |
| Top Tube Length | 507 mm | 523 mm | 541 mm | 559 mm | 576 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 422 mm | 453 mm | 473 mm | 499 mm | 525 mm |
| Head Tube Angle | 70.5 ° | 72 ° | 72 ° | 72 ° | 72 ° |
| Head Tube Length | 103 mm | 116 mm | 135 mm | 156 mm | 176 mm |
| Chainstay Length | 405 mm | 405 mm | 405 mm | 405 mm | 405 mm |
| Bottom Bracket Drop | 66 mm | 66 mm | 66 mm | 66 mm | 66 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
About this model

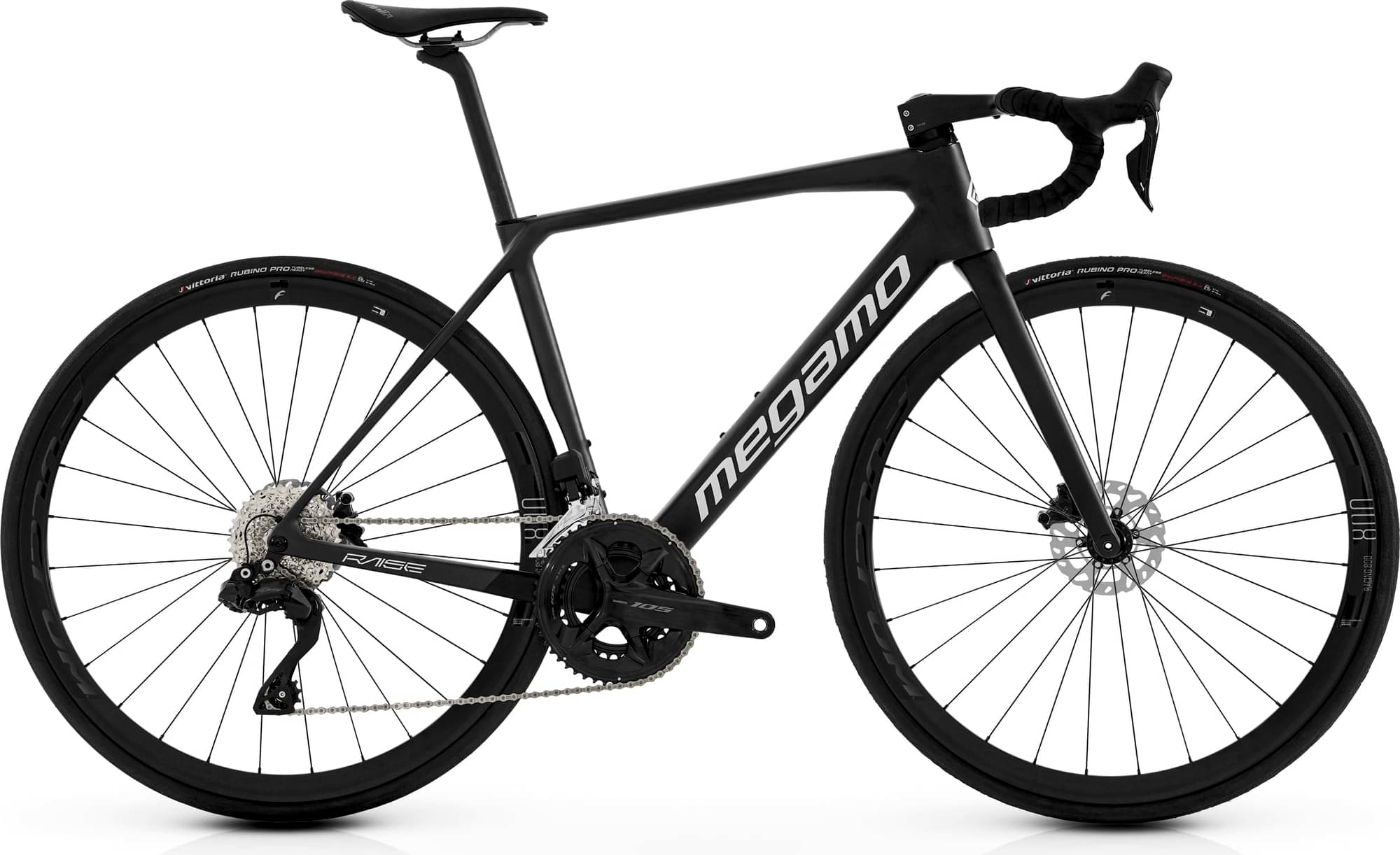

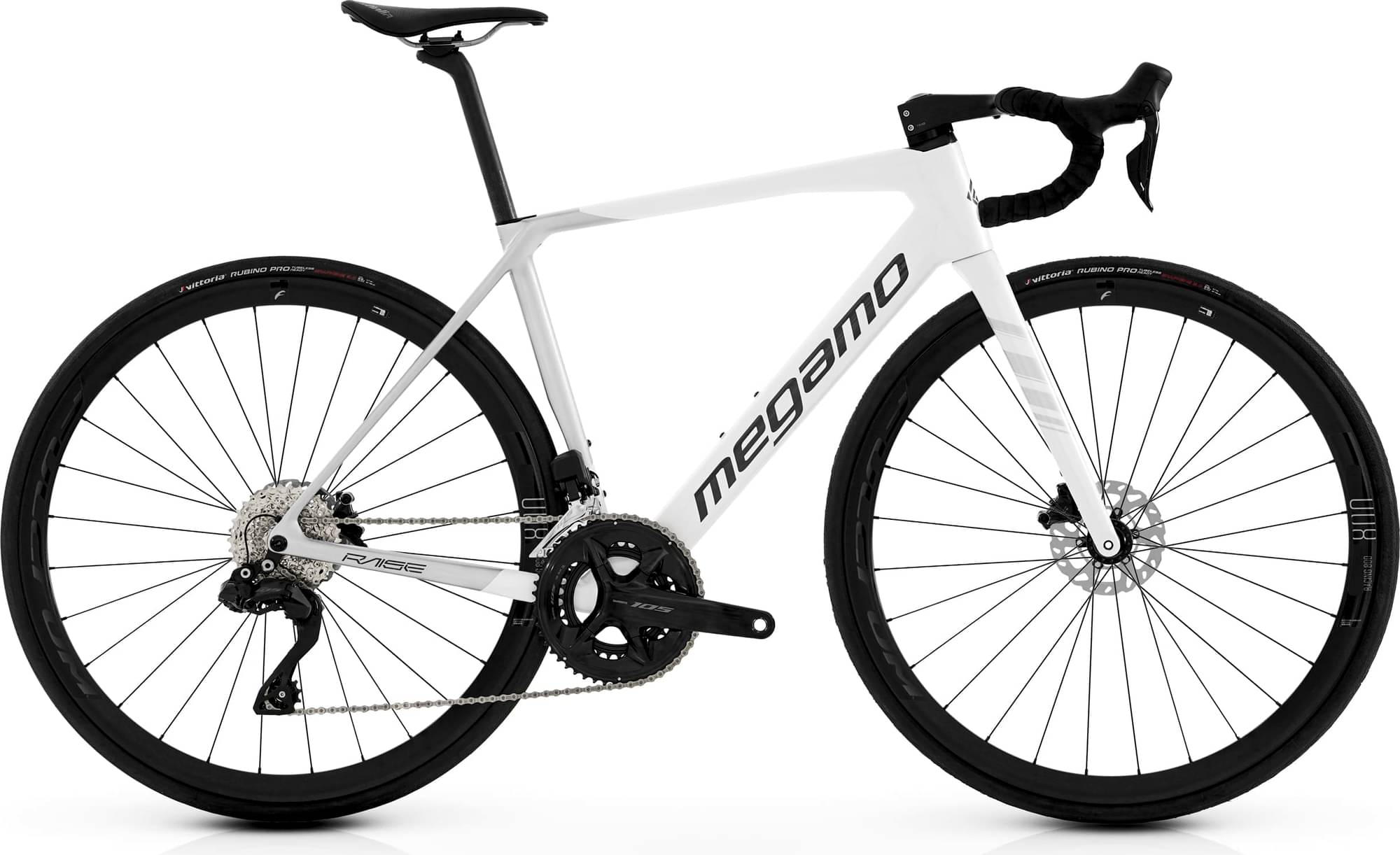

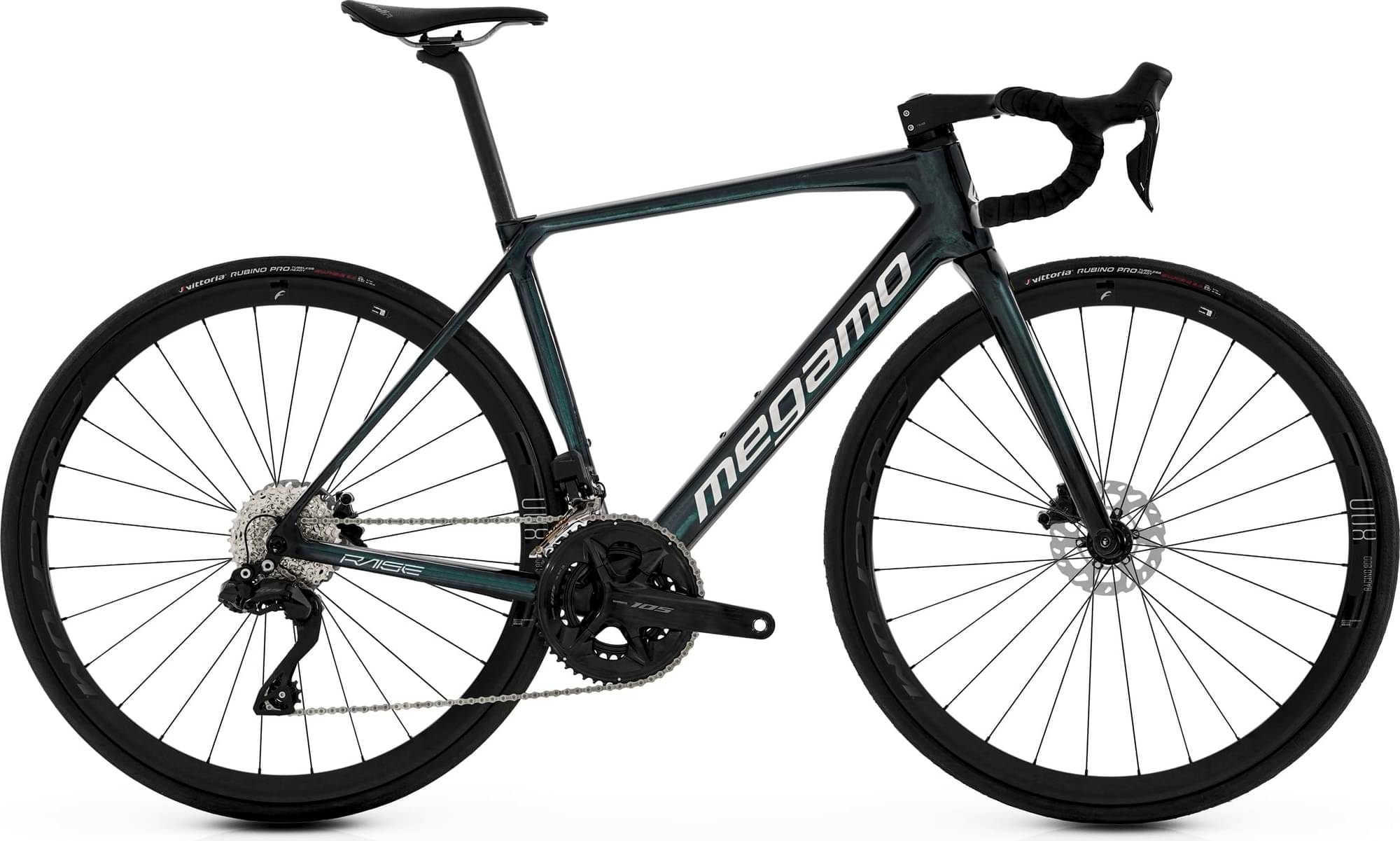

RAISE 15 SH12 is a Megamo Raise model. There are 31 bikes that carry this model name. Check out the entire range from 2024 of this model, by clicking this link.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Race bikes average price
If you want an acceptable Race bike you should know that the average price is 3350$. However, this doesn’t mean that if you spend less money on a Race bike, you couldn’t get a decent one. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Internal Cable Routing
It’s also important to mention the internal cable routing that this bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
RAISE 15 SH12 components
Fork material
The fork on this bike is made out of carbon, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels
When it comes to wheels, the RAISE 15 SH12 bike is equipped with the 700c aluminum model. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
For your safety, it is important to have quality breaks on your bike. Megamo RAISE 15 SH12 has Hydraulic Disc brakes installed. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
Sizes
RAISE 15 SH12 comes in 5 sizes, that range from 156 cm – 195 cm (5.12 ft – 6.4 ft). In short, it won’t be difficult to find the right one for you.
