Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminium -
Wheels 29" -
Travel Front 130mm -
Travel Rear 140mm -
Fork Suntour XCR 34
-
Groupset Deore, FSA -
Suspension Full -
Motor 250W 80Nm mid-drive -
Battery Integrated LI-ION Battery, 504 Wh -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Full Itegratted Battery, Alloy e-bike specific frame, 12x148 Boost, Wheel travel: 140 mm
Suspension Fork
Suntour XCR 34 E-Bike+, Travel 130mm, Boost 15x110, Mini-Fender Included
Rear Shock
Rock Shox Deluxe Select R 210x55 Debonair Tune
Drivetrain
Rear Derailleur
Shimano Deore 5120 10s
Shift Levers
Shimano Deore 4100 10s
Cassette
Shimano Deore 4100 11-46t
Crank
FSA 36t
Wheels
Front Hub
Boost System 15x110 12x148, E-Bike+
Rear Hub
Boost System 15x110 12x148, E-Bike+
Rims
29 Ready 25
Tires
29x2,2
Brakes
Brakes
Shimano hydraulic disc MT200, 180mm
Cockpit
Stem
3D Forged Alloy, Ext.: 60-70-90 mm, Rise: ±7º
Handlebar
Alloy Butted 31,8x780 mm, Rise: 12 mm, Back Sweep: 6º
Headset
FSA Orbit 1,5 E ZS 1-1/8” 1,5”
Seat
Saddle
Megamo Specific E-Bike+ Saddle
Seatpost
Megamo 31,6mm
Motor & Battery
Motor
Central Motor DP, 80Nm, 250W, Torque Sensor
Battery
Integrated LI-ION Battery, 504 Wh
Remote
LCD Screen panel
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.549 mm | 1.494 mm | 1.409 mm |
| Stack | 632 mm | 632 mm | 655 mm |
| Reach | 408 mm | 423 mm | 465 mm |
| Top Tube Length | 580 mm | 595 mm | 645 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° |
| Head Tube Angle | 66 ° | 66 ° | 66 ° |
| Head Tube Length | 140 mm | 140 mm | 165 mm |
| Chainstay Length | 475 mm | 475 mm | 475 mm |
| Wheelbase | 1210 mm | 1225 mm | 1276 mm |
| Rear Travel | 140 mm | 140 mm | 140 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
Model Overview

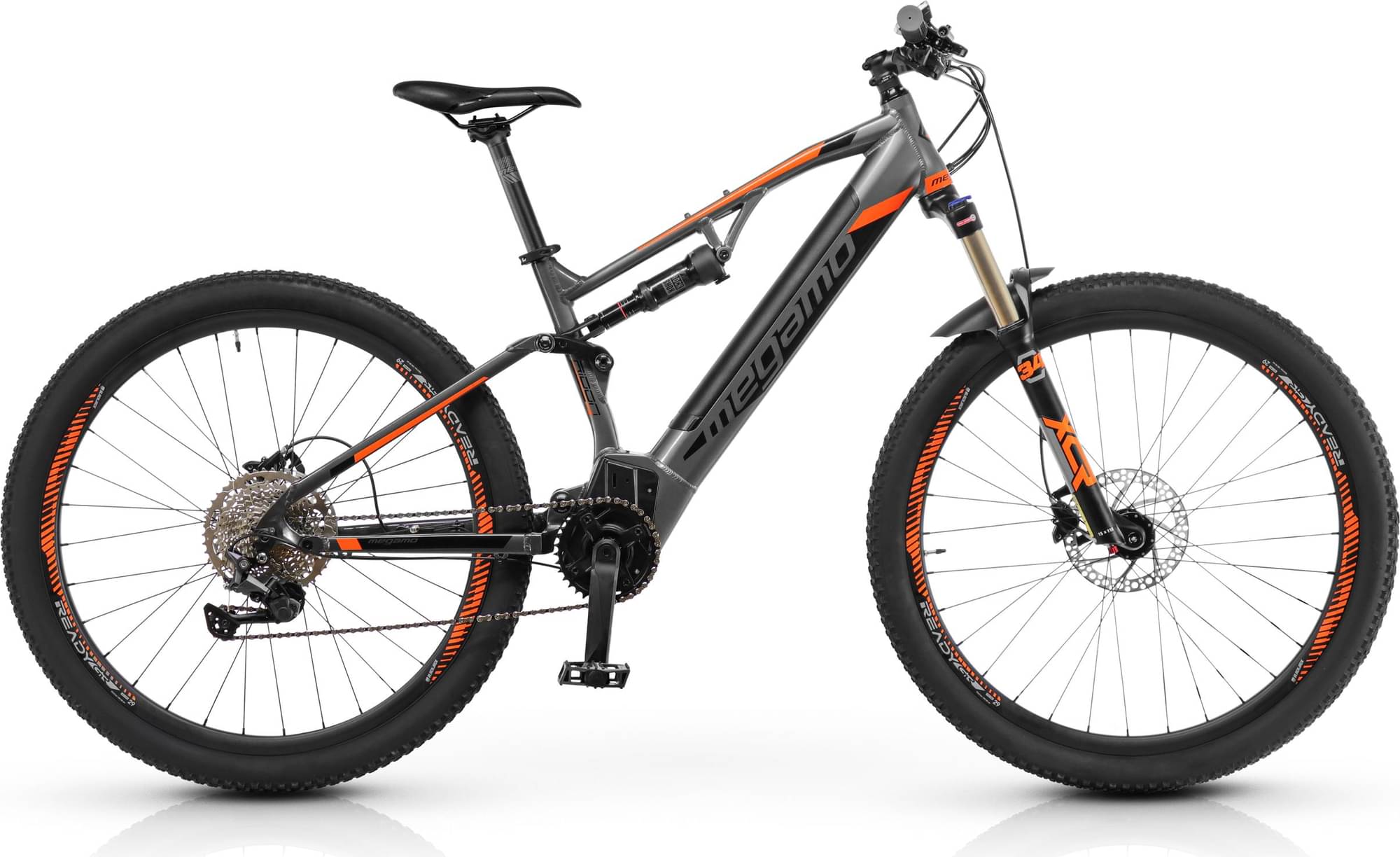

RIDON FS is part of the Megamo E Ridon model. Megamo launched 14 e-bikes of this model so far. Take a sneak peek at all Megamo E Ridon e-bikes models from 2022, by clicking here.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Trail e-bikes average price
According to our math, the average price for a trustworthy Trail e-bike is 3365$. However, even if your budget is less than the average, you might still be able to get a top-quality Trail e-bike. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
RIDON FS components
Fork
The fork installed on this bike is the Suntour XCR 34 model. The travel on this model is 130mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Rear Shock
As for the rear shock, this e-bike has the Rock Shox Deluxe Select R 210×55 Debonair Tune model, with a travel of 140mm. Rear shocks improve riding comfort and give you greater control over all terrains. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels
When it comes to wheels, the RIDON FS e-bike is equipped with the 29″ aluminum model. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, the 29″ wheels will add a little more weight to the e-bike itself.
Brakes
When you want to stop the bike in time, the brakes are vital. The RIDON FS has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Sizes
This e-bike is available in 3 sizes. They vary from 158 cm – 187 cm (5.18 ft – 6.14 ft). In short, you can easily find one that suits you.
